296 Keysight CXG, EXG, and MXG X-Series Signal Generators Service Guide
Replacement Parts
Hardware
Front Panel

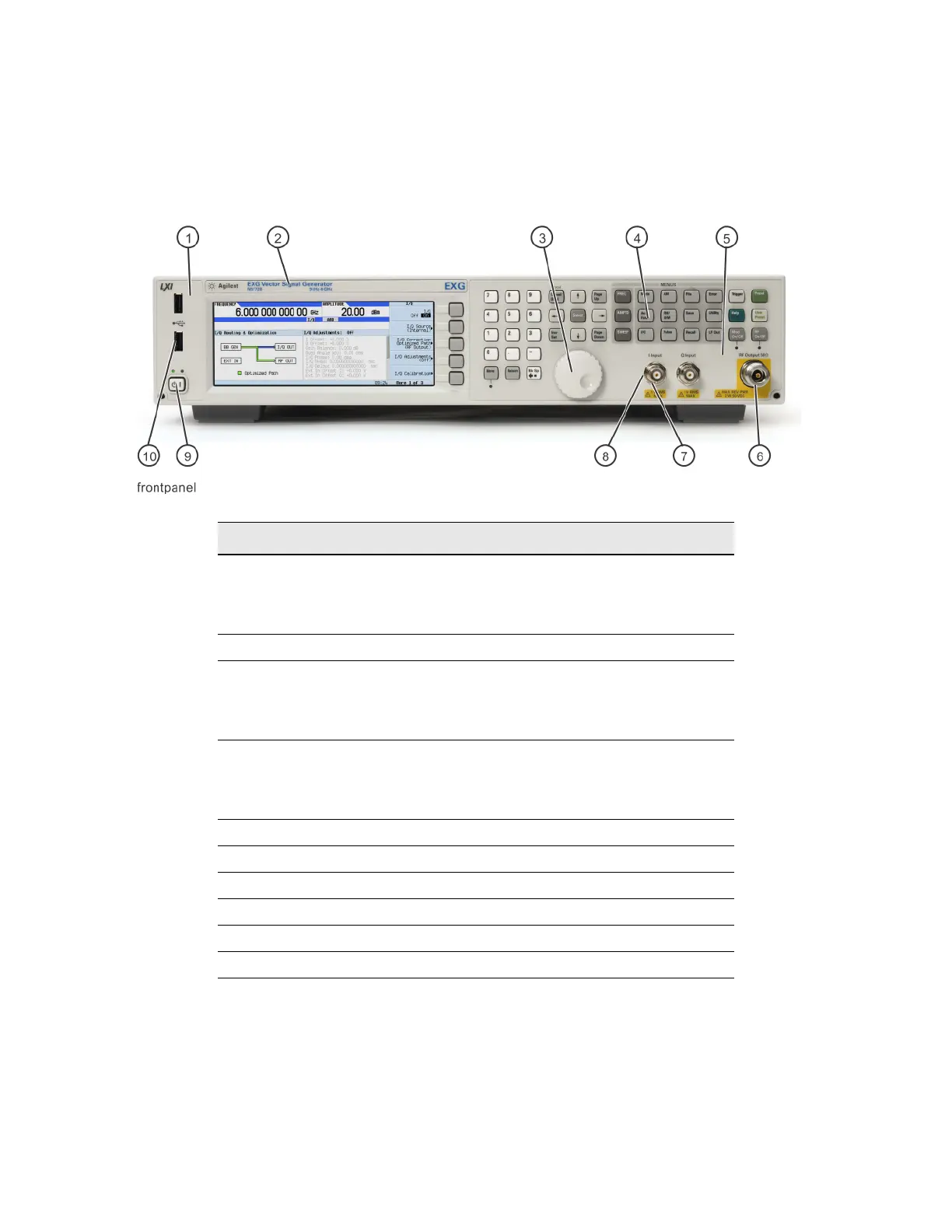

Figure 14-1 Front Panel View
Item Description Part Number
1 A6MP3, Overlay, Front Panel left
light color
dark color
N5180-80033
N5180-80071
2Nameplate n/a
3A6MP5, RPG Knob
light color
dark color
W1312-40017
W1312-40179
4A6MP1, Main Keypad
light color
dark color
N5180-40011
N5180-40018
5 A6MP2, Overlay, Main Keypad see Table 14-1
6 RF Connector see Table 14-1
7Nut-Hex 2950-0035
8Washer 2190-0102
9A6A3, Power Switch N5180-60410
10 A6A2, USB Board N5180-60411
