Keysight CXG, EXG, and MXG X-Series Signal Generators Service Guide 325
Replacement Parts
Assemblies and Cables

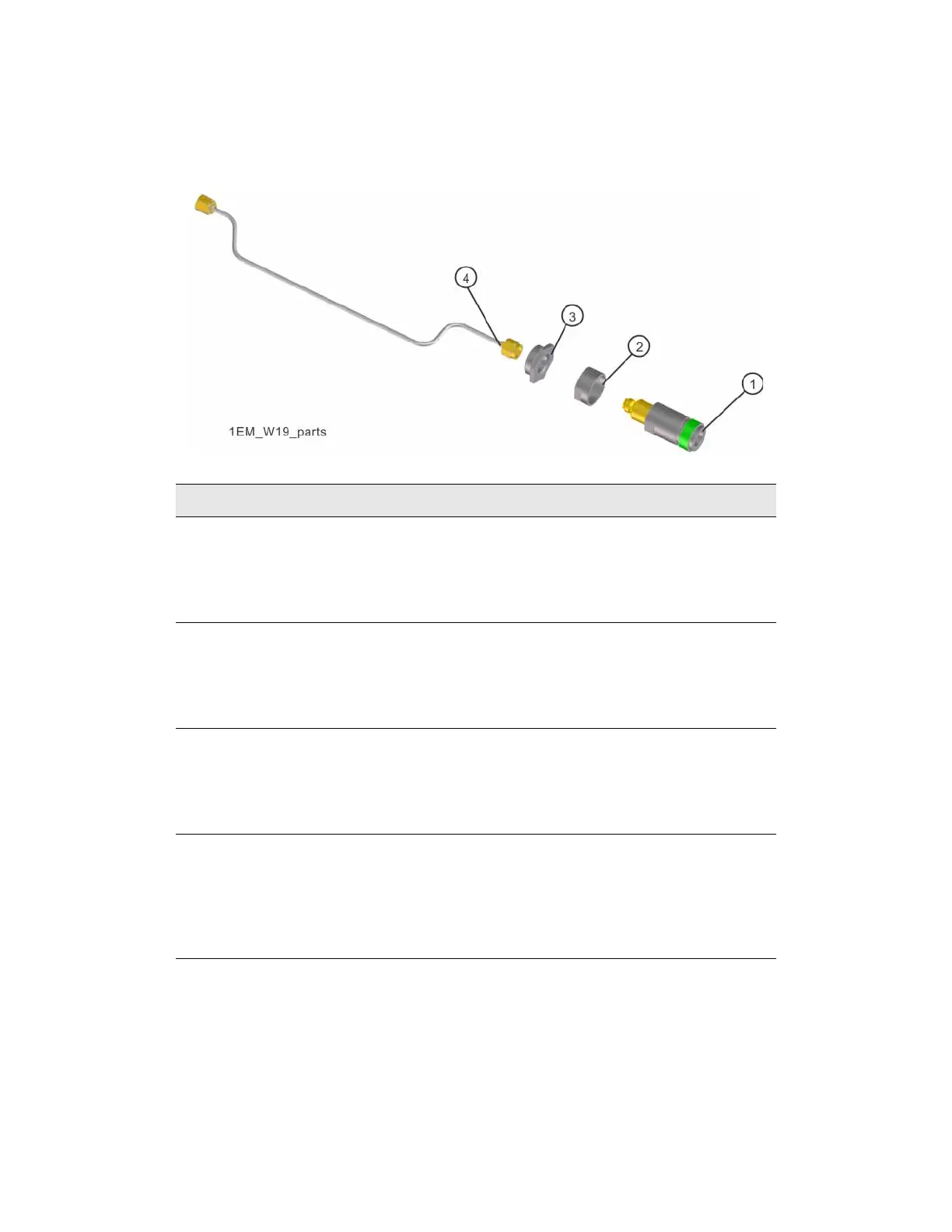

Figure 14-24 Rear Panel RF Connector/Spacer w/ W19 Semi-Rigid Cable Assembly Parts
N5173B/83B
Item Description Part Number
1 J1 Rear Panel RF Output Connector
Type-N Female
3.5 mm Female
2.4 mm Female
1250-3968
08673-60040
5063-1700
2Spacer
Type-N Output Connector
3.5 mm Output Connector
2.4 mm Output Connector
N5180-20056
E8251-20068
None
3Adapter
Type-N Output Connector
3.5 mm Output Connector
2.4 mm Output Connector
N5180-20062
N5180-20061
N5180-20060
4 W19, Semi-Rigid Cable, A3 RF Assy J4000 to Rear
Panel RF Output (Option 1EM)
N5173B, N5183B - Type-N Output Connector
N5173B, N5183B - 3.5 mm Output Connector
N5173B, N5183B - 2.4 mm Output Connector
N5180-20218
N5180-20216
N5180-20213
