324 Keysight CXG, EXG, and MXG X-Series Signal Generators Service Guide
Replacement Parts
Assemblies and Cables

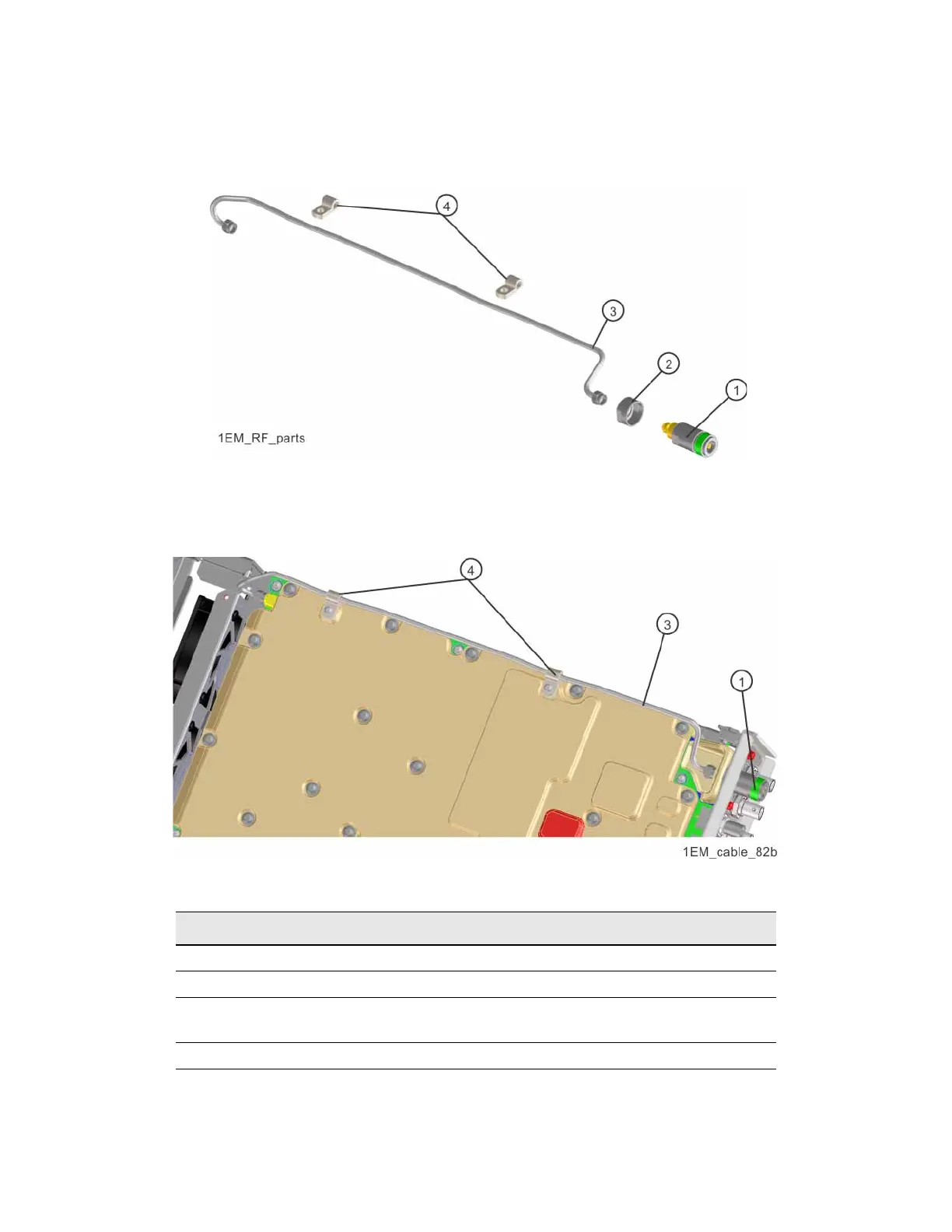

Figure 14-22 Rear Panel RF Connector/Spacer w/ W19 Semi-Rigid Cable Assembly Parts
N5171B/72B/81B/82B
Figure 14-23 Location of W19 and 1EM Rear Panel RF Connector-
N5171B/72B/81B/82B
Item Description Part Number
1 J1 Rear Panel RF Output Connector, Type-N Female 1250-3968
2 Spacer, Type-N Output Connector N5180-20056
3 W19, Semi-Rigid Cable, A3 RF Assy J4000 to Rear
Panel RF Output (Option 1EM)
N5180-20106
4Clamp (2) 1400-1265
