Keysight CXG, EXG, and MXG X-Series Signal Generators Service Guide 321
Replacement Parts
Assemblies and Cables

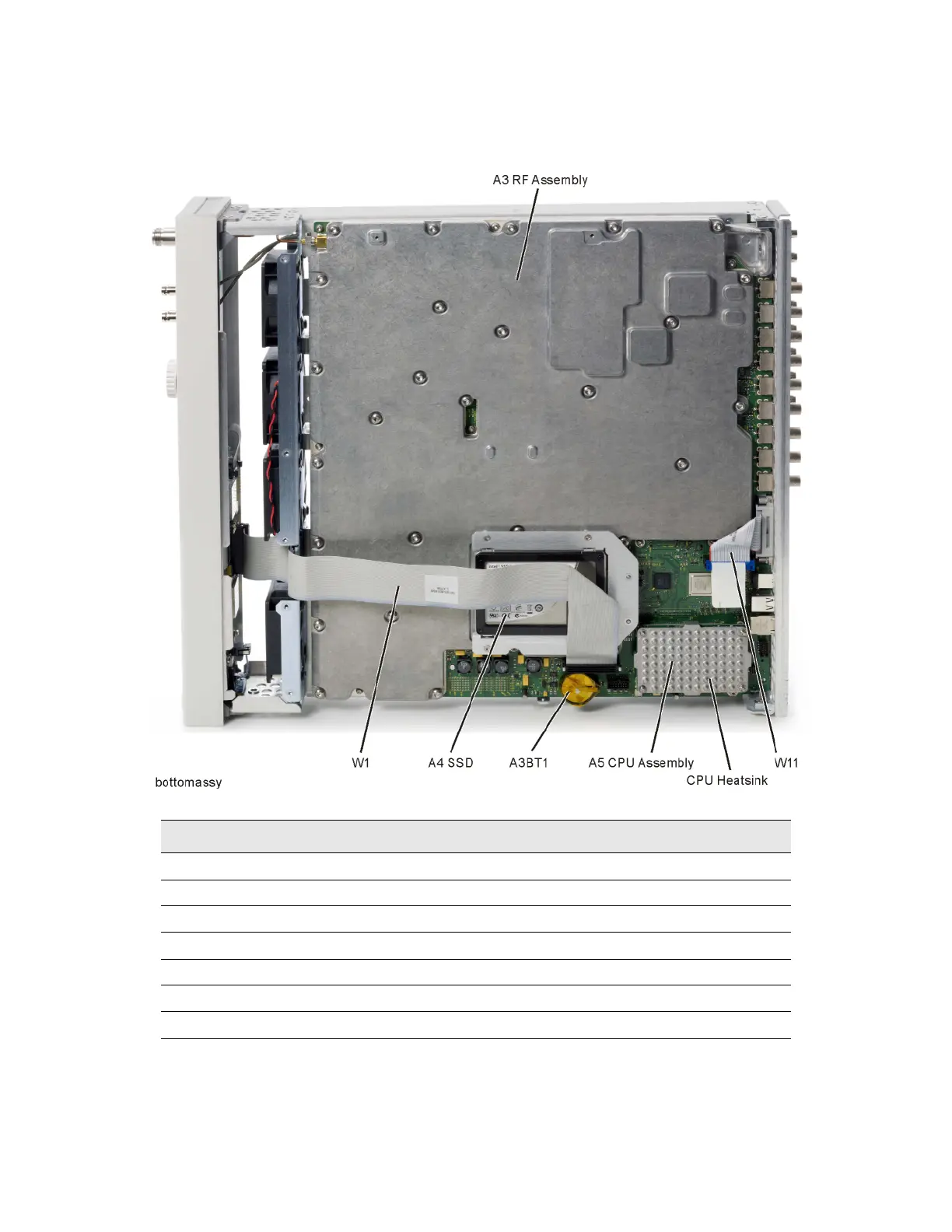

Figure 14-19 Assemblies Bottom View - All Models (N5182B shown)
Description Part Number
A3 RF Assembly see Table 14-3
A3BT1 Battery 3V 620 ma-HR Ll Manganese Dioxide 1420-0533
A4 Solid State Disk Drive Assembly N5166B, N5172B, N5182B N5180-60426
A5 CPU Assembly and Thermal Pad N5180-60427
A5MP1 CPU Heatsink and Thermal Pad N5180-60443
W1, Ribbon Cable, A3 RF Assy P5 to A6A1 Front Panel Interface J10 N5180-60183
W11, Ribbon Cable, Rear Panel GPIB to A3 RF Assy P4 N5180-60181
