Keysight Technologies N5172B EXG Service Guide

310 Keysight CXG, EXG, and MXG X-Series Signal Generators Service Guide
Replacement Parts
Assemblies and Cables

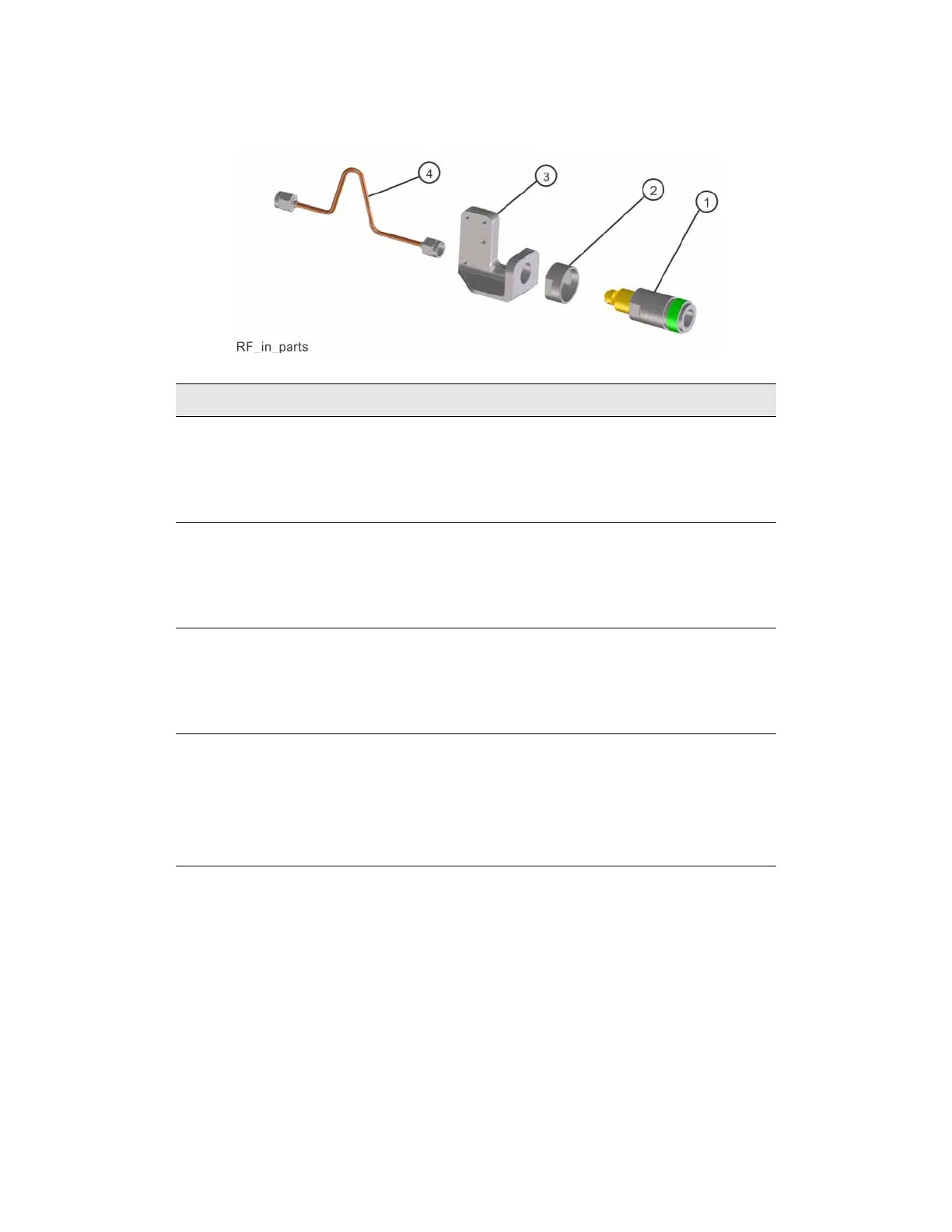

Figure 14-13 Front Panel RF Connector/Spacer/Bracket w/ W9 Semi-Rigid Cable Assembly Parts
Item Description Part Number
1 J1 Front Panel RF Output Connector
Type-N Female
3.5 mm Female
2.4 mm Female
1250-3968
08673-60040
5063-1700
2Spacer
Type-N Output Connector
3.5 mm Output Connector
2.4 mm Output Connector
N5180-20056
E8251-20068
None
3Bracket
Type-N Output Connector
3.5 mm Output Connector
2.4 mm Output Connector
N5180-20114
N5180-20115
N5180-20116
4 W9, Semi Rigid Cable, A3 RF Assy J4000 to RF Output
N5166B, N5171B, N5172B, N5181B, N5182B
N5173B, N5183B - Type-N Output Connector
N5173B, N5183B - 3.5 mm Output Connector
N5173B, N5183B - 2.4 mm Output Connector
N5180-20175
N5180-20217
N5180-20215
N5180-20212
