358 Keysight CXG, EXG, and MXG X-Series Signal Generators Service Guide
Assembly Replacement
A3 RF Assembly (N5166B, N5172B, and N5182B)

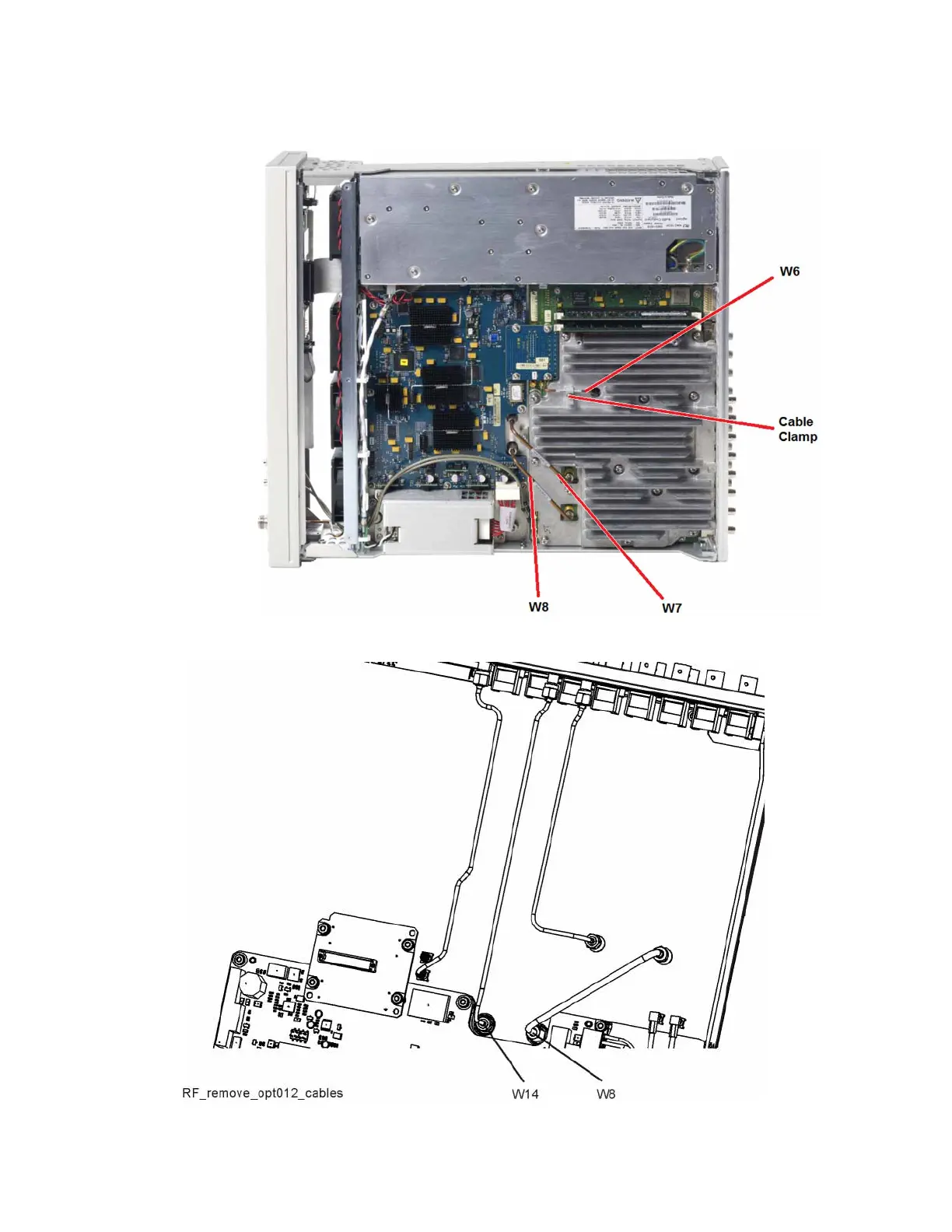

Figure 15-12 Cable Removal for RF Assembly (std) - N5166B, N5172B, and N5182B
Figure 15-13 Cable Removal for A3 RF Assembly, Option 012 - N5172B and N5182B
