48 Keysight N5991 Test Automation Software Platform Getting Started Guide
5 Using the Software
respective procedure. However, the individual worksheets or pages will be
lost when the N5991 main window is closed, unless they have been saved
by the user.
If a test or calibration procedure was run more than once, the list of results
is visible below the particular procedure after expanding the tree below
this procedure (see Figure 25).

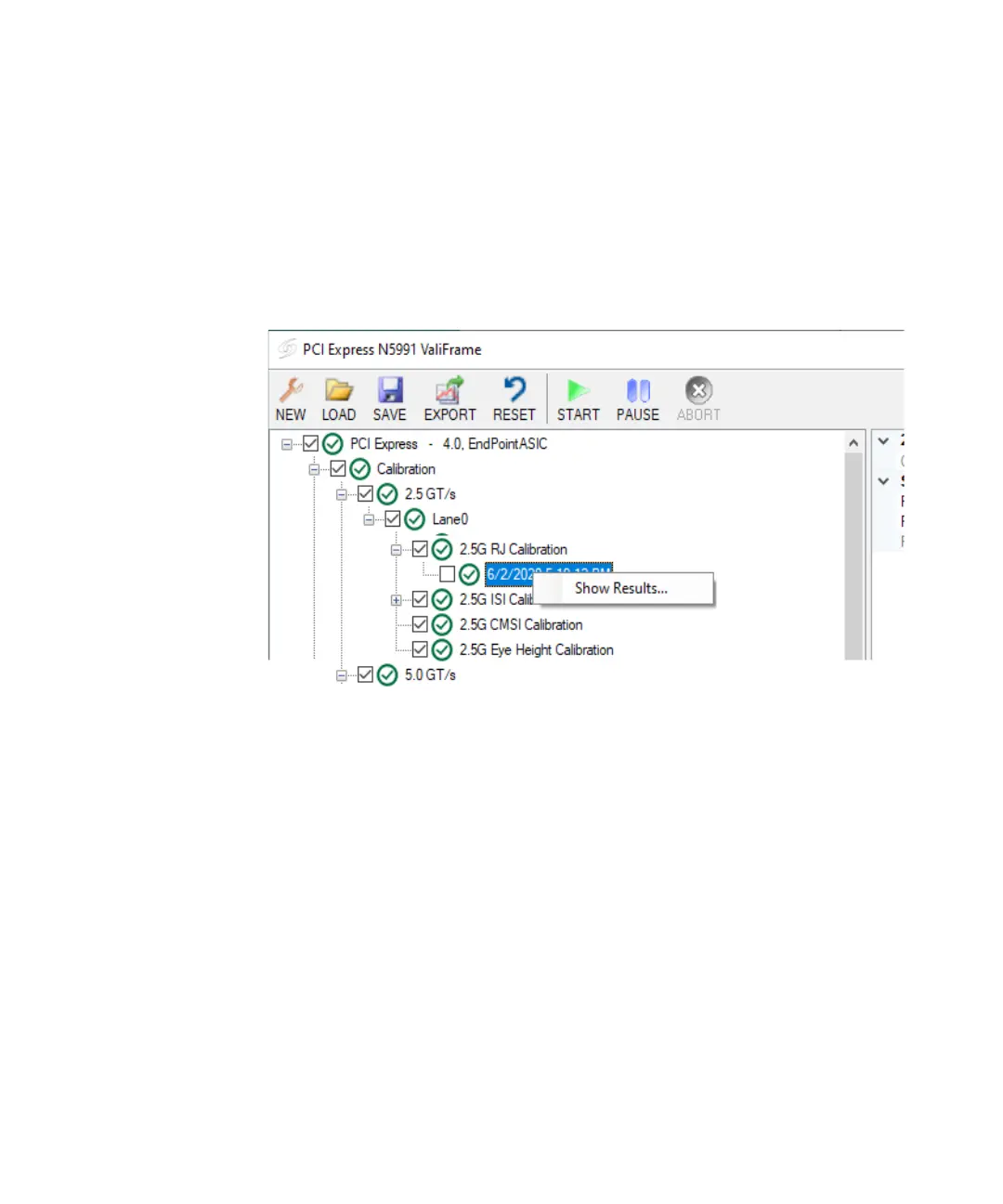

Figure 25 Selecting test results
Results Workbook
All calibration and test data worksheets can be saved in a workbook by
clicking on the EXPORT button on the top at any time. It is recommended
that this step is carried out at least at the end of each N5991 run. If the
calibration and test procedures are conducted several times during the
same N5991 run, the result worksheets will combine only the most recent
executions in the workbook.
An example of workbook is show in Figure 26:
