Repair Guide 6
Keysight N8262A Service Guide 109

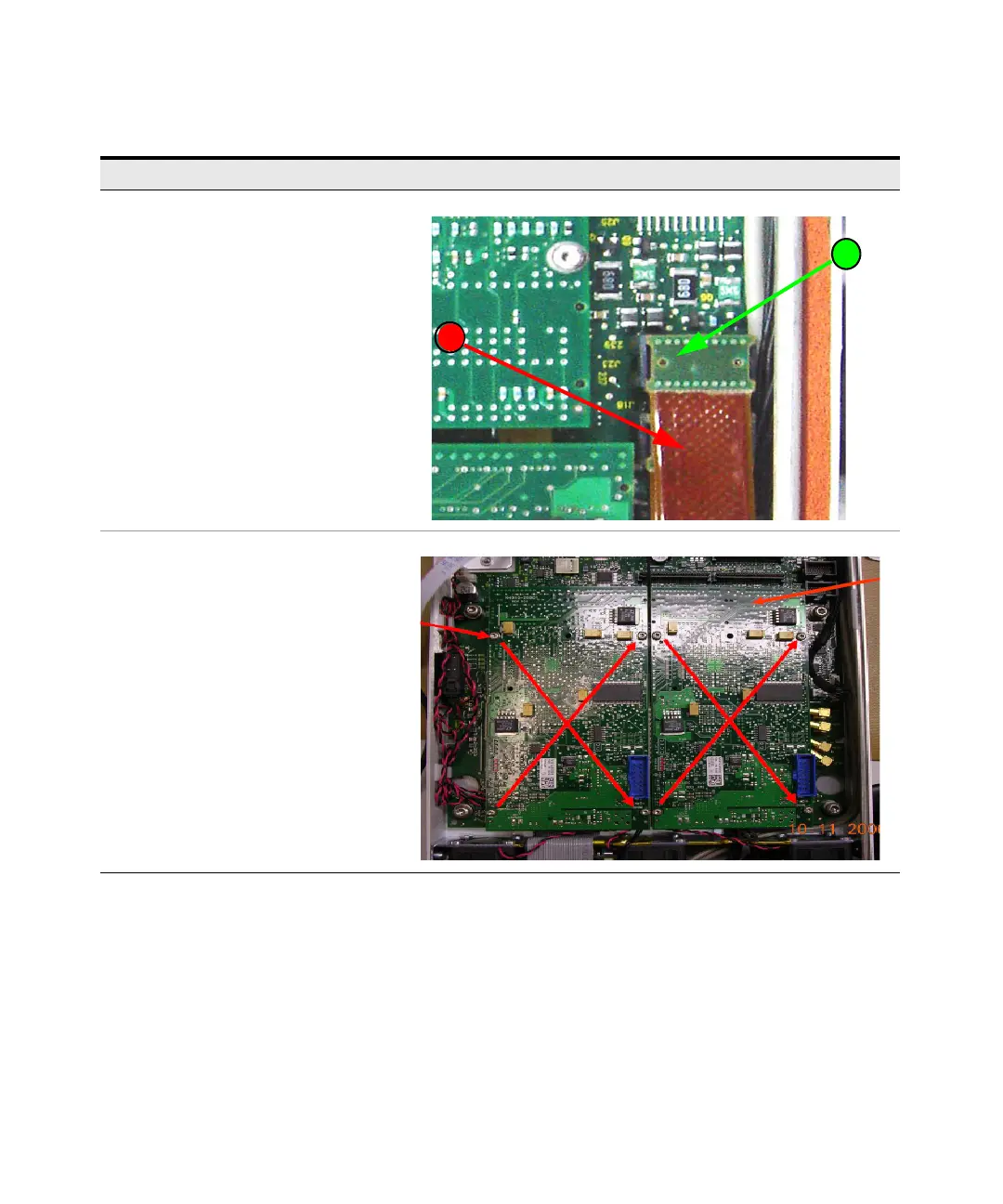

– Step 1: Lift and remove channel B flex cable
from J23.
– Step 2: Lift and remove channel A flex cable
from J18.
– Use a T8 Torx screwdriver bit to remove the
eight screws, which holds the measurement
to the mother board.
– Lift and remove the measurement board
assembly.
Note:
You will be able to remove the measurement
board assembly at this step.
Instructions Visual
To Next Page
