6 Repair Guide
96 Keysight N8262A Service Guide

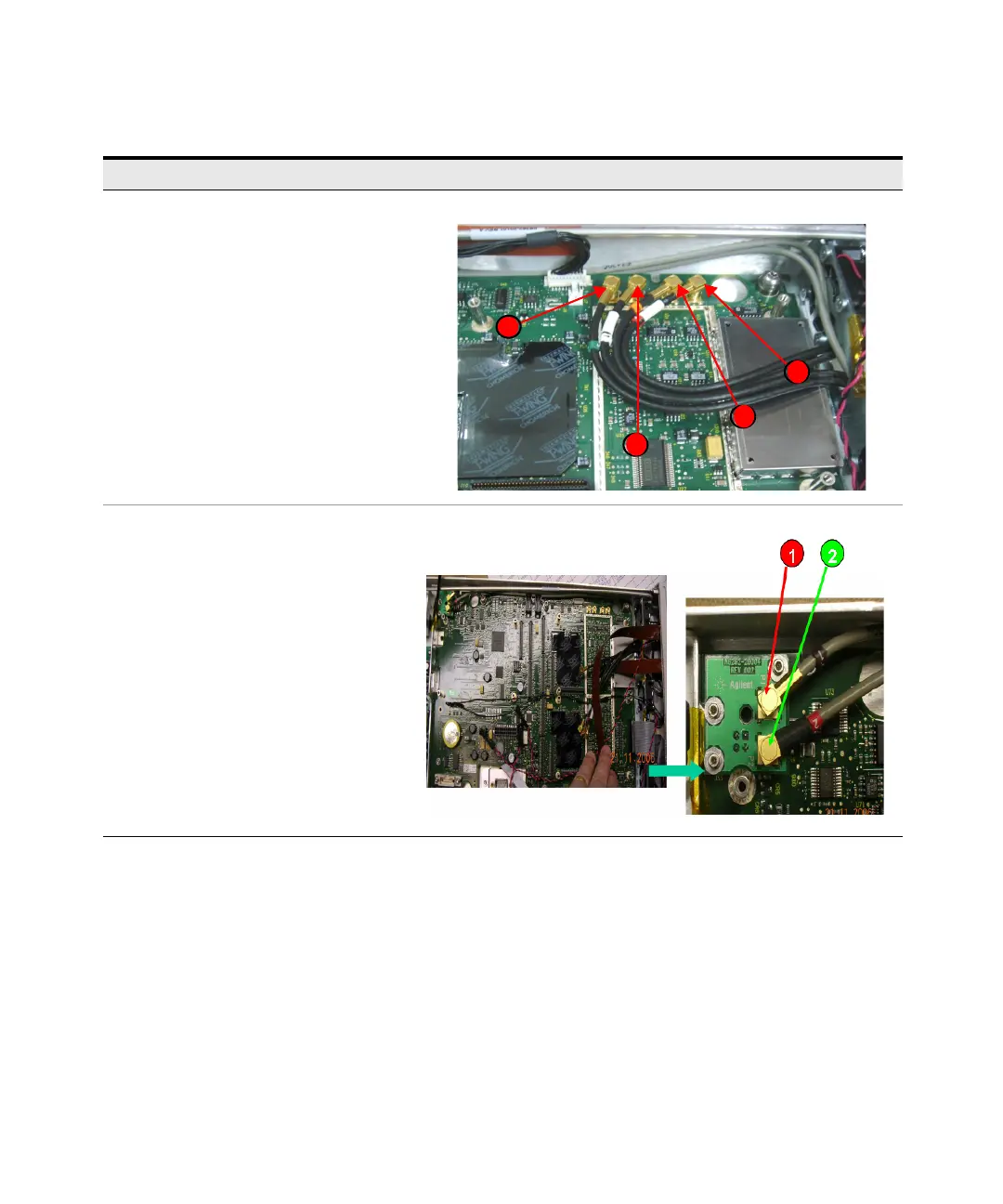

– Step 1: Lift and remove the top coaxial cable
labeled 2 (channel B) from J2.
– Step 2: Lift and remove the bottom coaxial
cable labeled 3 (channel B) from J3.
– Step 3: Lift and remove the top coaxial cable
labeled 4 (channel A) from J4.
– Step 4: Lift and remove the bottom coaxial
cable labeled 5 (channel A) from J5.
Note:
These coaxial cables originally routed under the
measurement board assembly.
– Step 1: Lift and remove the coaxial cable
labeled 1 (trig. in) from P1.
– Step 2: Lift and remove the coaxial cable
labeled 2 (trig. out) from P2.
Note:
These coaxial cable are originally routed on the
right side of the chassis along the wall. See the
figure to the right for more details.
Instructions Visual
4
1
2
3
