Common Characteristic All Models
Typical Weight RP7931A, RP7932A, RP7941A, RP7942A: 60 lbs. (27.3 kg)
RP7933A, RP7935A, RP7936A, RP7943A, RP7945A, RP7946A: 70 lbs. (31.8 kg)

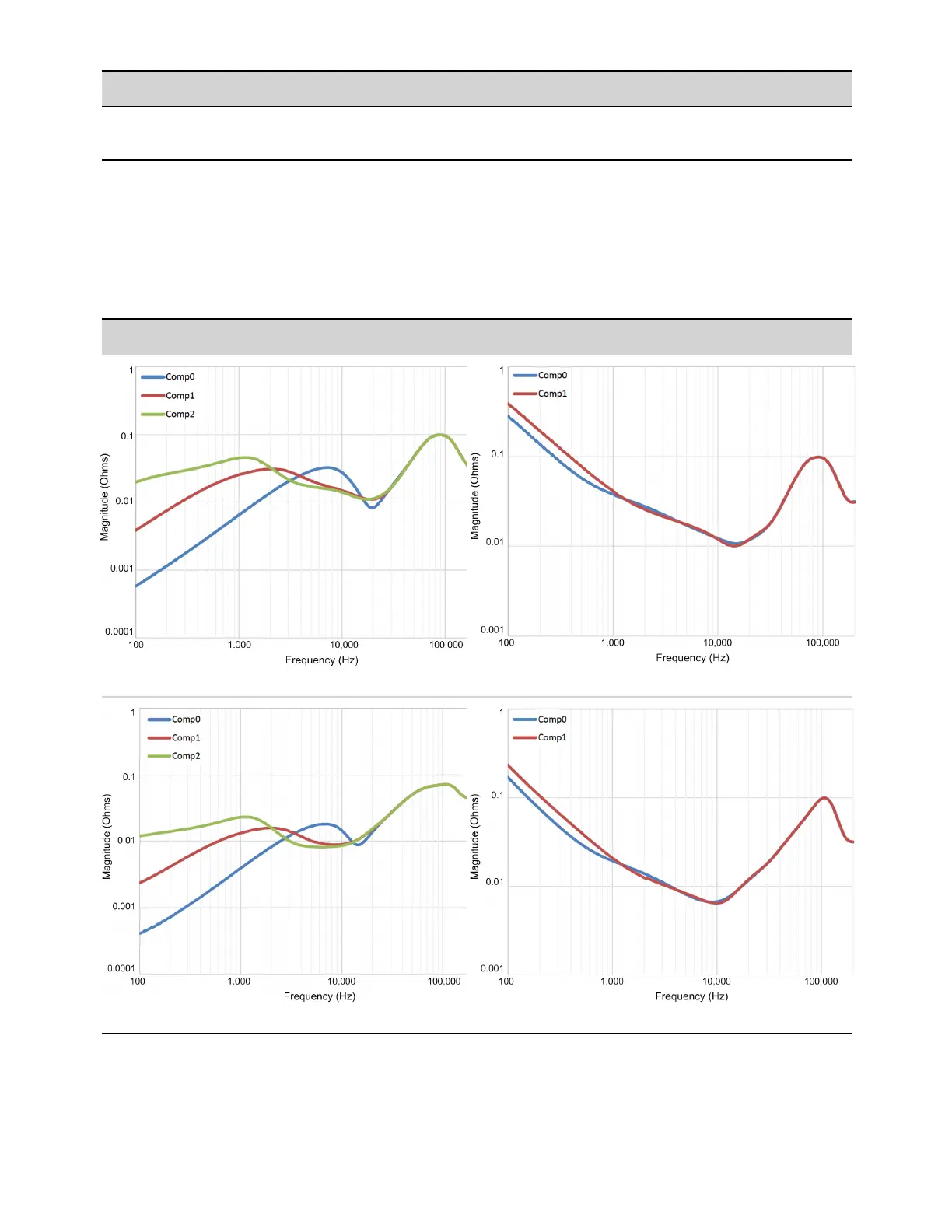

Output Impedance Graphs
The following graphs show the small signal output impedance of the compensation modes for voltage
priority and current priority modes. Impedances are captured when measuring at the load leads 6
inches away from the bus bars.
Voltage Priority Mode (20 V units) Current Priority Mode (20 V units)
20 V, 5 kW unit (@ 10 V, 200 A 6" leads, local sense)
20 V, 5 kW unit (@ 10 V, 200 A,6"leads)
20 V, 10 kW unit (@ 10 V, 400 A, 6" leads, local sense) 20 V, 10 kW unit (@ 10 V, 400 A, 6" leads)
Keysight RP7900 Series Operating and Service Guide 39
1 Quick Reference
