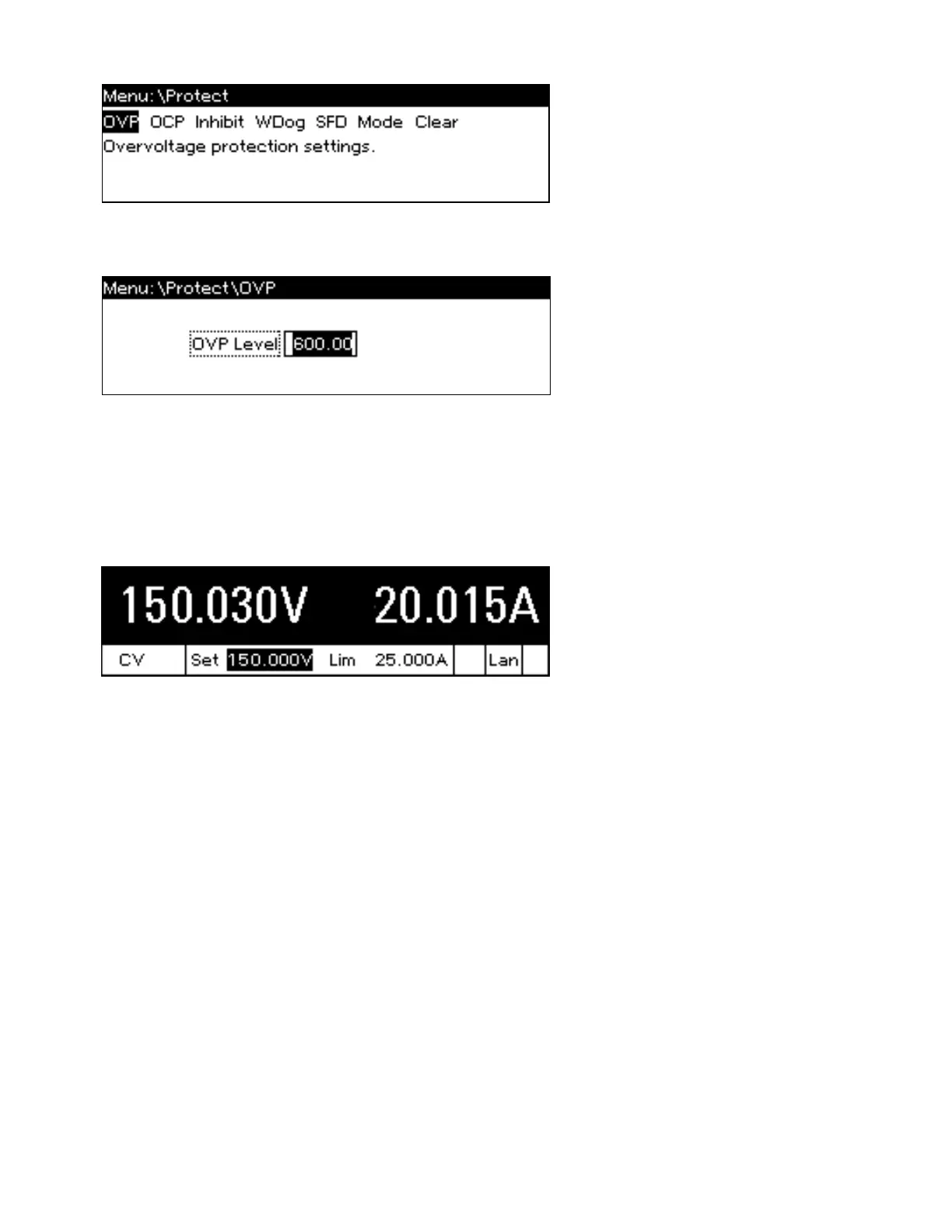

The default OVP setting for this model is 600 V. You can change the OVP setting using the numeric
entry keys and pressing Enter and Select. Press the Meter key to return to meter view.
Enable the Output
Use the On/Off key to enable the output. If a load is connected to the output, the front panel display
will indicate that it is drawing current. Otherwise, the current reading will be zero. The status indicator
shows the output’s status. In this case, "CV" indicates the output is in constant voltage mode.
For a description of the status indicators, refer to Front Panel Display at a Glance.
Use Built-in Help System
Press the Help key at the lowest menu level to display help information about the menu function
controls.
Whenever a limit is exceeded or any other invalid configuration is found, the instrument will display a
message, including Error code information.
Press Meter or Back to exit Help.
3 Getting Started
92 Keysight RP7900 Series Operating and Service Guide
