Excessive Dynamic Protection

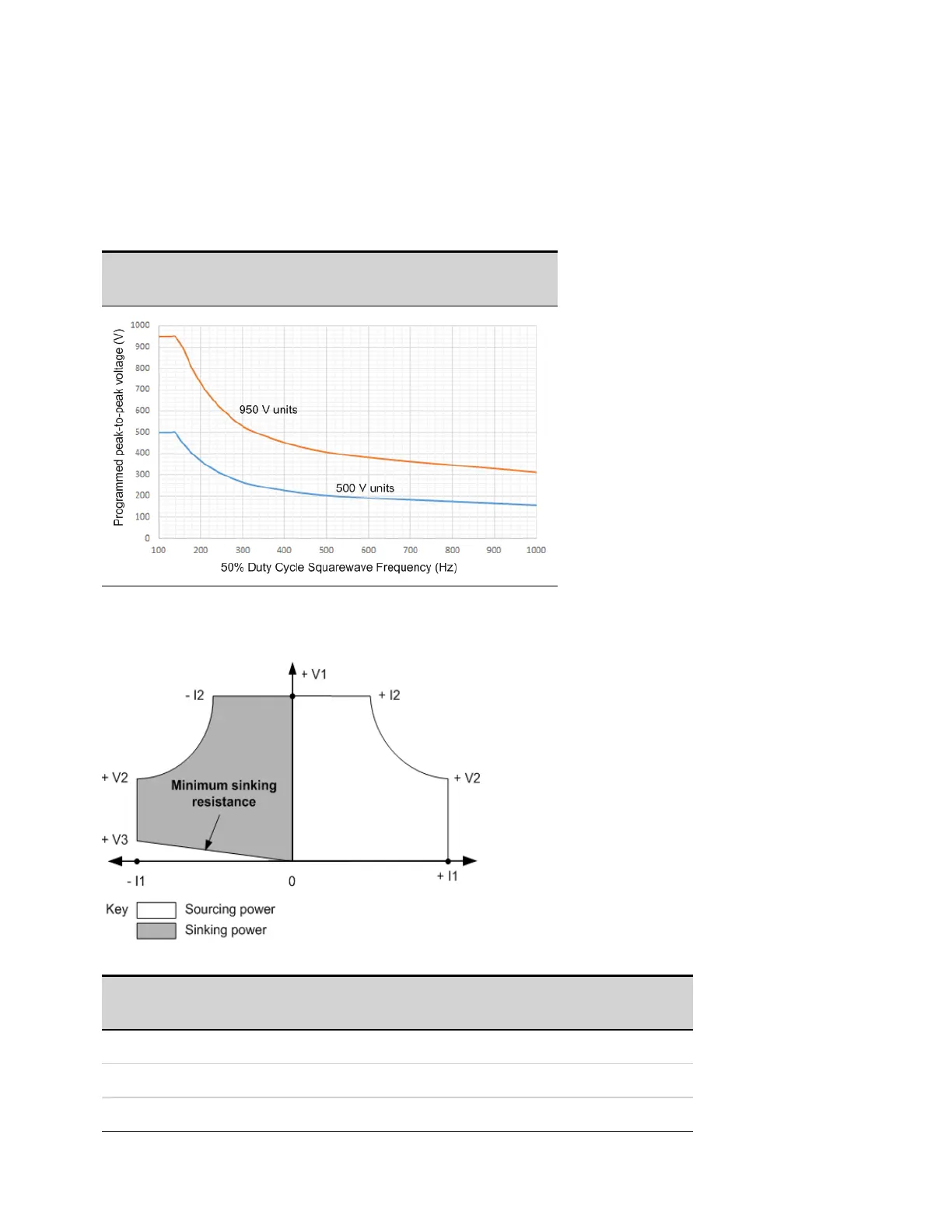

The following graph shows the square wave amplitude thresholds versus frequency with no load. In
the area above the indicated amplitude threshold, sustained generation of a square wave may engage
the excessive dynamic protection (EDP) function, which disables the output. EDP protection may be
engaged by programmed voltage changes, lists, Arbs, or load-induced voltage swings.
Maximum Peak-to-Peak Programmable Voltage
versus Square Wave Frequency
Output Quadrants
Model + V1 + V2 + V3 +/- I1 +/- I2 Minimum sink
resistance
RP7951A /RP7961A 500 V 250 V 8 V 20 A 10 A 0.4 Ω
RP7952A /RP7962A 500 V 250 V 8 V 40 A 20 A 0.2 Ω
RP7953A/RP7963A 950 V 500 V 16 V 20 A 10.5 A 0.8 Ω
Keysight RP7900 Series Operating and Service Guide 59
