Keysight Technologies RP7945A

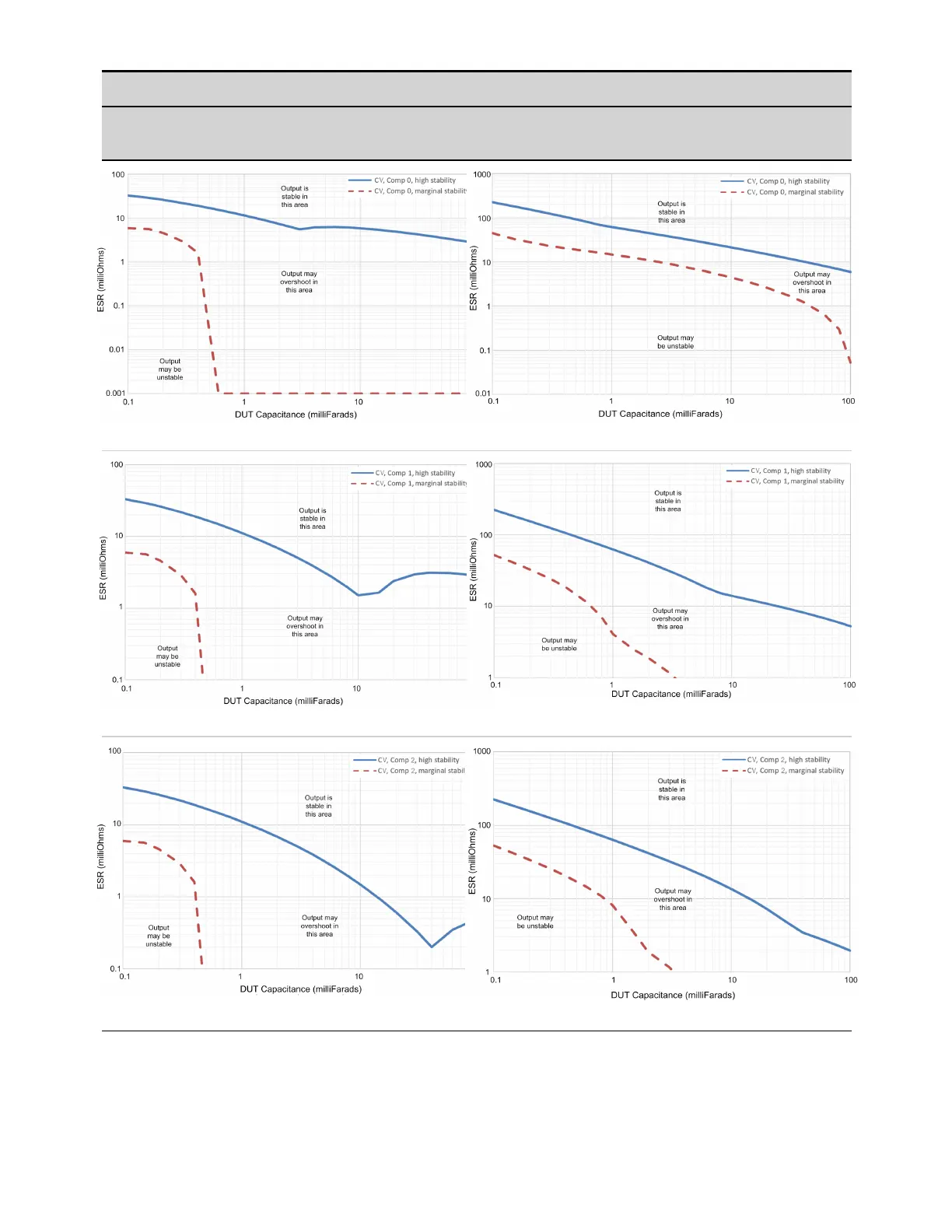

Minimum ESR vs. DUT Capacitance for 20 V, 10 kWunits
With local sensing and
DUT directly connected to bus bars
With remotesensing and
load leads around 3 μH/1 mΩ
20 V, 10 kW unit; comp 0
20 V, 10 kW unit; comp 0
20 V, 10 kW unit; comp 1
20 V, 10 kW unit; comp 1
20 V, 10 kW unit; comp 2
20 V, 10 kW unit; comp 2
Keysight RP7900 Series Operating and Service Guide 45
1 Quick Reference
