1 Getting Started
32 Keysight 2050/60 X-Series User’s Guide
5 Set the PC IP address and subnet mask. Go to Start > Control Panel > Network and Internet
> Network and Sharing Center > Local Area Connection > Properties and set the following
properties.

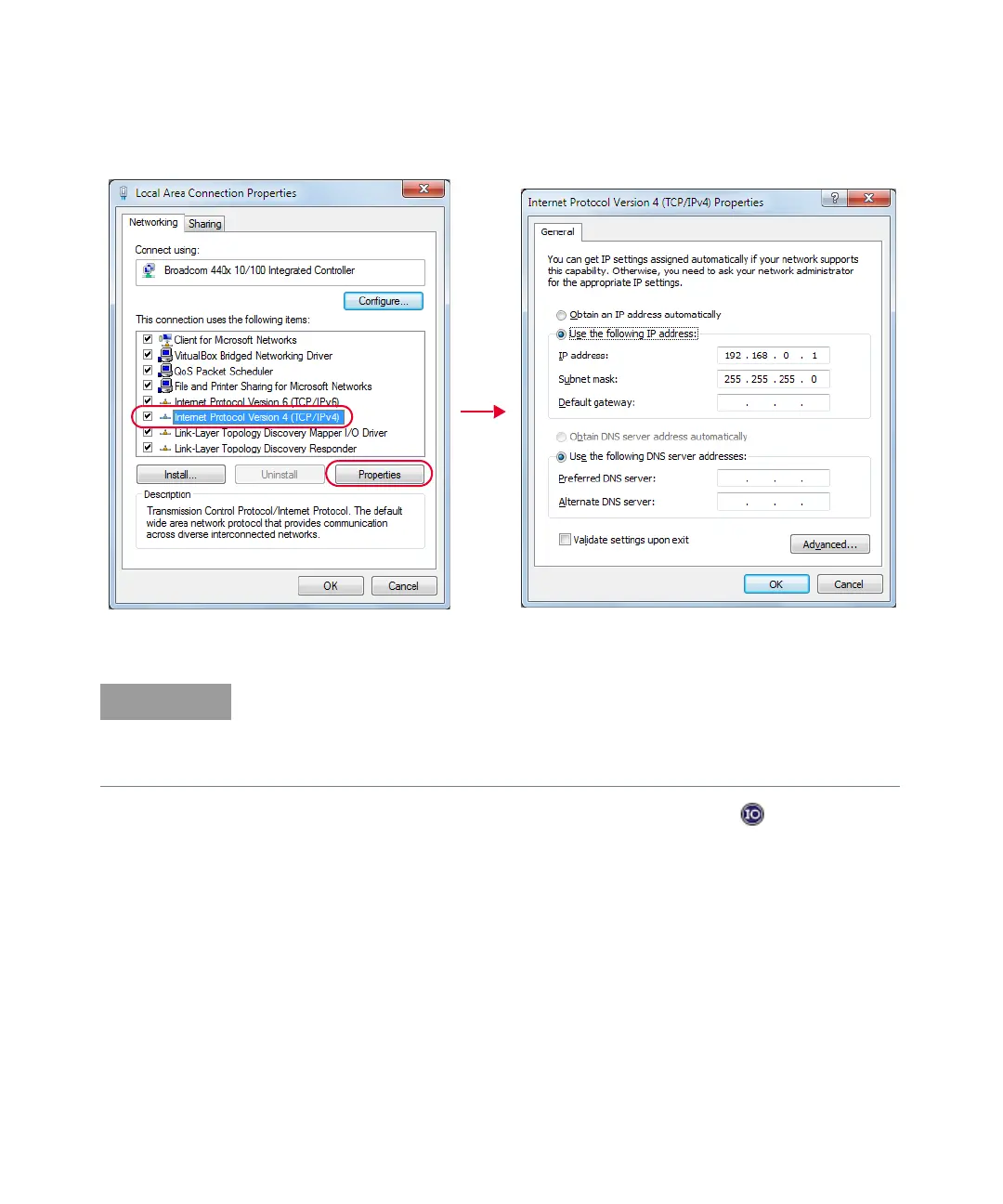

Figure 1-16 Set manual LAN settings on the PC
6 Launch the Keysight Connection Expert by selecting the IO icon ( ). Auto-locate the
L2051XA/52XA/53XA/61XA/62XA/63XA as shown in Figure 1-17. Click Rescan to start
searching.
– For the new network settings to become effective, you must first power cycle the
L2051XA/52XA/53XA/61XA/62XA/63XA.
– The static IP addresses for the host PC and the L2051XA/52XA/53XA/61XA/62XA/
63XA must be different from the IP address of the PoE injector to avoid conflict.
