Keysight M8050A High-Performance BERT Getting Started Guide 19
Introduction 1

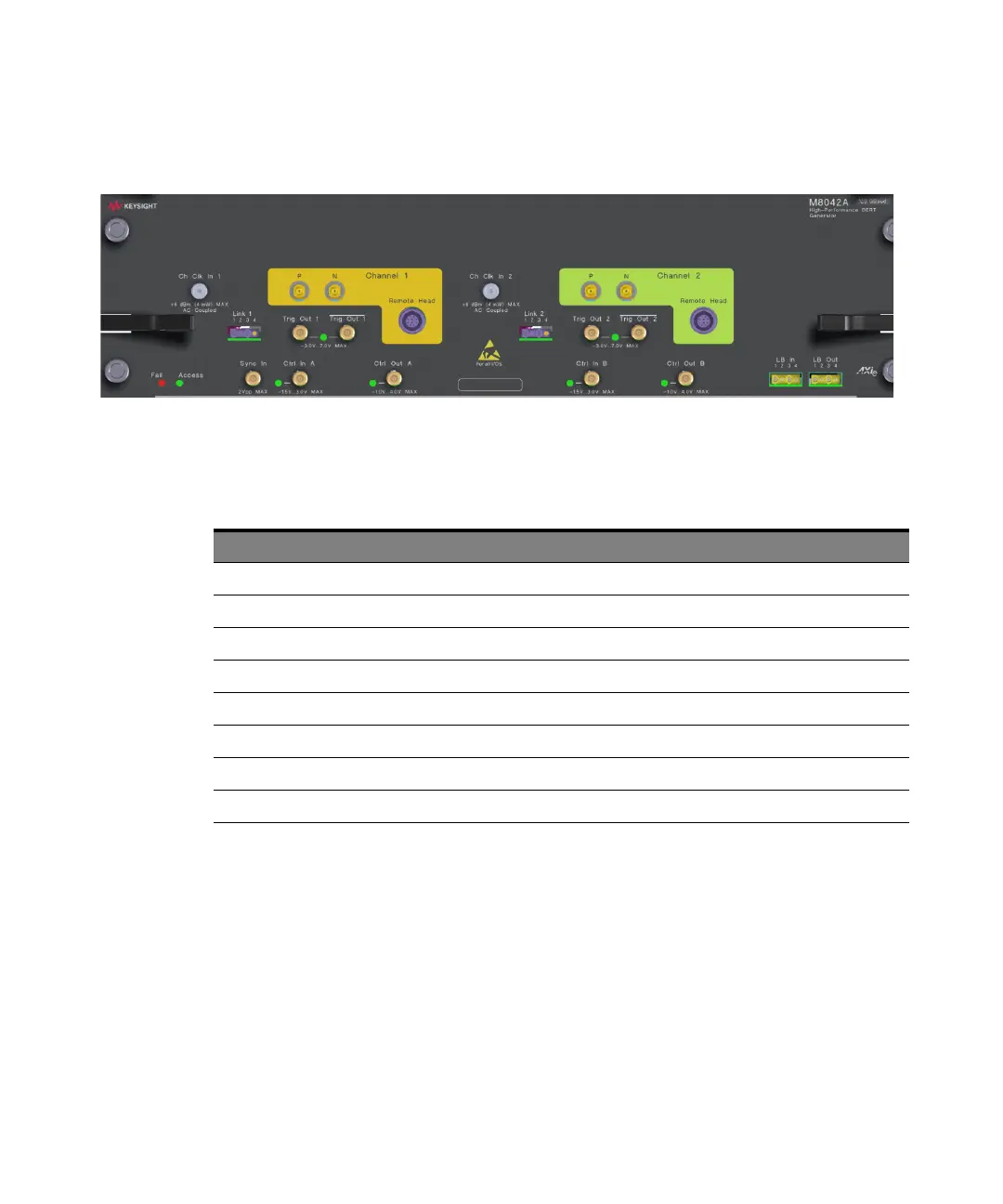

Figure 6 M8042A two channel version
Table 5 M8042A Front Panel Connectors
Connector Description
P, N, Remote head channel 1/2 For connection to remote head
Ch Clk In 1/2 Clock from M8009A
Link 1/2 For link training and synchronization with other modules
Sync In Sync from M8009A
Trig Out 1/2 Trigger output 3.5 mm (f)
Crtl In A/B Trigger sequencer and error insertion 3.5 mm (f)
Crtl Out A/B Generates a pulse or static high/low if used from sequencer 3.5 mm (f)
LB In/Out Local bus connection to next chasis
