Keysight M8050A High-Performance BERT Getting Started Guide 41
Basic Setup for M8050A 2

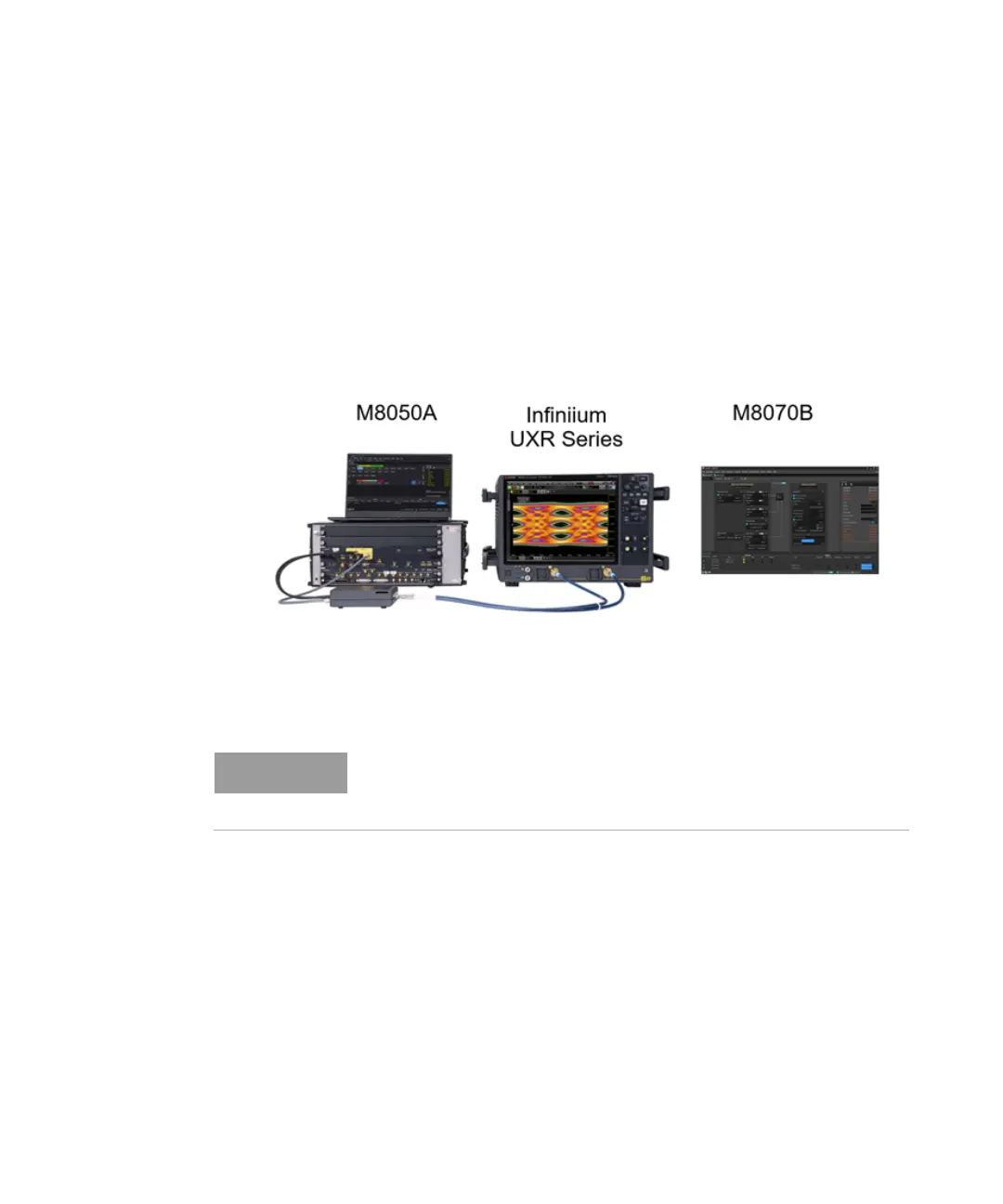

Step 14 - Using UXR Series Real-Time Oscilloscope as Analyzer
The M8070B system software supports certain real-time oscilloscopes to
measure BER of NRZ signals and BER as well as SER of PAM4 signals. The
real-time oscilloscope is completely controlled from M8070B to capture a
signal and convert into a pattern stream that is then uploaded into the
M8070B for comparison with an expected pattern and provide BER/SER
measurements.
For more details on how to control UXR-Series Real-Time Oscilloscope
from M8070B, refer to Keysight M8070ADVB Advanced Measurement
Package User Guide.
In order to support the UXR-Series Real-Time Oscilloscope, ensure that
you have installed Advanced Measurement Package (M8070ADVB) in the
M8070B system software.
