Keysight M8050A High-Performance BERT Getting Started Guide 33
Basic Setup for M8050A 2
Preparing Two-Channel System
For a two-channel system, you would need a M8042A pattern generator
(two channels) and M8009A clock module.
Follow the given steps to make the two-channel system:
1 Connect M8009A Channel Clock Out 1 port with the M8042A Channel
Clock In 1 port using a semi-rigid cable.
2 Connect M8009A Channel Clock Out 2 port with the M8042A Channel
Clock In 2 port using a semi-rigid cable.
3 Connect M8009A Sync Out A port with the M8042A Sync In port using
a 3.5 mm sync cable.

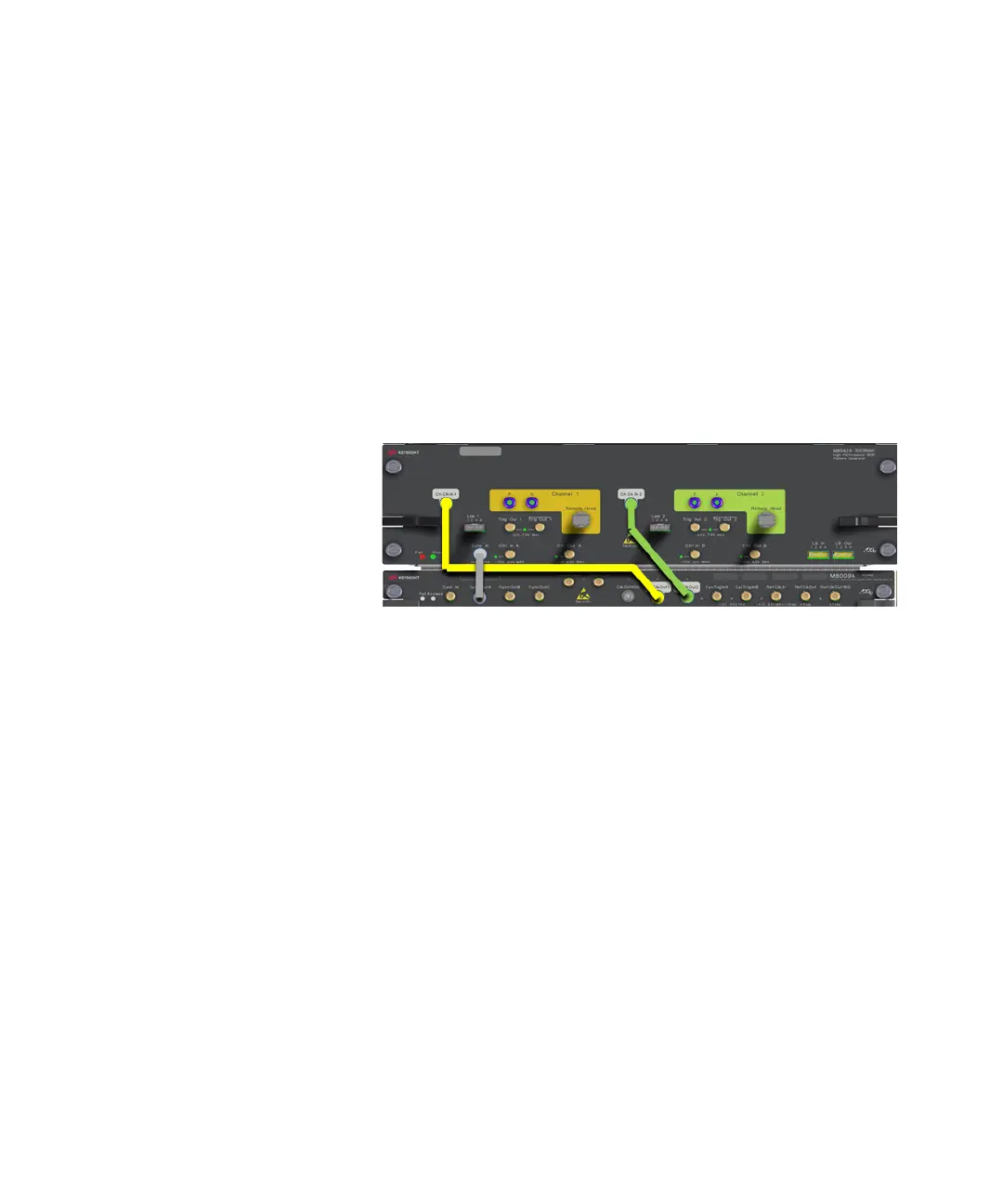

Figure 15 Two-channel system
