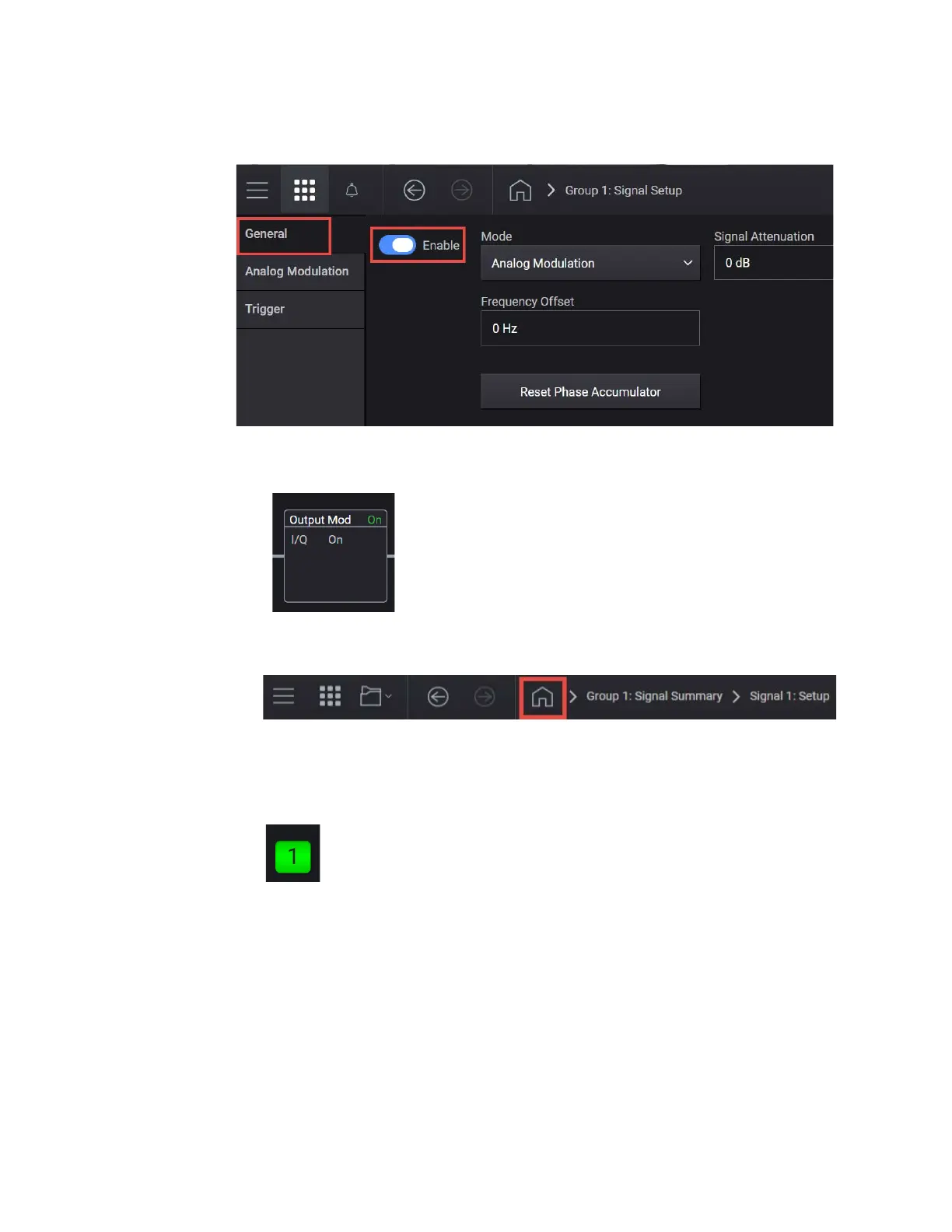

6. Select the General tab > Enable.
Selecting Enable automatically turns on both Output Modulation and
Internal I/Q Modulation as displayed in the Output Modulation block.
7. Close the Vector Modulation Signal Setup by selecting the Home icon at
the top of the display.
8. Set RF Out to On by selecting the numbered channel indicator switch.
This enables the RF Out for the indicated channels, in this case Channel 1
if using a multi-channel MXG.
On the Signal Analyzer:
1. Select Mode Preset to set Spectrum Analyzer mode to a known state.
2. Select Frequency and set Center Frequency to 6 GHz and Span to
500 kHz.
