Corrections/De-embedding Using PathWave E7653APPC Software

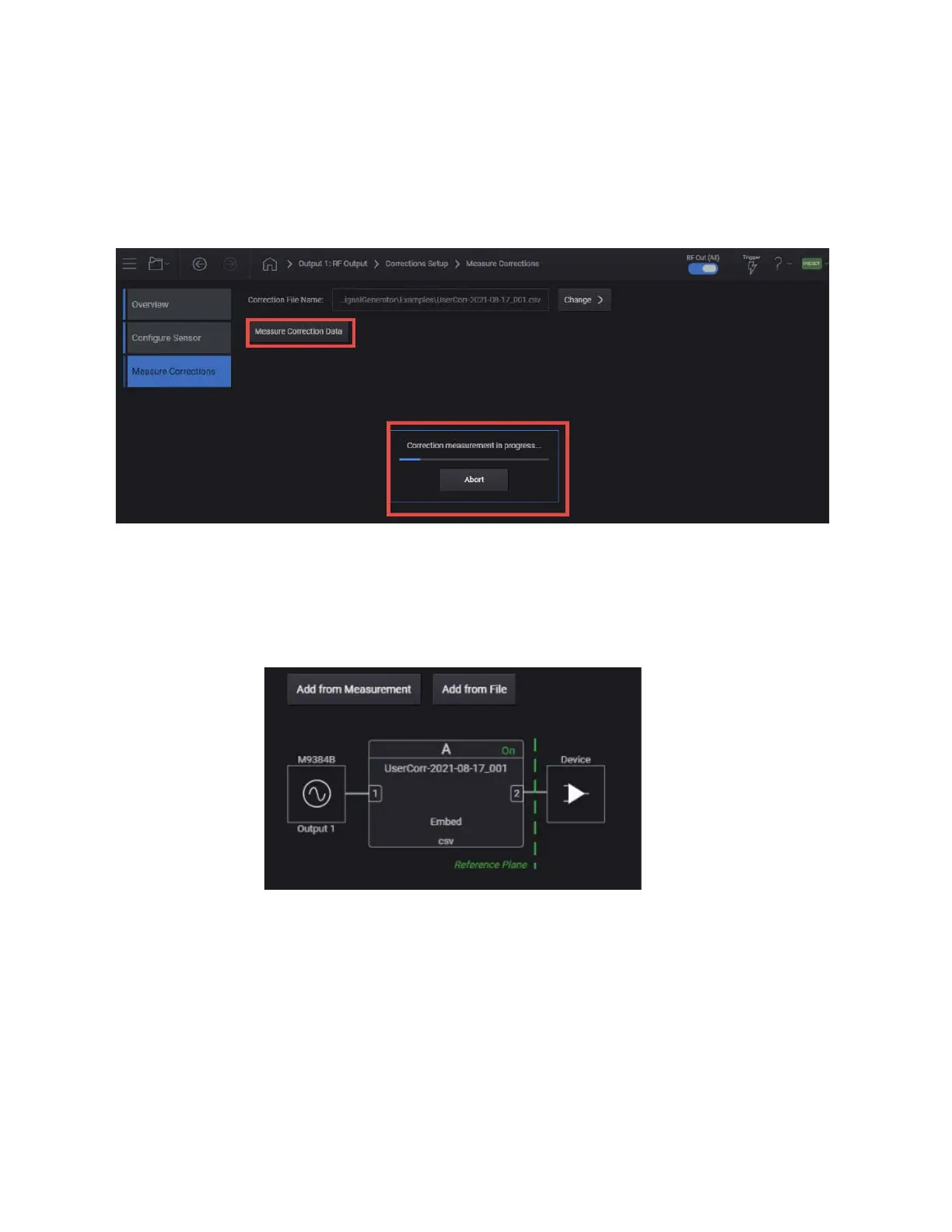

During the measurement, the MXG outputs a CW between the Start and
Stop Frequencies for the specified number of steps and output power. It
will take some time to measure all 101 points, and the progress is
indicated by the blue bar. You can watch the signal analyzer as it steps
through this process.
The measurement results are saved to a csv file using an automatically
generated file name.
9. When the measurement is complete, select Finish, then set Corrections
On.
The output csv file is set to Block A.
