314 Keysight NFA Series Noise Figure Analyzers Service Guide
Power Supply/Midplane Troubleshooting
A7 Midplane Description

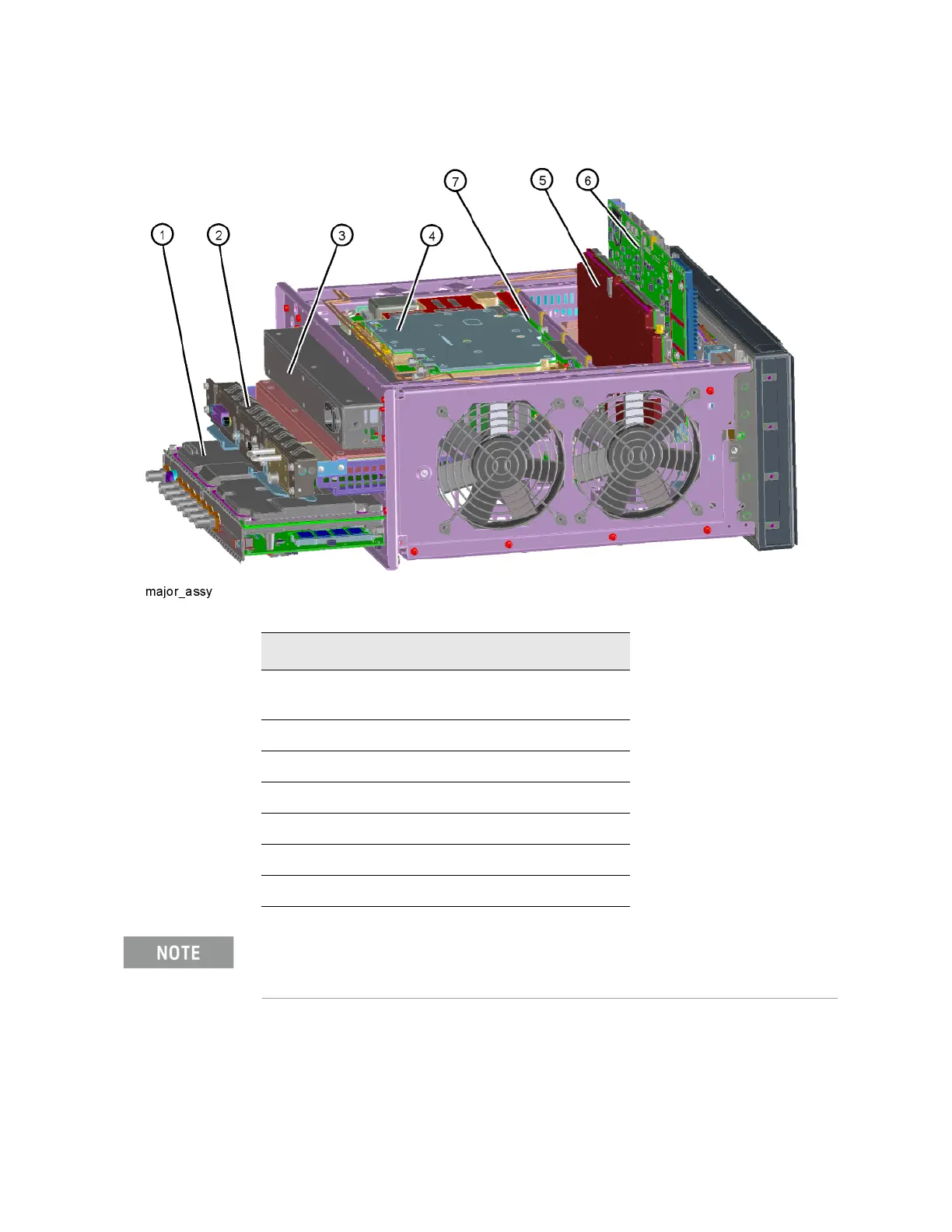

Figure 10-3 Midplane
Table 10-2
Item Description
1 A2 Analog I.F. Assembly
A3 Digital I.F. Assembly
2 A4 CPU Replacement Kit (w/o disk drive)
3 A6 Power Supply
4 A16 Reference Assembly
5 A14 L.O. Synthesizer Assembly
6 A15 Front End Control Assembly
7 A7 Midplane Assembly
The L.O. Synthesizer, Front End Control Assembly, Analog IF, and Digital IF
plug into the Motherboard. All other assemblies mentioned plug into the
Midplane from the rear of the instrument.
