392 Keysight NFA Series Noise Figure Analyzers Service Guide
Assembly Replacement Procedures
Major Assembly Locations
Major Assembly Locations

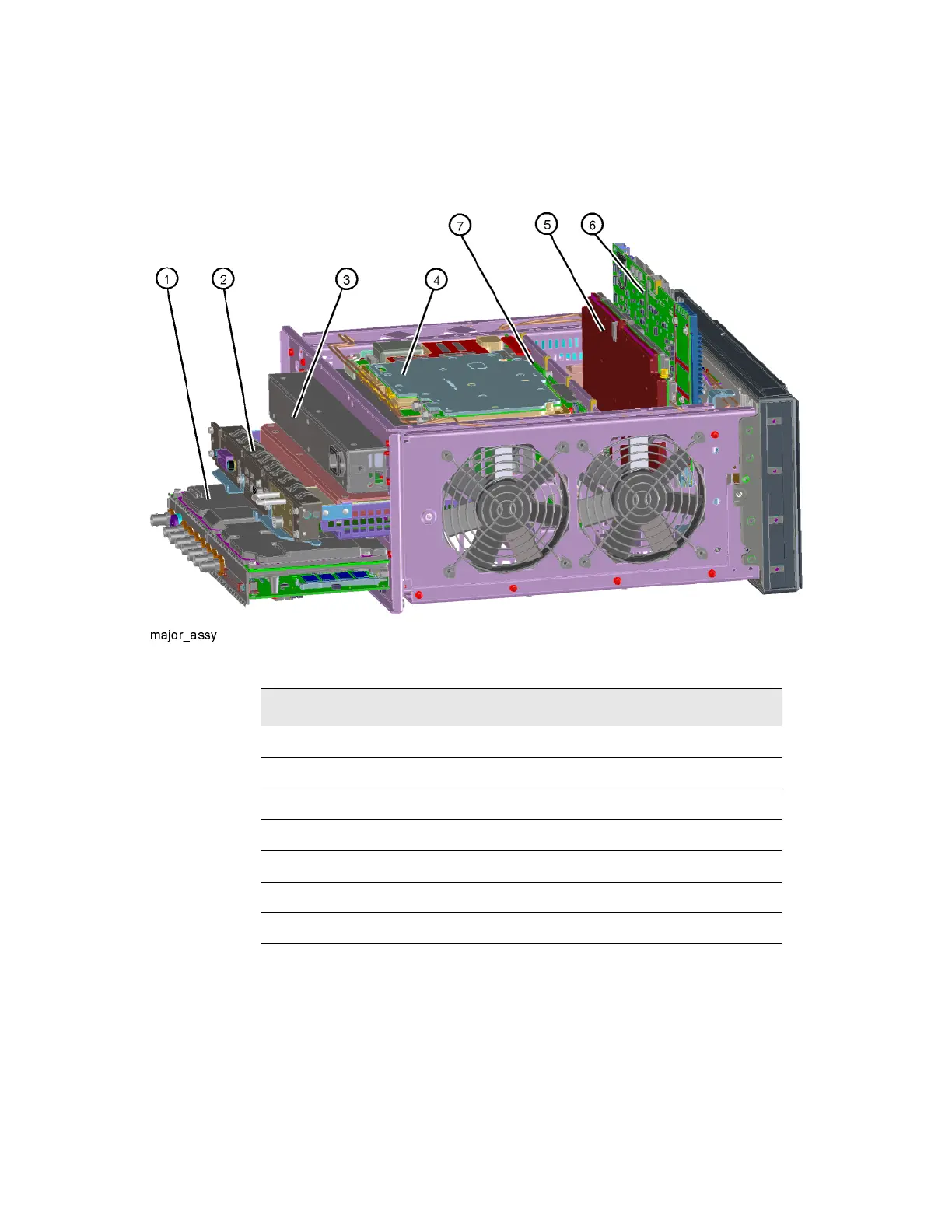

Figure 15-2 Major Assemblies
Table 15-2
Item Description
1 A2 Analog I.F. Assembly/A3 Digital I.F. Assembly
2A4 CPU Assembly
3 A6 Power Supply
4 A16 Reference Assembly
5 A14 L.O. Synthesizer Assembly
6 A15 Front End Control Assembly
7 A7 Midplane Assembly
