Keysight N8976B

Keysight NFA Series Noise Figure Analyzers Service Guide 409
Assembly Replacement Procedures
RF Area (N8976B)
RF Area (N8976B)

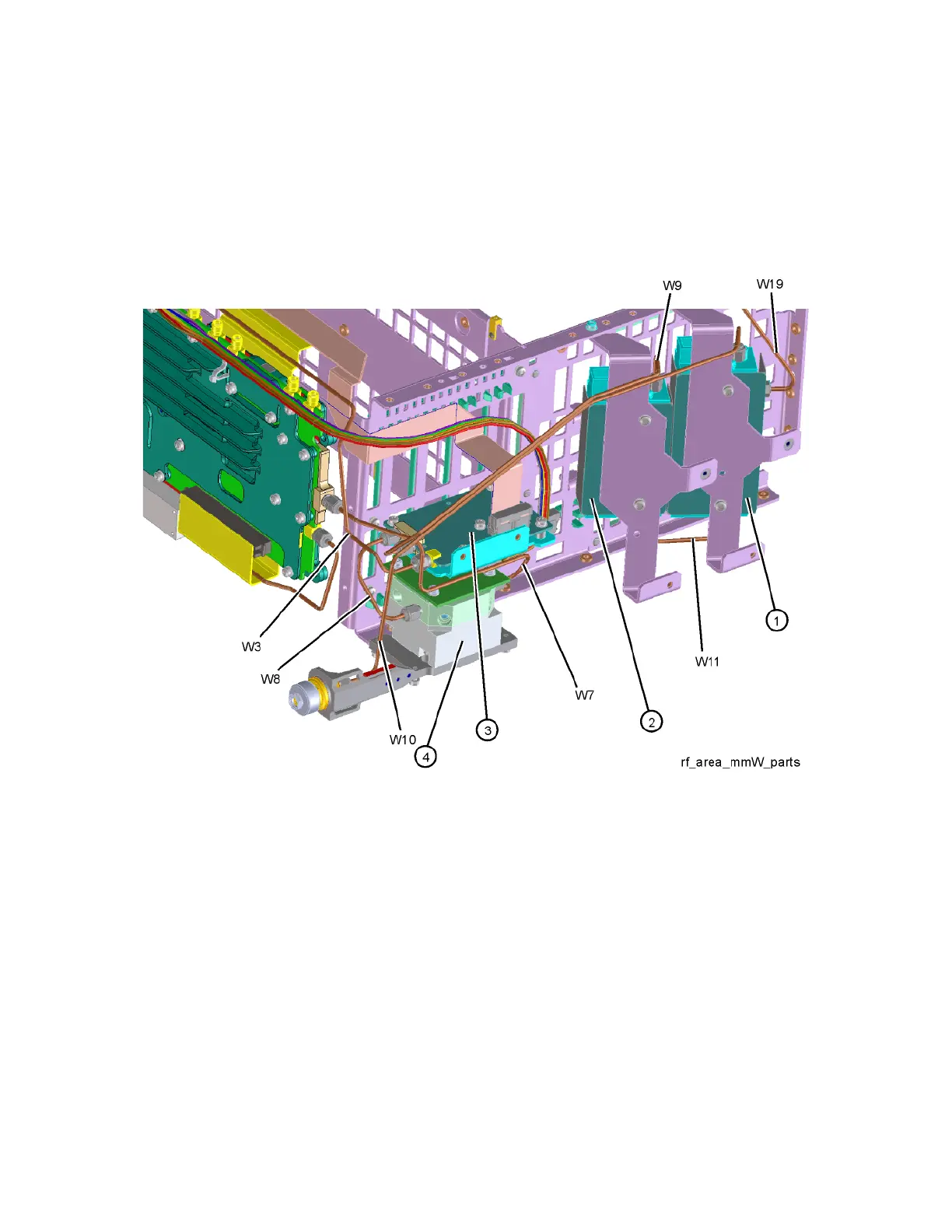

Refer to Figure 15-15. The RF area consists of RF attenuator A (1), RF
attenuator B (2), low band switch assembly (3), and YTF Preselector (4).
Figure 15-15 RF Area Components and Cables - N8976B
