478 Keysight N9010B EXA Signal Analyzer Service Guide
Assembly Replacement Procedures
RF Area (Option 532, 544)
RF Area (Option 532, 544)
Refer to Figure 15-33 and Figure 15-34. The RF area consists of RF attenuator
A (1), RF attenuator B (2), low band switch assembly (3), and YTF
Preselector (4).
Instruments with Options DP2, MPB, or B40 will also have coaxial switch (6),
(Figure 15-34).

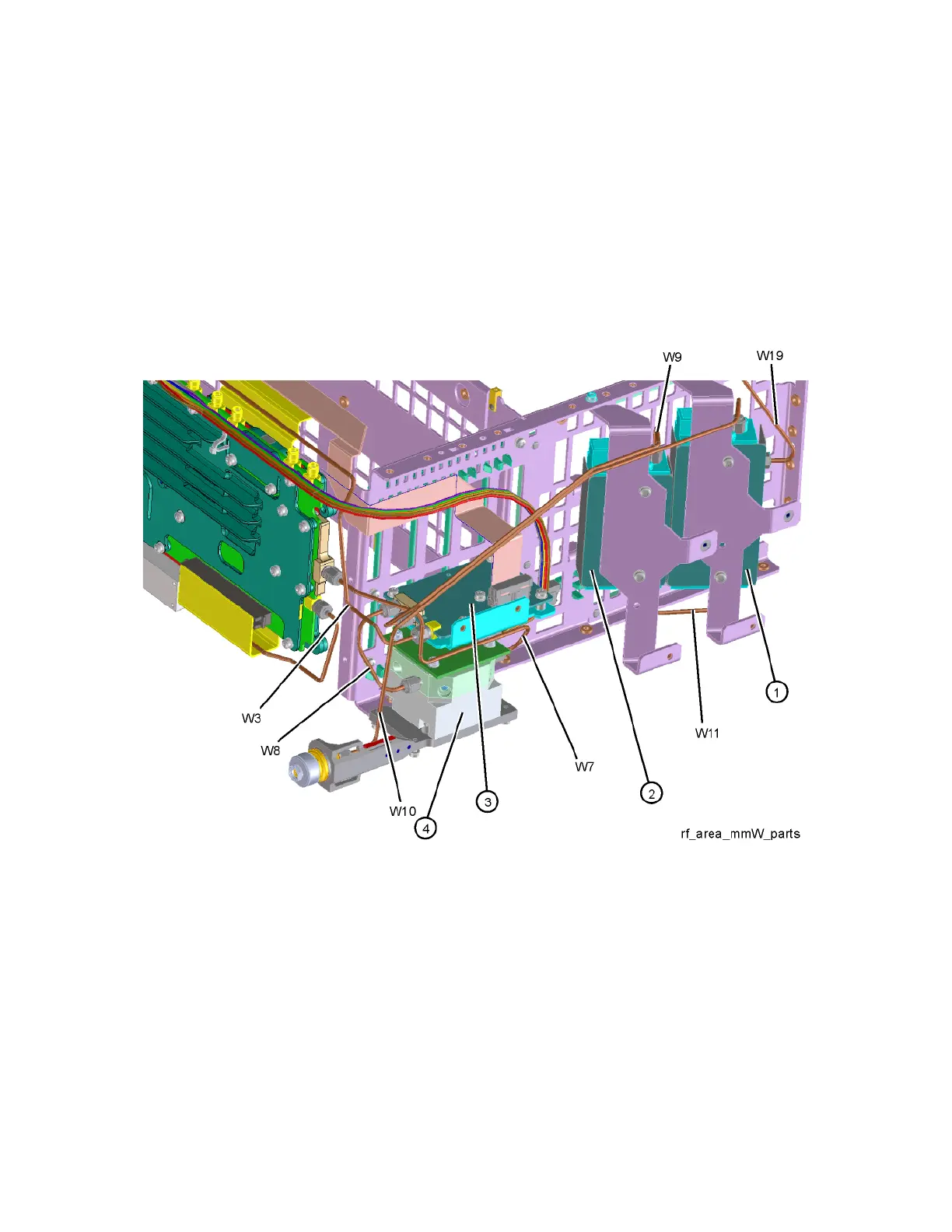

Figure 15-33 RF Area Components and Cables - Option 532, 544
