Keysight N9010B EXA Signal Analyzer Service Guide 517
Assembly Replacement Procedures
Analog I.F. (AIF)/Digital I.F. (DIF) Assembly
Separate AIF/DIF Assembly
1. To separate the AIF (1) from the DIF (2), unplug ribbon cable W2 from
the AIF assembly.
2. Refer to Figure 15-65. From underneath the assembly, remove the three
screws (3).

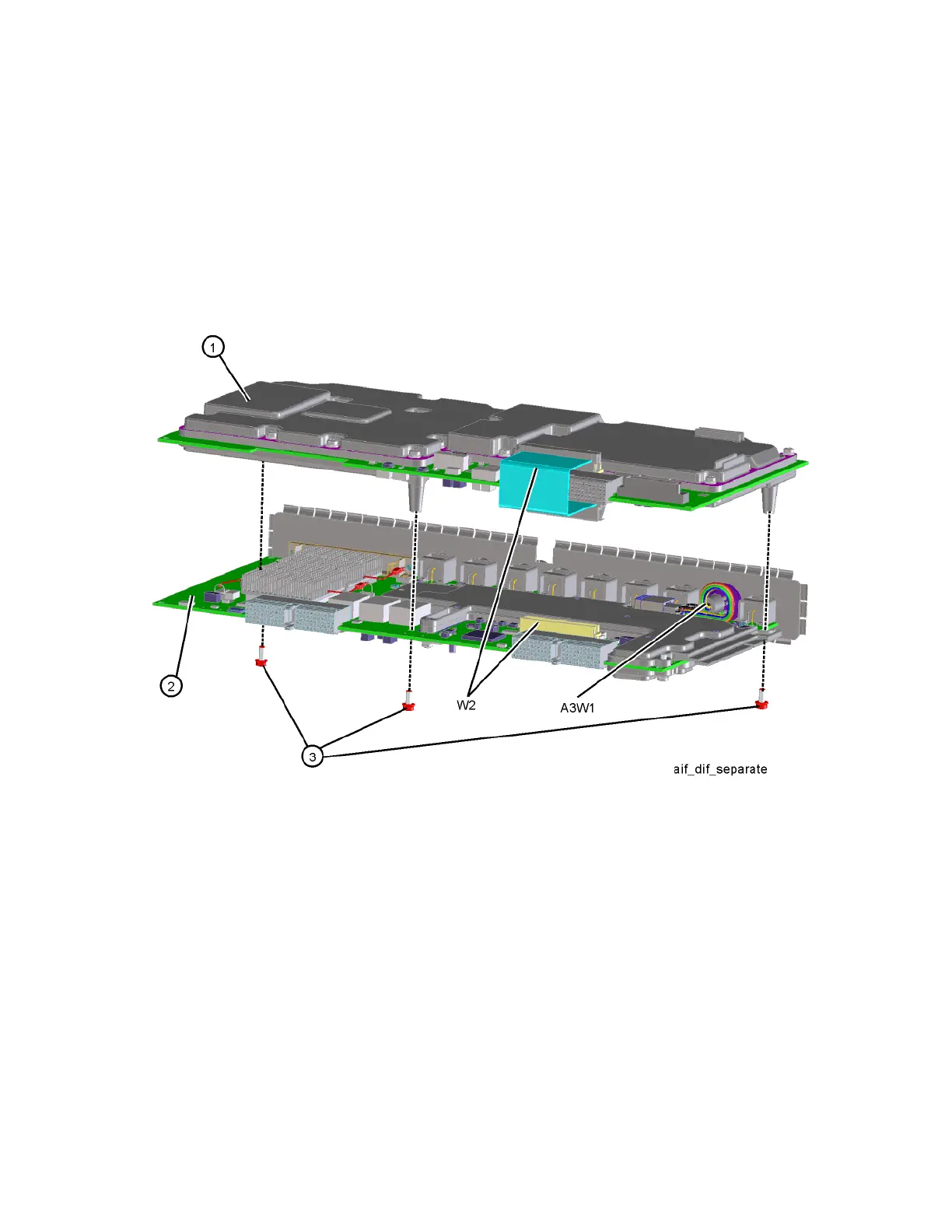

Figure 15-65 AIF/DIF Separation
AIF/DIF Pre-installation
1. Set the DIF in position over the AIF. Reinstall the three screws removed
before. Torque to 9 inch-pounds, starting with the middle screw.
2. To reconnect the AIF and the DIF, reconnect the ribbon cable W2.
