Keysight N9010B - Low Band Switch and Coaxial Switch; Options DP2, MPB, B40

Keysight N9010B EXA Signal Analyzer Service Guide 485
Assembly Replacement Procedures
RF Area (Option 532, 544)
Low Band Switch and Coaxial Switch
Options DP2, MPB, B40
Removal
1. Refer to Figure 15-39. Remove semi-rigid coax cables W3, W45, W46,
W47, and W48.

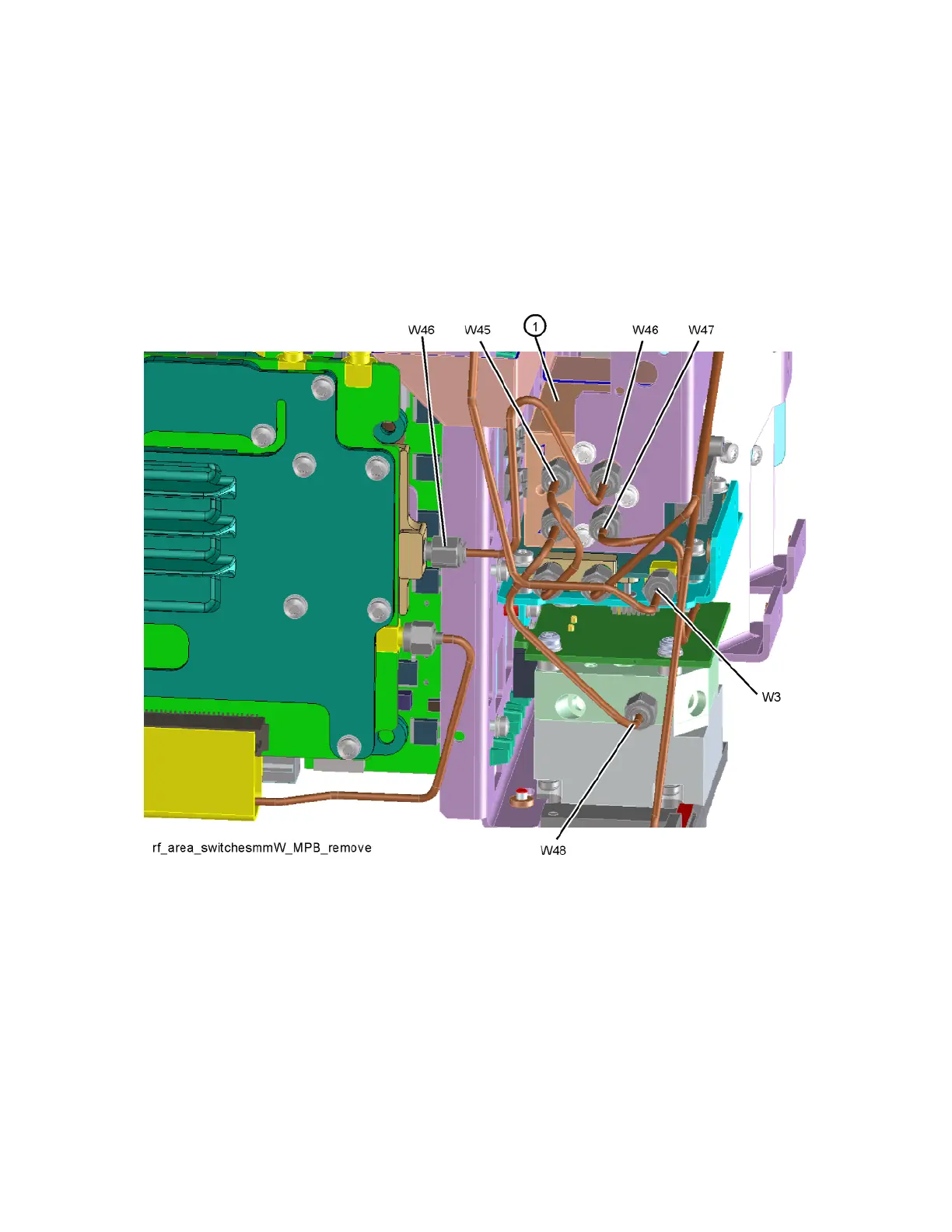

Figure 15-39 Remove Semi-Rigid Cables
