11 IQ Analyzer (IQA) – Option 351 (CPU2 Only)

IQA mode measures signals at the SA RF IN connector.

IQA mode requires the FieldFox to have SA mode and CPU2 installed.

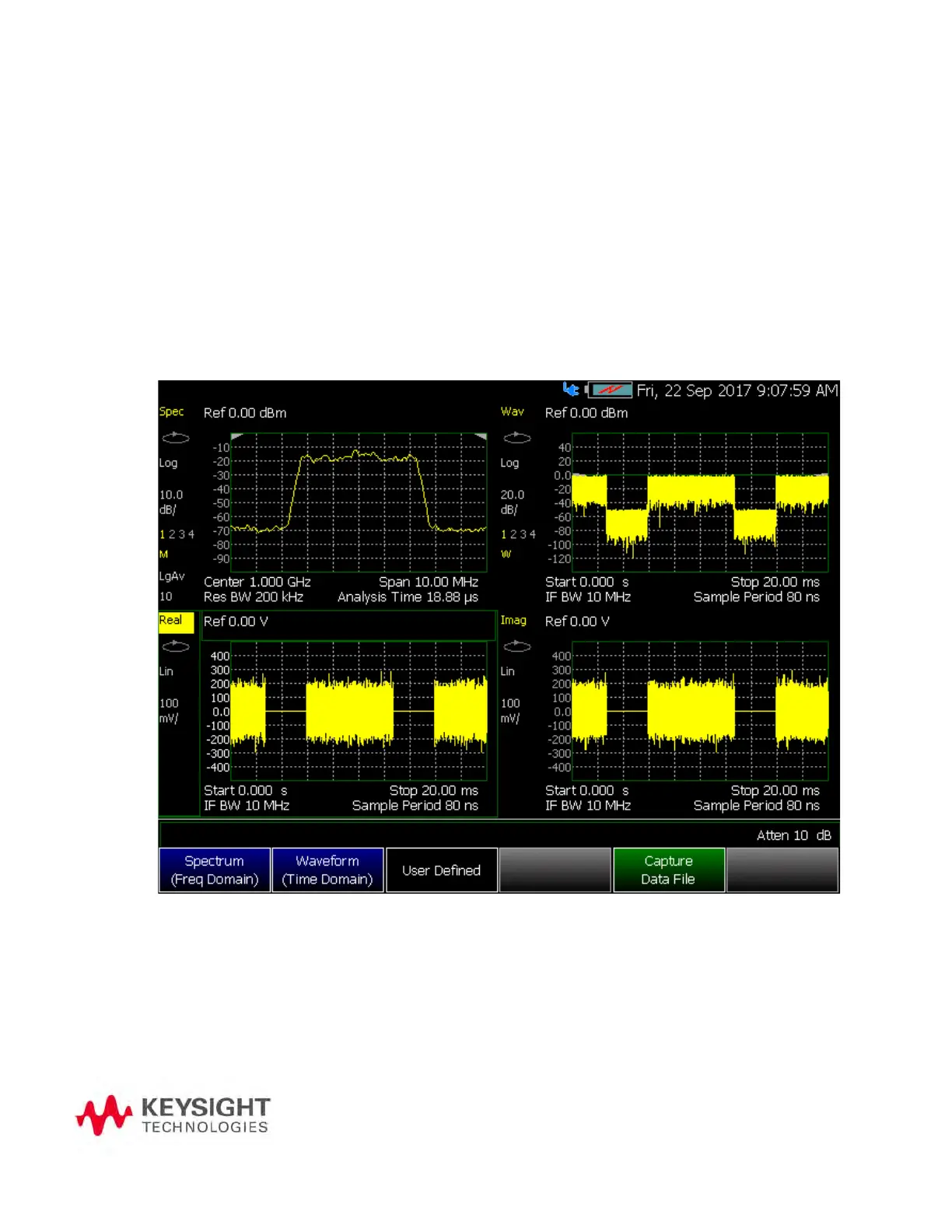

Figure 11-1 IQ Analyzer (IQA) Display - LTE–TDD signal captured using the FieldFox’s I/Q analyzer
