372 Keysight N9927-90001 User’s Guide
Channel Scanner (Option 312)
How to Set Up Channel Scanner

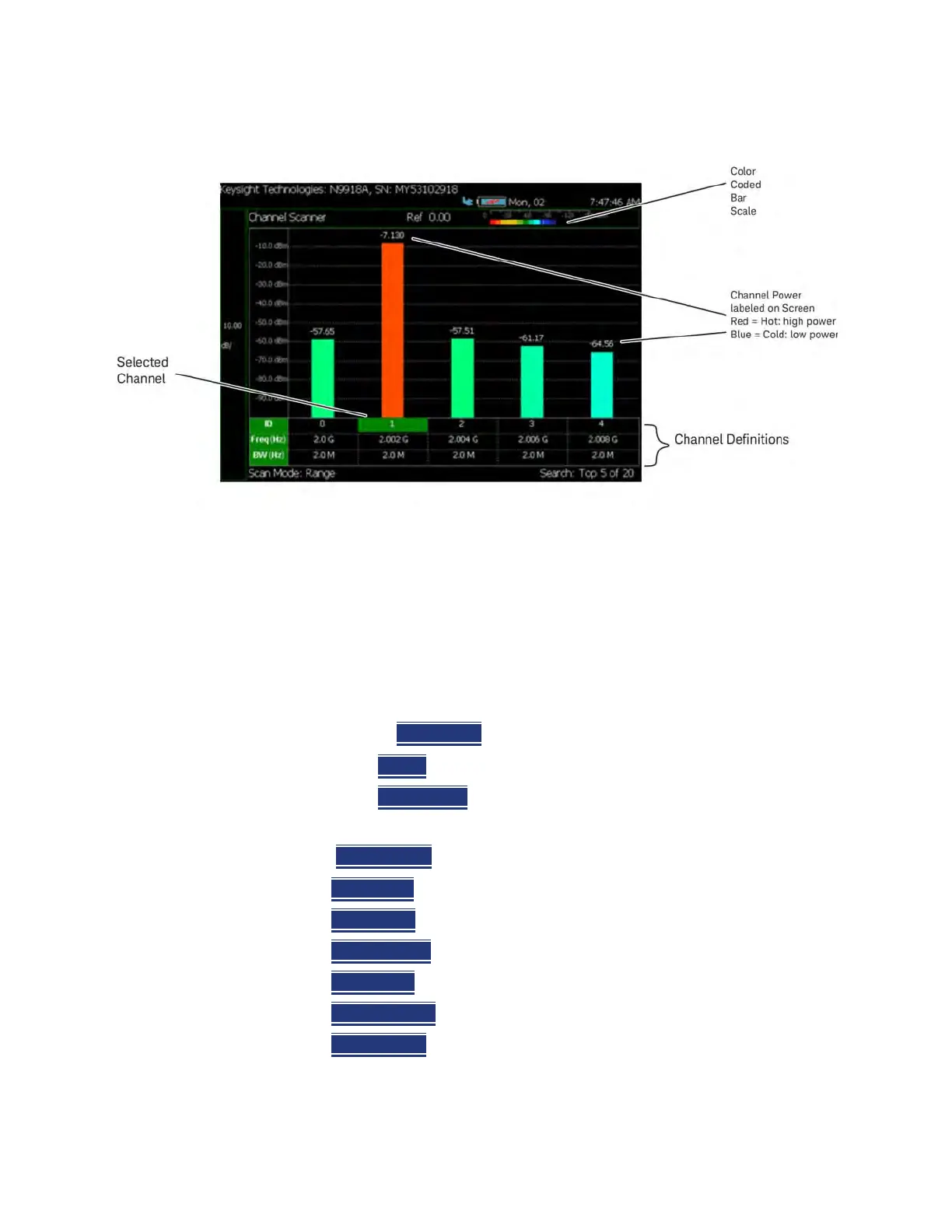

Figure 22-1 Display Example: Measure 5 Channels Spaced 2 MHz Apart
How to Set Up Channel Scanner
This section briefly reviews the steps in setting up a channel scan
measurement. If you are not familiar with this process or would like more
information, refer to “How to Define a Channel and Use Channel Scanner”.
1. Define some channels (refer to “How to Define a Channel and Use Channel
Scanner”).
a. Select a Scan Mode
—choose:
— Range
Specify total channels, channel spacing or
— Custom List
Specify a list of channels from an editor
b. Then modify channels based on the selected scan mode
2. Select Display Type
—choose:
— Bar ChartV
or
— Bar ChartH
or
— Channel Pow
or
— Strip Chart
or
— Chart Overlay
or
— Scan&Listen
3. Modify scale and specify color bar coding—Modify the scale and assign
colors to low and high power channels (bars):
