Noise Figure Mode (Option 356 – CPU2 Only)
How to Define a Noise Figure Measurement
Frequency Range and Frequency Context
Set the range of frequencies over which you would like to make DUT type
measurements and frequency context for noise measurements.
When the frequency range is changed after a calibration is performed, the cal
becomes interpolated. Learn more in “Interpolation *” on page 138.
How to set Frequency Range and Frequency Context
—Press Freq/Dist (Measurement) or
for Frequency Context:
—Press Meas Setup
> DUT) > RF (DUT In) and IF (DUT Out)
— Then choose from the following
— Start
and Stop frequencies - beginning and end of the sweep.
— Center
and Span frequencies – the center frequency and span of
frequencies (half on either side of center).
— Follow each setting by entering a value using the numeric keypad,
arrows, or the rotary knob.
— After using the keypad, select a multiplier key. Learn about multiplier
abbreviations in Chapter 1, “Overview.”
— After use the arrows or the rotary knob, press Enter
.

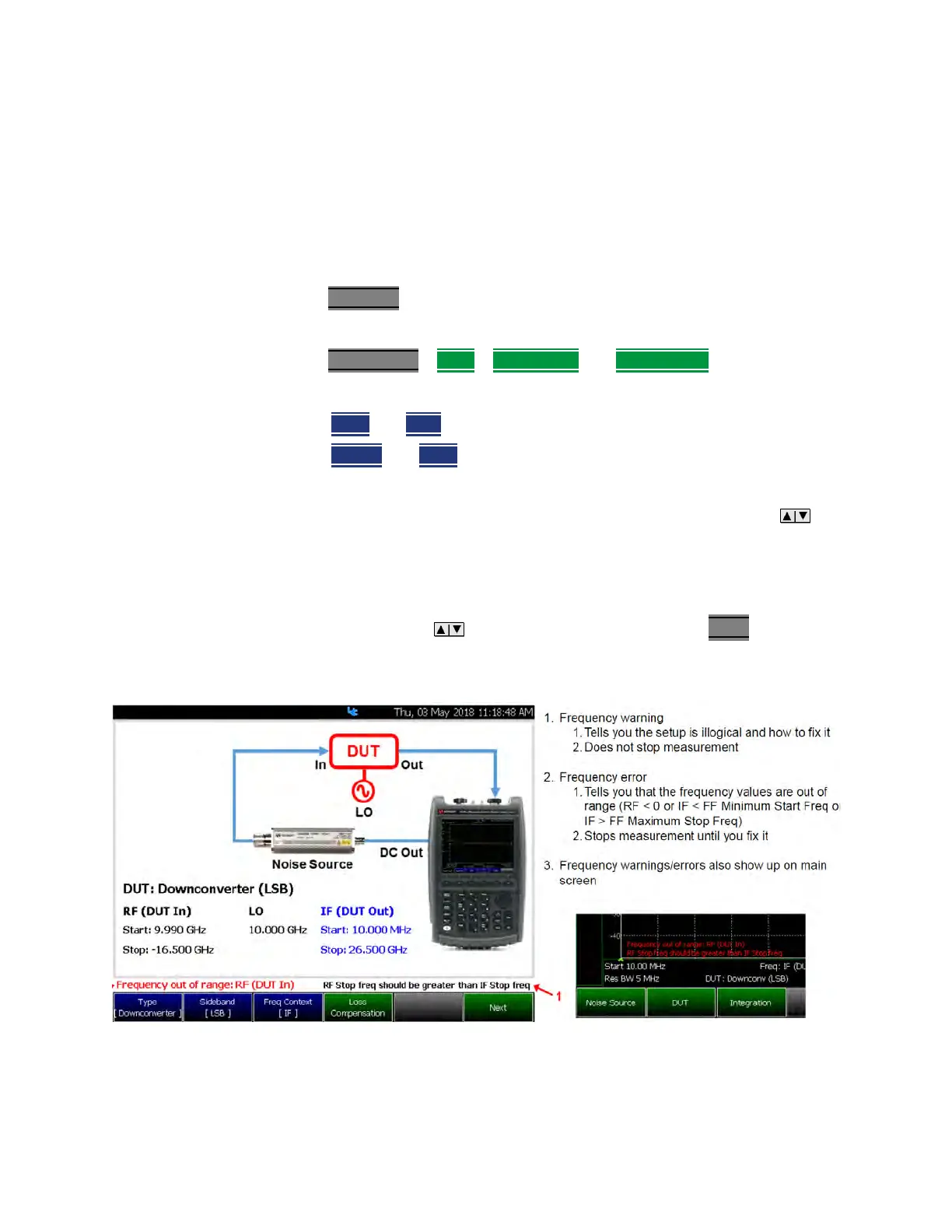

Figure 23-15
