28 U9361C/F/G/M RCal Measurement Guide
Making Measurements
Equipment Setup
Setting Up a Signal Analyzer to Control a Signal Generator
You will need to set up the signal generators address on the signal analyzer in
order for the signal analyzer to control the signal generator.
1. Connect your signal generator to the LAN or to the SA through GPIB.

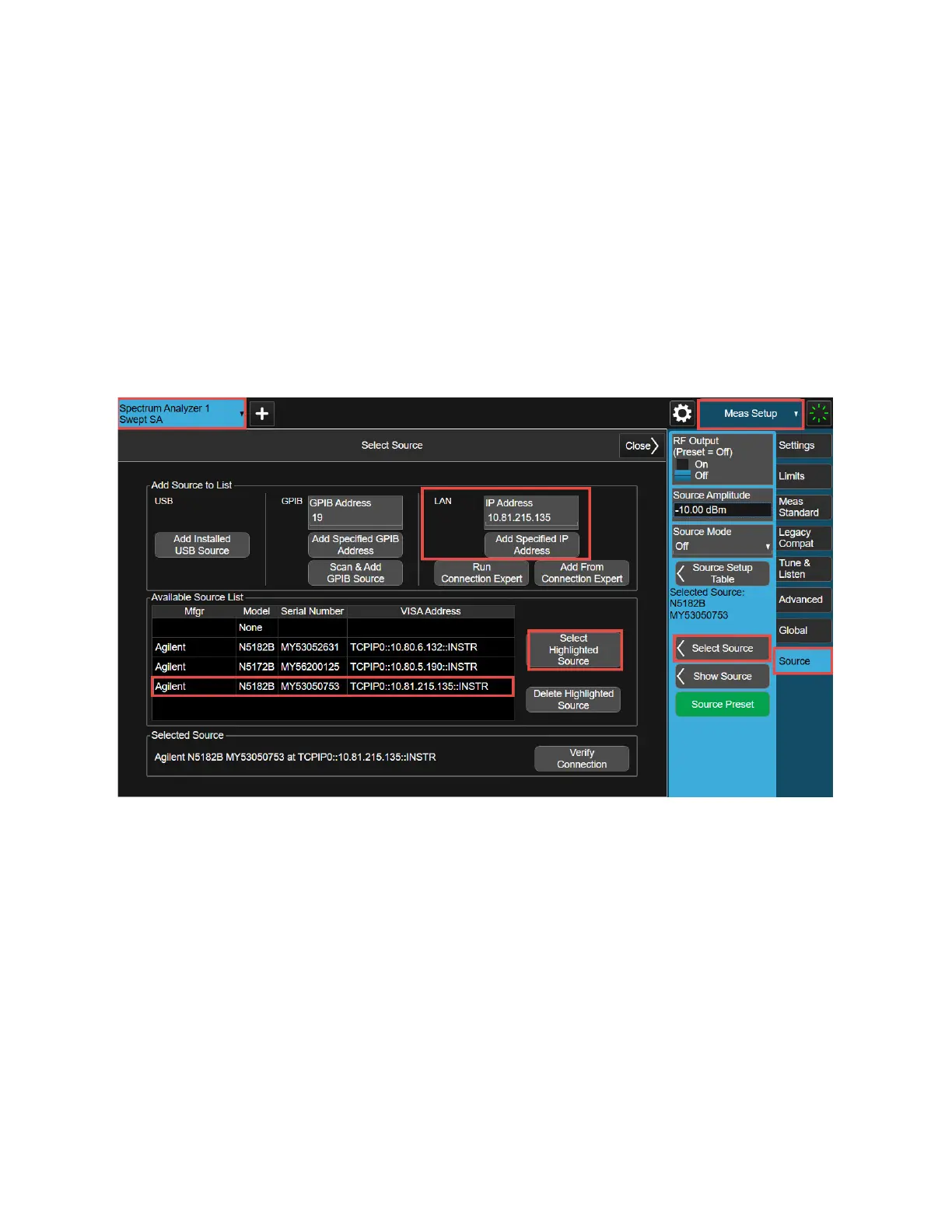

2. On the Signal Analyzer in Spectrum Analyzer mode, select Meas Setup >
Source tab > Select Source.
3. Enter either the GPIB or LAN source address and then select Add
Specified Address. In the Available Source List, highlight the address, and
then choose Select Highlighted Source.
