14 KIC 2000 User Manual
7 Channel -KIC Explorer – Place the KIC Explorer into bottom half of the KIC Explorer thermal shield.
• The thermocouples should rest flat on the bottom of the inside the shield.
• The thermocouple wires should exit from the front of the thermal shield.
• The KIC Explorer antenna should extend fully, and exit from the back of the thermal shield. See
Figure 22.

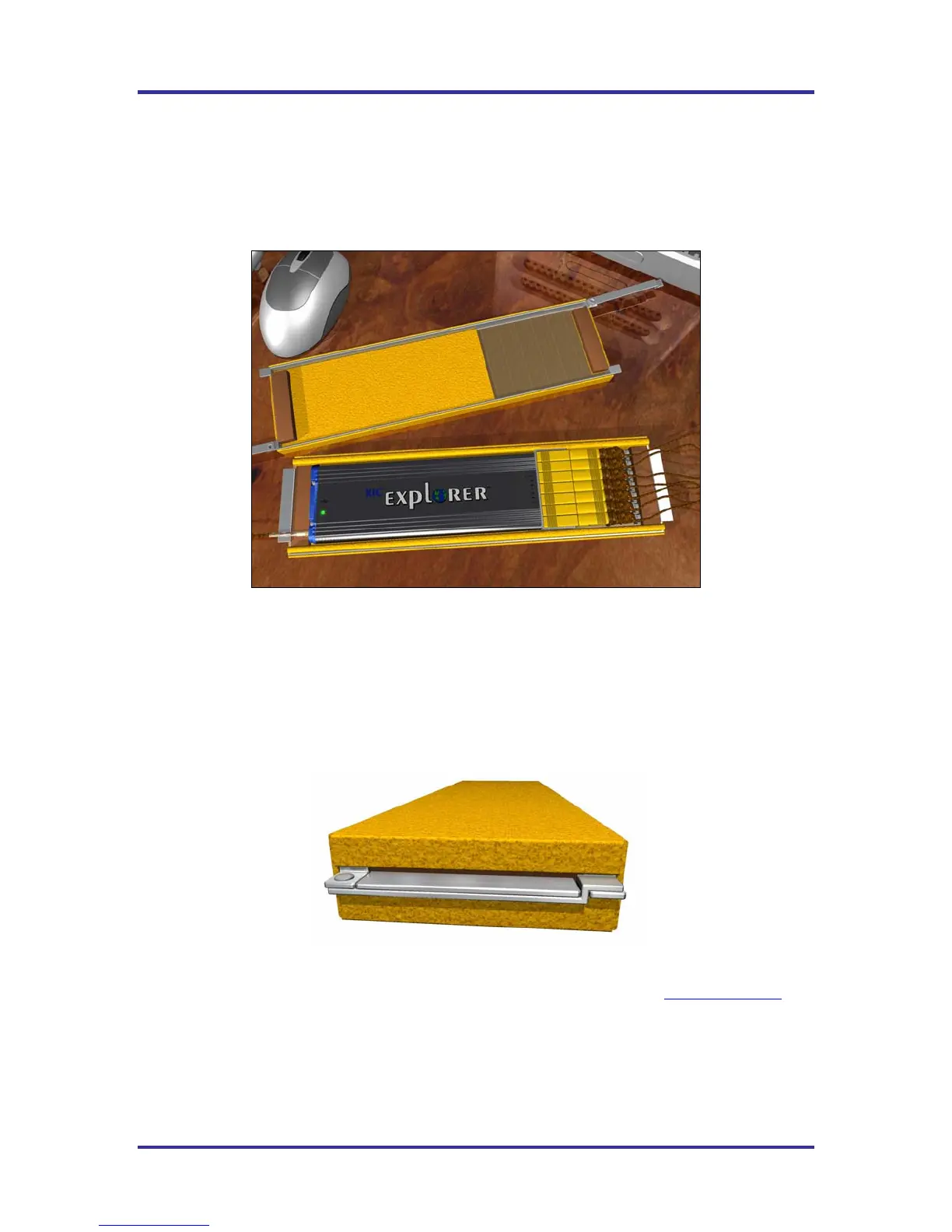

Figure 22: 7 Channel KIC Explorer
Once the KIC Explorer is set inside the bottom half of the thermal shield and the thermocouple wires and
antenna are properly routed, verify the KIC Explorer is on by viewing the LED near the On/Off button. See
Figure 22.
Next place the top-half of the KIC Explorer over the bottom half and then swing the latching mechanisms
into the closed positions at each end. See Figure 23. Be careful not to damage the thermocouple wires or
KIC Explorer antenna. (RF models only)
Figure 23: KIC Explorer Thermal Shield Latching Mechanism
Contact KIC Technical Support if you need any assistance with your KIC Explorer: tech@kicmail.com
