KIC 2000 v2.4.0.x
48 KIC 2000 User Manual

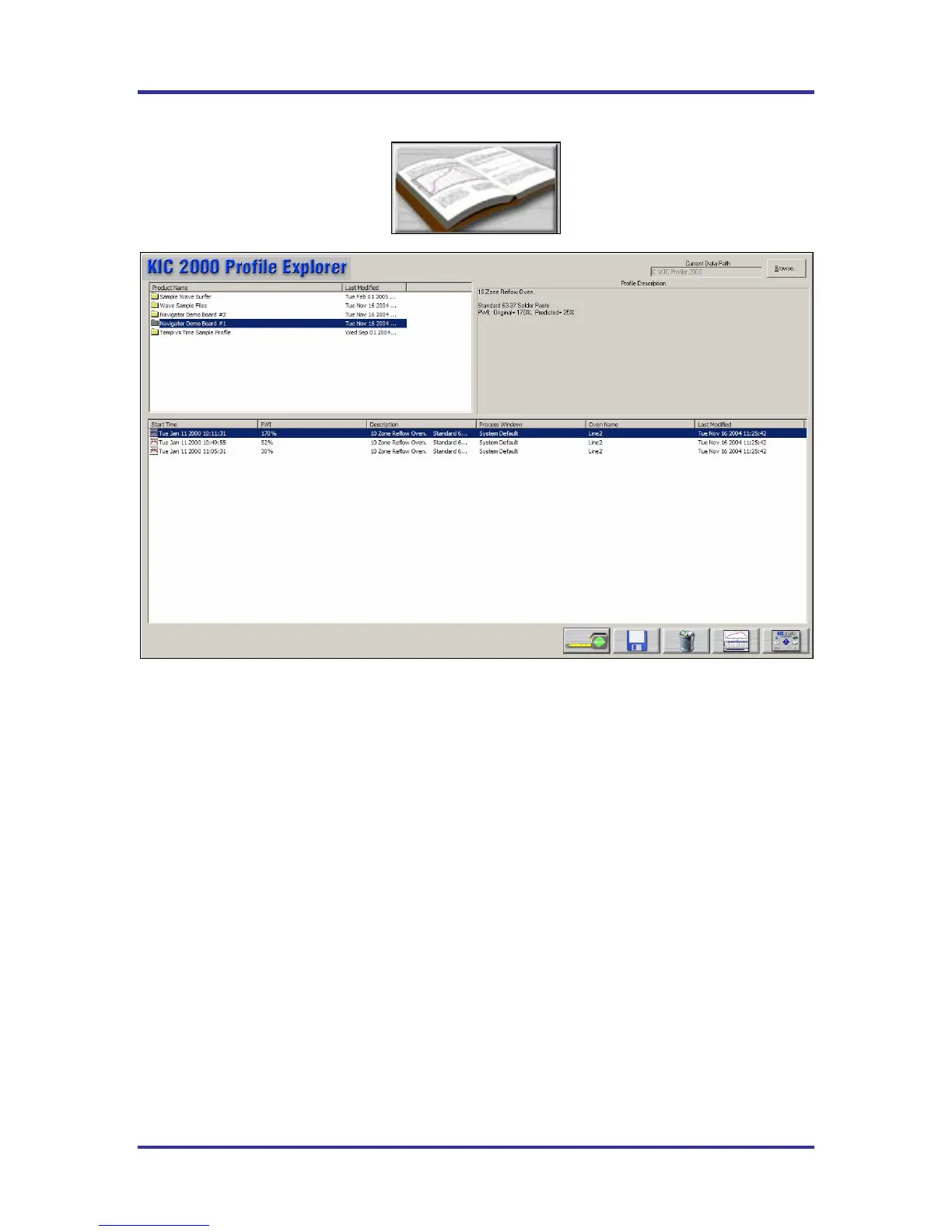

KIC 2000 Profile Explorer
Figure 79
The KIC Profile Explorer is a powerful and simple data file management tool. For each unique product
name you use when profiling, the KIC 2000 software will create a folder with the same name. Under that
folder all the profiles run using that product name are saved. See Figure 79.
• The list of product folders is in the upper left of the Profile Explorer. Click on a folder to display
the profiles in the profile section at the bottom.
• The profile section can be sorted by click on any of the column headers. Single clicking on a
profile will display the Profile Description in the upper-Right corner.
• Double clicking on the profile will display the graph and statistics for that profile.
• Clicking on the Display Graph… button can also do this.
The default data path can be changed, see page 118 for details.
Buttons
Product Dimensions button (Tape measure) For Auto-Focus users, allows the user to edit the length,
width, and weight of the selected product. Whenever the product dimensions are changed in the
Profile Explorer, all the profiles in the directory will be updated automatically.
Save button with the Blue floppy disk allows you to save a profile to another folder or to a floppy disk.
Delete button (trashcan) allows you to delete the selected profile.
Display Profile button – displays the profile for viewing or analysis.
Main Menu button in the lower right corner returns you to the Main Menu.
