Saving - Process Window

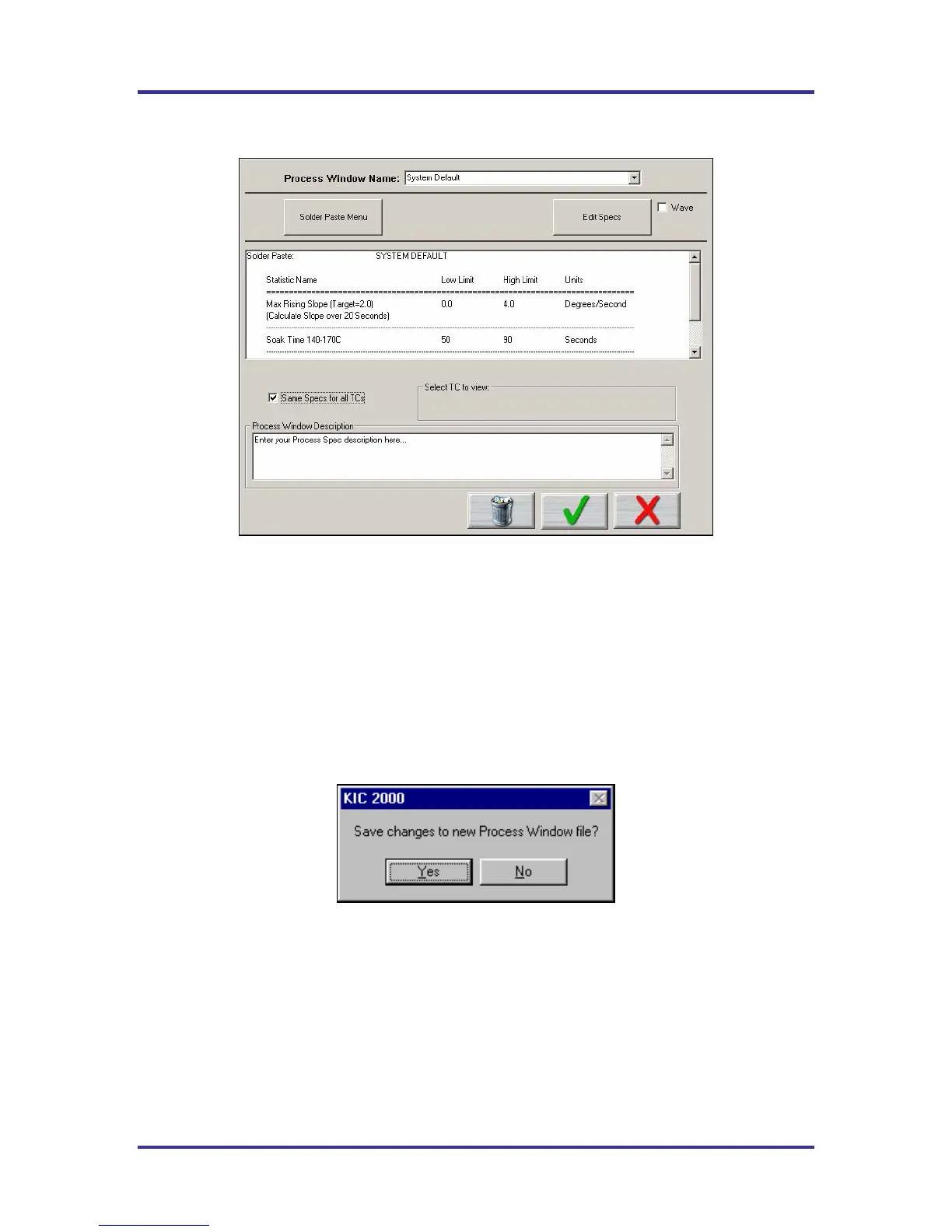

Figure 33
To create a Process Window, follow these steps:
1. Choose a solder paste from the Solder Paste Menu.
2. Edit the specs if necessary. See Page 23 for details.
3. Enter a name the Process Window
4. Save the Process Window
To save - Click on the Green check (Save and Exit) button. A dialog box will appear asking if you want
to save the changes to the new Process Window file. See Figure 34.
Figure 34
Clicking on yes will save it and exit to the main screen. You can click on No and click on the Red X
“Cancel button” to exit without accepting or saving any changes.
