SRA Smart Reflow Analyzer Hardware Guide SRA-330200-000
11

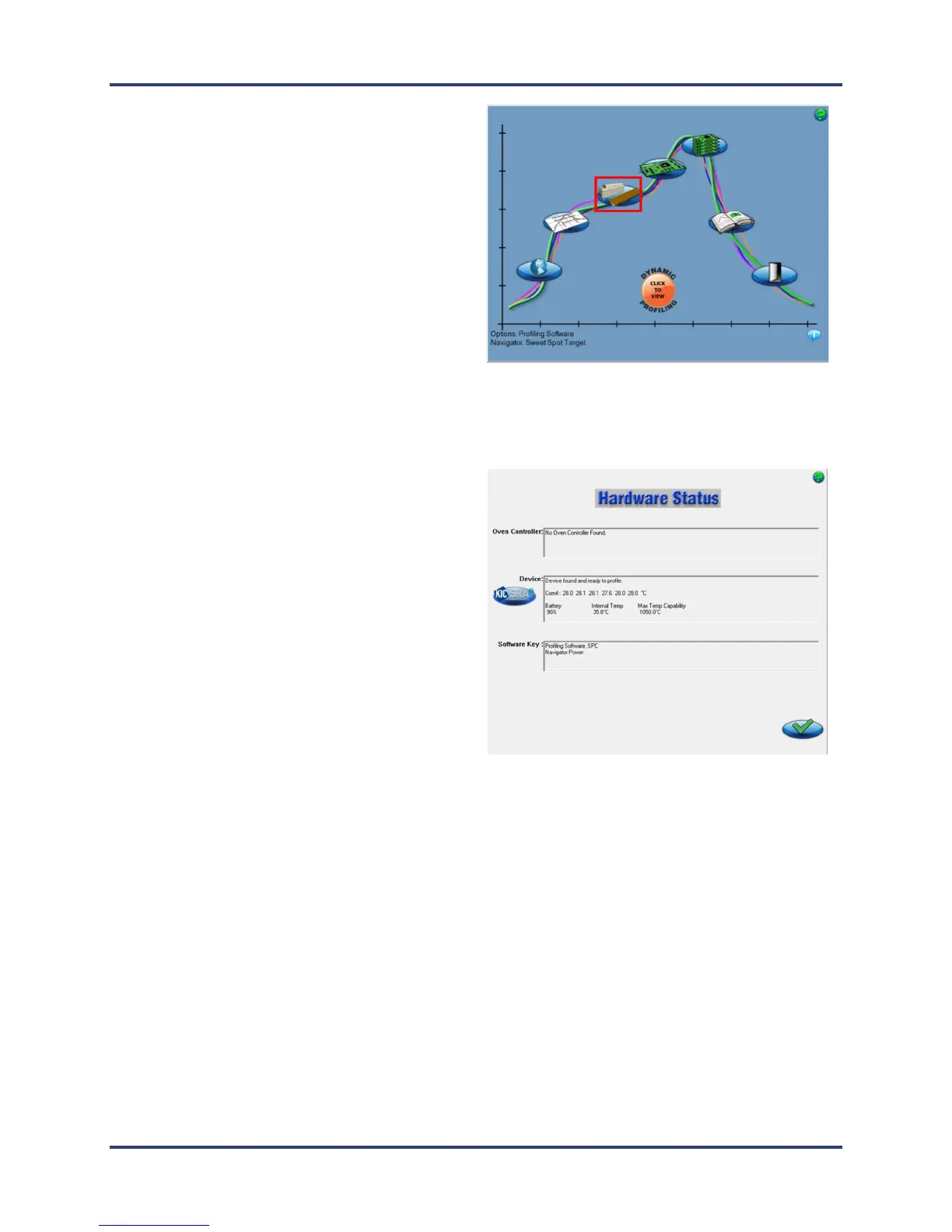

8. When the Main screen appears, click the
Hardware Status button.
9. The Hardware Status screen appears, showing the
status of the device, and confirming that the
software is connected to the SRA and receiving
live readings.
Note: The Device panel displays live temperature
values and the current battery voltage. TC
connections display the live temperature or appear
as open (opn) if there is no reading from that TC.
