Kidde VM-1R User Manual

VM Series
Head End
6
SUBMIT

VM
Head End
SERIES
GAIN
TB3
JP1
TB2
25V COM25V COM
TB1
JP3
IN
OUT
15 K ohm
ELOR
15 K ohm
ELOR
AA30/50
ACHSACHS
Channel 1
Audio in,
Evac
Channel 1
Audio in,
Alert

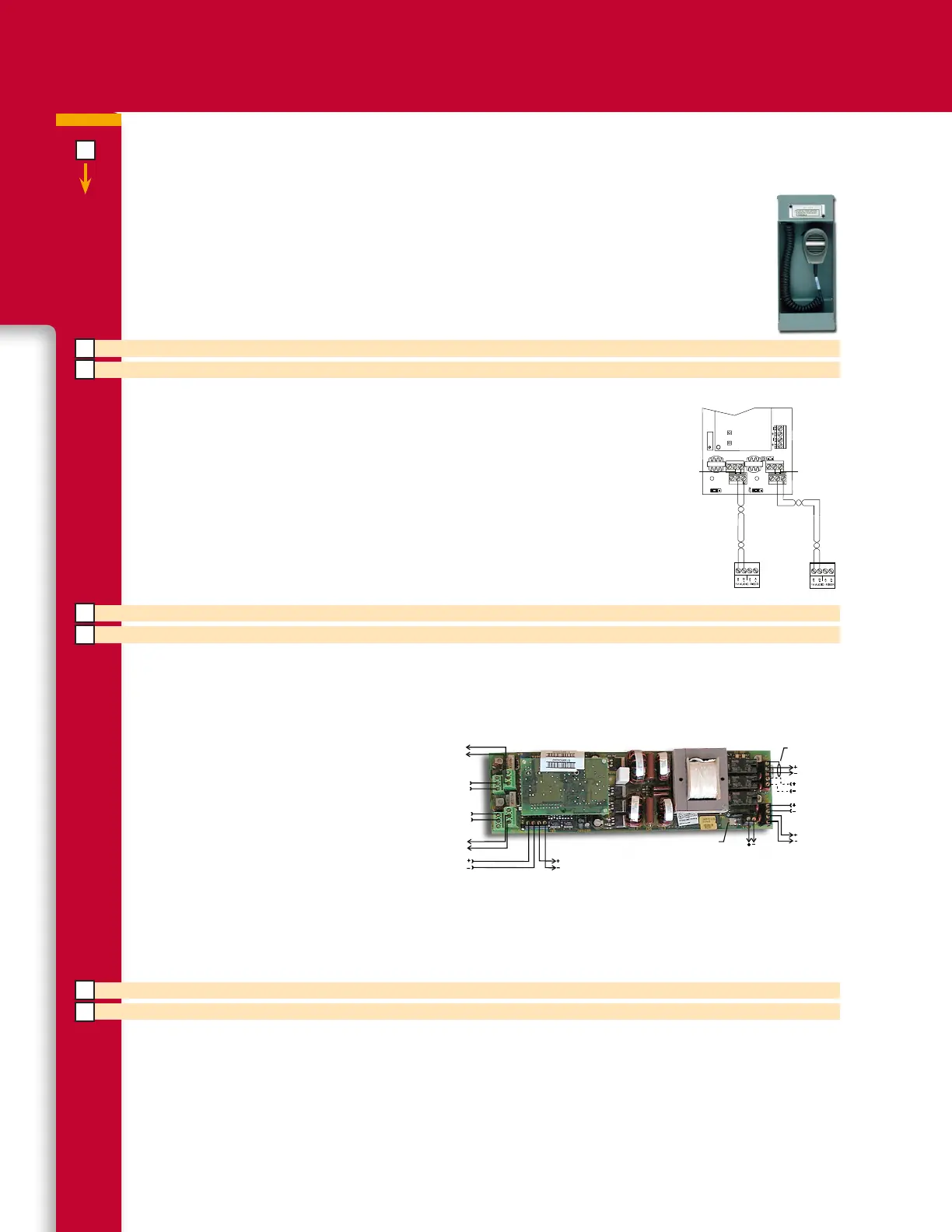

VM Remote Microphone
VM Remote Microphones provide remote paging capability throughout a building or campus. Each remote
microphone has two inputs for connecting other remote microphone units. The paging circuit supports
up to 63 interconnected remote paging stations.
VM-ARM Remote Microphone, includes cabinet, semi-ush mount. Data Sheet K85005-0133
VM-ARM-S Remote Microphone, includes cabinet, surface mount. Data Sheet K85005-0133
ACHS Audio Channel Selector Card
The ACHS Audio Channel Selector Card converts digital audio from an EAEC card
into an analog preamp signal. Up to three ACHS cards may be mounted to a VM-PMI
Paging Microphone Interface or AMK-RN Mounting Kit.
ACHS Audio Channel Selector, one channel, supervised preamp output. Data Sheet K85005-0133
AMK-RN Mounting Kit. Holds up to three ACHS cards where no VM-PMI is used. Data Sheet K85005-0133
Intelligent Audio Ampliers
Signature Series ampliers are high-ecien-
cy switch mode audio ampliers available
in 30 and 50 watt sizes. Amplifiers have
two input channels supporting dual chan-
nel or single channel audio applications.
Signature amplifiers are ideally suited for
distributed audio applications and small
centrally banked applications. The audio
output is congurable as 25Vrms or 70Vrms in Class B or Class A wiring congurations. Speakers can connect directly
to the output of the amplier or the amplier output can run as an audio riser to Signature modules where speaker zone
selection is made. Each amplier has a built-in 1kHz tone generator and provision for a back up amplier. On-board
status LEDs provide quick visual indication of amplier status.
SIGA-AA30 30 Watt Intelligent Audio Amplier Data Sheet K85010-0089
SIGA-AA50 50 Watt Intelligent Audio Amplier Data Sheet K85010-0089
To 24 VDC
From Output of
Backup Amp
To Backup Input
of Next Amp
Shield Optional
Output Return
ClassAOnly
Audio Output
to Speakersor
Signature device
Output Voltage
Selection Jumper
To Next
Signature Device
From Previous
Signature Device
From Channel 1
Signal Source
1V
rms
or 25V
rms
To Next Amp
Channel1Input
To Next Amp
Channel2Input
From Channel 2
Signal Source
1V
rms
or 25V
rms
Status LEDs
Status LEDs

Kidde VM-1R Specifications

General

Brand	Kidde
Model	VM-1R
Category	Control Panel
Language	English
