Intelligent initiating devices
VM
Notification Appliances
SERIES
Firefighters’
Telephones

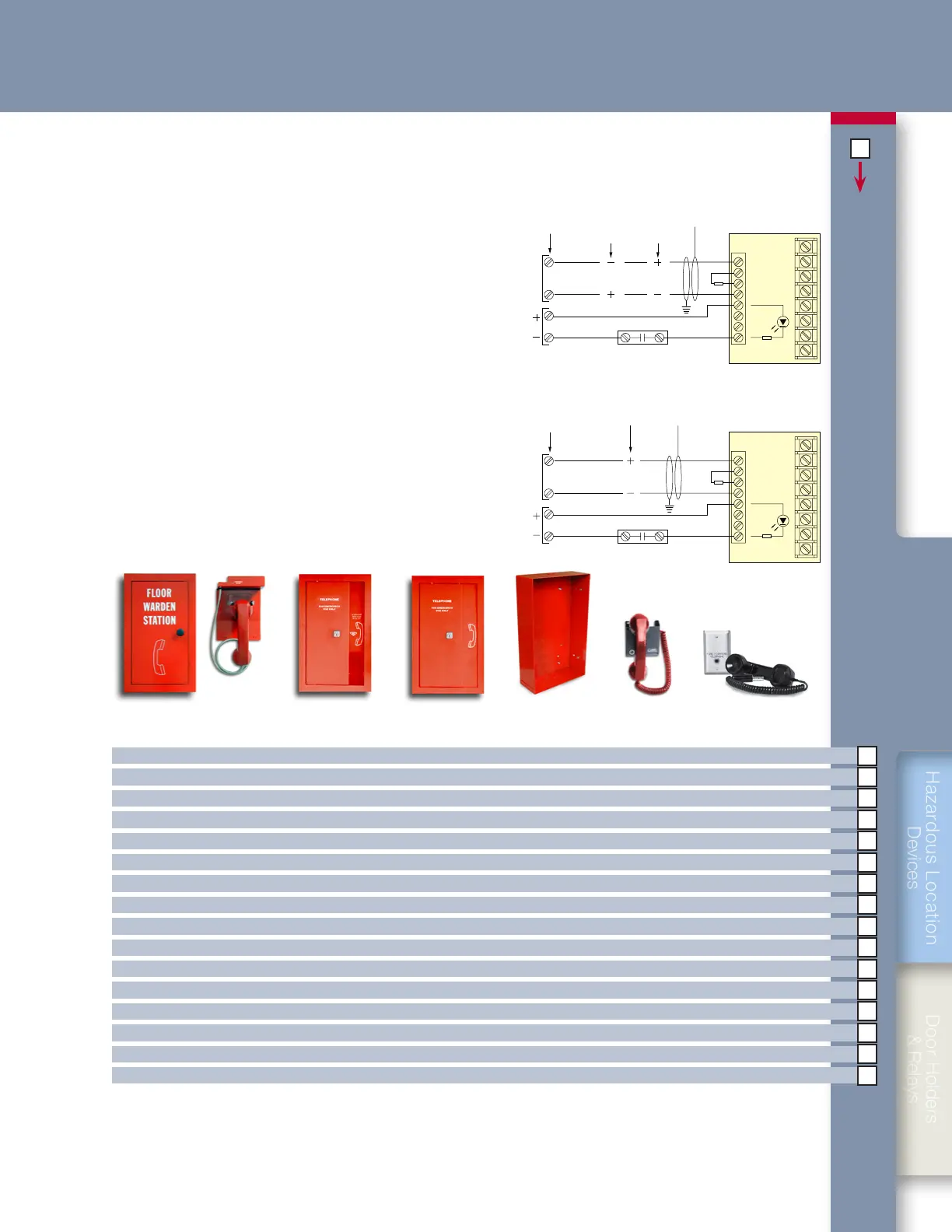

Firefighters’ telephones are typically installed in corridors, lobbies,
mechanical rooms, stairways, or other stategic locations. When
lifted from its cradle, or plugged into a suitable wall jack, the hand-
set activates audible and visible signals at the VM control panel.
Kidde fire alarm telephones are rugged communications devices
for emergency use. Enclosed keylocked telephone stations com-
prise three separately ordered components: the handset assem-
bly, the frontplate, and the wallbox. Depending on how the phones
are wired, they are supervised for three or four state operation.
Frontplates are available with either metal or break glass insterts.
MEA approved warden stations feature doors with magnetic
latches and one-state handsets with armoured cords. Warden
stations mount to 6832-1 wallboxes. Portable handsets plug into
one-gang receptacles. Handsets are available in black or red. The
TCS-6 cabinet provides storage for up to six handsets.
6831-46831-1 6830-4 6830-3
6833-4
6830-NY-S4
6832-1
Firefighters’ Telephones
6830-NY-F4 Four-state Remote Telephone Warden Station - Flush. Armored armored cord.
6830-NY-S4 Four-state Remote Telephone Warden Station - Surface. Armored armored cord.
6830-5A-4 Four-state Telephone Handset Assembly - Red, 60” (1500mm) Coiled Cord, Push-to-talk button.
6830-6A-4 Four-state Telephone Handset Assembly - Red, 60” (1500mm) Armored Cord, Push-to-talk button.
6830-4 Four-state Telephone Handset Assembly - Red, 60” (1500mm) Coiled Cord.
6830-5A-4 Three-state Telephone Handset Assembly - Red, 60” (1500mm) Coiled Cord, Push-to-talk button.
6830-6A-4 Three-state Telephone Handset Assembly - Red, 60” (1500mm) Armored Cord, Push-to-talk button.
6833-4 Four-state Portable Telephone Handset Receptacle, 1-gang Stainless-steel Faceplate.
6830-3 Portable Telephone Handset - Black c/w 60” (1500mm) Coiled Cord.
6700-0061 Portable Telephone Handset - Red c/w 60” (1500mm) Coiled Cord.
6831-1 Frontplate - Flush Mount, Red Finish, Break Glass Type c/w 2 keys.
6831-2 Frontplate - Flush Mount, Red Finish, Non-Break Glass Type c/w 2 keys.
6831-3 Frontplate - Surface Mount Red Finish, Break Glass Type c/w 2 keys.
6831-4 Frontplate - Surface Mounting Red Finish, Non-Break Glass Type c/w 2 keys.
6832-1 Wallbox - Flush or Surface mount, Red nish. 14” (356mm) H x 8-1/2” (216mm) W x 3½” (89mm) D.
TCS-6 Portable handset storage cabinet. Surface mount c/w keylock. Red nish with white lettering.
TB1
1
2
3
5
6
7
8
4
Compatible signal
module.
Printed circuit board
24 V
dc
24 V
dc
UL/ULC listed
power supply
Telephone riser
Control relay module to operate
Telephone in Use indicator light.
47 kW
Normal
(on hook)
TB1
1
2
3
5
6
7
8
4
Compatible signal
module.
Printed circuit board
24 V
dc
24 V
dc
UL/ULC listed
power supply
Telephone
riser
Control relay module to operate
Telephone in Use indicator light.
47 kW
Normal
(on hook)
Active
(off hook)
Three-state operation
Four-state operation
