Hazardous Location
Devices
Door Holders
& Relays
37
SUBMIT

VM

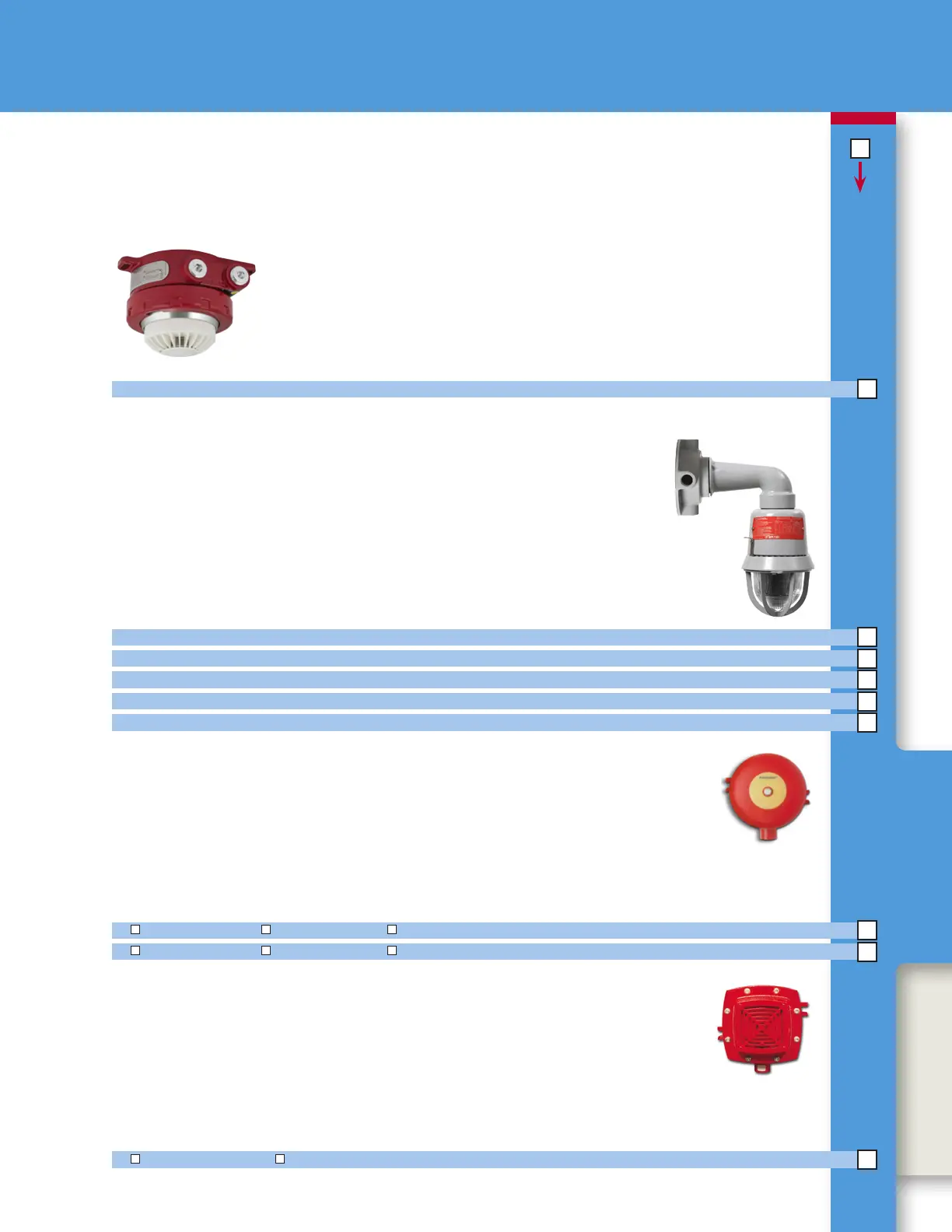

Hazardous Location Devices
SERIES
Hazardous Location Strobes
• Class I, II, or III locations
116DEGEX-FJ hazardous location strobes are life safety signaling appliances designed for installation in
hazardous environments. State-of-the-art technology provide for high visual output and low maintenance.
The 116DEGEX-FJ has negligible in-rush current. When pendant, wall or ceiling mounted, the 116DEGEX-
FJ meets or exceeds the requirements of UL 1971 Signaling Appliance for the Hearing Impaired.
116DEGEX-FJ Explosionproof Strobe, Diode Polarized Data Sheet K85001-0624
116EX-B Wall bracket mounting elbow (required for wall mount applications) Data Sheet K85001-0624
116EX-C Ceiling/wall mounting module (required for wall mount applications) Data Sheet K85001-0624
116EX-P Pendant mounting module - 3/4” (19 mm) NPT Data Sheet K85001-0624
116-GRD Lens Guard Data Sheet K85001-0624
Hazardous Location Bells
• Class I groups B, C and D locations • Class III hazardous locations, for Divisions 1 and 2
• Class II groups E, F and G locations
430D series of hazardous location bells are diode-polarized, heavy duty re bells for use in life safety applications
where a diode supervised signal is required. They can be mounted to any solid surface using two 3/8 inch (10 mm)
bolts and the supplied mounting brackets or to a rigid conduit. The integral explosion-proof housing is mechanically
terminated to accept a standard 3/4 inch -14 National Pipe Taper (NPT) nipple.
439DEX-6AW (6”) 439DEX-8AW (8”) 439DEX-10AW (10”) Bell – 24 Vdc, Red Data Sheet K85001-0399
439DEX-6AW-R (6”) 439DEX-8AW-R (8”) 439DEX-10AW-R (10”) Bell – 24 Vdc, Grey Data Sheet K85001-0399
Hazardous Location Horns
• Class I groups B, C and D locations • Class III hazardous locations, for Divisions 1 and 2
• Class II groups E, F and G locations
888D and 74339U hazardous location horns are diode-polarized, heavy duty, high decibel vibrating horns intended for
use in life safety systems in hazardous (classied) locations. These horns may be mounted to any solid surface using
two bolts. Each unit is supplied with a sealing tting for a 3/4 inch -14 National Pipe Taper (NPT) nipple, and wire leads
for the electrical connection to the life safety system notification appliance circuit.
888D-N5 (120 Vac) 74339U (24 Vdc) Horn – 120 Vac Data Sheet K85001-0397
Notification Appliances
Explosionproof Smoke Detector
Model 30-3013 detectors are high performance smoke detectors built for use in hazardous
locations. They are corrosion-resistant and feature a non-conducting aluminum alloy retaining
ring that protects the detector sensor against the effects of explosions and other catastrophic
events. The retaining ring mounts securely to a companion junction box, which offers several
common port congurations for conduit connection. Together, the ring and box provide a
sturdy protective shell for the detector head.
30-3013A1N12F Explosionproof Smoke Detector Data Sheet K85001-0645
