Notification
Appliances
Hazardous Location
Devices
Door Holders
& Relays
Initiating
Devices
17
Intelligent initiating devices
VM
Intelligent Initiating Devices
SERIES

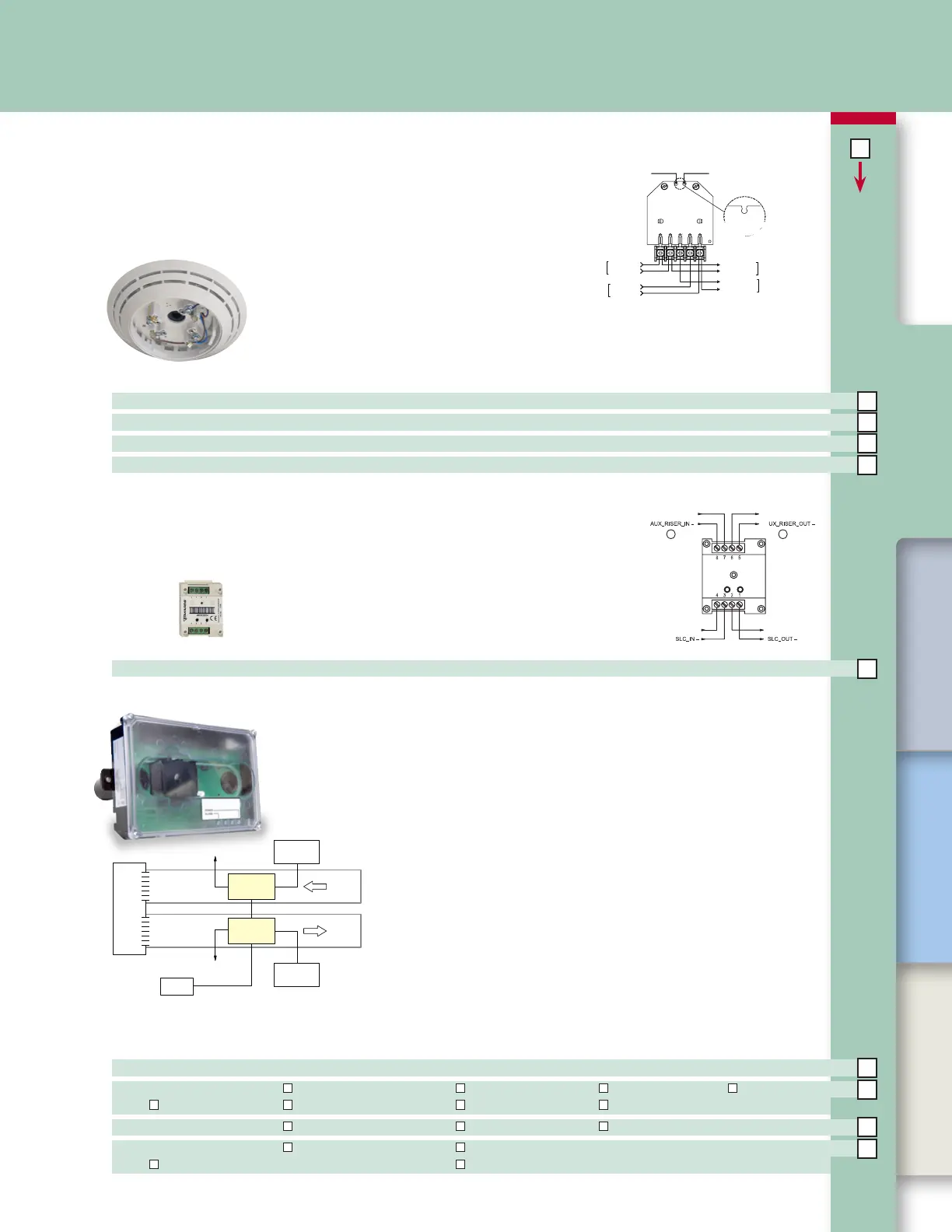

KI-Series Audible Detector Bases
Audible (Sounder) Bases
Volume setting
Default=high volume
Cut for low volume
Tone setting
Default=temporal pattern
Cut for steadytone
To configure
output volume or
tone, cut the
circuit boardas
shown
From power supply
or previous base
From controller
or previous device
To next base
or EOL relay
To next
device
24 VDC (+)
24 VDC (-)
24 VDC (+)
24 VDC (-)
SLC out (+)
SLC out (-)
SLCin (+)
SLCin (-)
SIG+ SIG-
OUTIN IN/OUT
DATA
Sounder Bases for CO and fire detectors add
audible output functions to KI-Series intelligent
detectors. Audible bases can operate as inde-
pendent local alarms, or as part of a zone or system alarm with synchronized audible output.
KI-ABLT is UL listed for sleeping areas and other applications requiring 520 Hz low frequency
audible tones. KI-ABDT and KI-ABLT audible bases may be used with combination smoke/CO
detectors when a GSA-T3T4 module is installed on the same data loop.
KI-ABLT Low Frequency Sounder Base for KI-Series Detectors, 520 hz, T3/T4 Data Sheet K85001-0651
KI-ABDT Sounder Base for KI-Series Detectors, 3k hz, T3/T4 Data Sheet K85001-0651
KI-ABST Sounder Base for KI-Series Detectors, 3k hz, re only Data Sheet K85001-0646
AB4G-SB Surface Box for Audible Base Data Sheet K85001-0646
GSA-T3T4 Temporal Pattern Generator
SLC_IN +
A
UX_RISER_IN +
A
UX_RISER_OUT +
A
SLC_OUT +
1 2
From previous device To next device
The GSA-T3T4 Temporal Pattern Generator is an addressable
device that generates sound patterns for carbon monoxide (CO) and
fire signals for the KI-ABDT or KI-ABLT sounder bases. The control
panel sends synchronization and channel commands to the GSA-
T3T4; the channel selection determines the pattern.
GSA-T3T4 Temporal Pattern Generator for KI-ABDT or KI-ABLT Sounder Bases Data Sheet K85001-0623
SuperDuct
Duct Detectors
Return
air
Duct smoke
detector
Supply
air
Duct smoke
detector
Remote
test station
FACP
HVAC
unit
Alarm relay output
Alarm relay output
Remote
test station
Less than two inches deep, SuperDuct Intelligent addressable smoke
detectors are ideal for installation in ductwork, where space is always at a
premium. Offering the most advanced and most reliable performance in
its class, SuperDuct represents the perfect balance of practical design and
advanced technology.
SuperDuct detectors feature a unique design that speeds installation and
simplifies maintenance. Removable dust filters, conformally coated circuit
boards, and optional water-resistant gaskets keep contaminants away
from components, ensuring years of trouble-free service. When cleaning
is required, the assemblies come apart easily and snap back together in
seconds.
GSA-SD Intelligent Addressable SuperDuct Detector Data Sheet K85001-0584
Sampling Tubes SD-T8 (8”) SD-T18 (18”) SD-T24 (24”) SD-T36 (36”)
SD-T42 (42”) SD-T60 (60”) SD-T78 (78”) SD-T120 (120”)
Remote Test Stations SD-TRM (magnetic) SD-TRK (keyed) GSA-LED (Remote alarm LED)
Accessories SD-GSK (cover gasket kit) SD-MAG (Test magnet kit)
SD-VTK (Air velocity test kit, stoppers only) GSA-SDPCB (PCB sensor kit)
