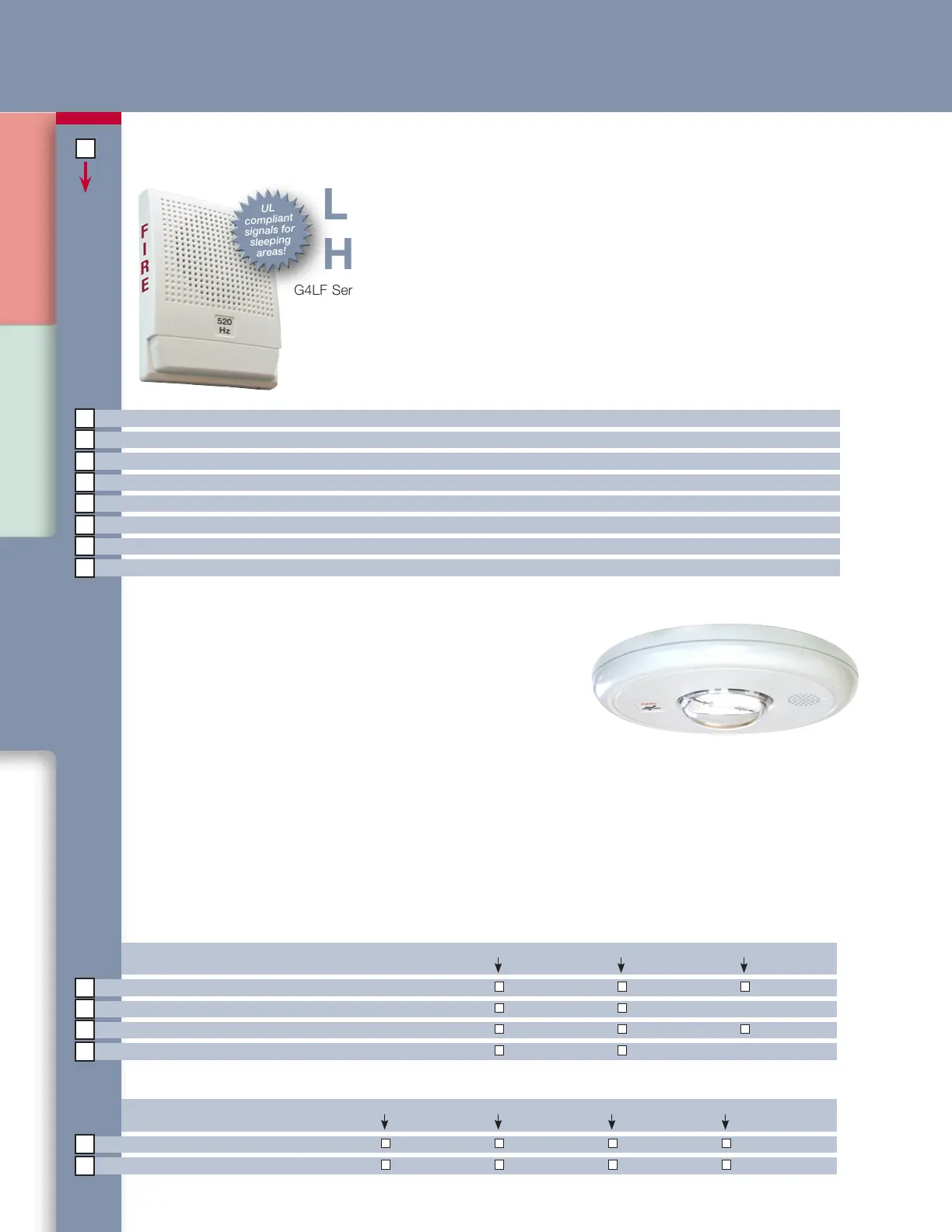

Notification Appliances
SERIES
Genesis G4LF Series Wall Models
Low Frequency (520 Hz)
Horns and Horn-Strobes
G4LF Series notification appliances provide the benefits of Genesis life safety signals with
output suitable for sleeping areas and other applications requiring low frequency audible tones.
These high-performance appliances generate a crisp 520 Hz tone in the standard 3-3 tem-
poral pattern. An optional setting configures the appliance for continuous audible output — a
critical feature for notification appliance circuits that are coded with a CDR-3 coder module.
All G4LF appliances feature field-configurable high and low dB output settings. Horn-Strobe
models feature field-selectable 15, 30, or 75 cd output settings.
G4LFWN-HVM Horn-Strobe, 520 Hz, White Housing, No Marking, 15/30/75 cd Data Sheet K85001-0639
G4LFWF-HVM Horn-Strobe, 520 Hz, White Housing, FIRE Marking, 15/30/75 cd Data Sheet K85001-0639
G4LFRN-HVM Horn-Strobe, 520 Hz, Red Housing, No Marking, 15/30/75 cd Data Sheet K85001-0639
G4LFRF-HVM Horn-Strobe, 520 Hz, Red Housing, FIRE Marking, 15/30/75 cd Data Sheet K85001-0639
G4LFWN-H Horn, 520 Hz, White Housing, No Marking Data Sheet K85001-0639
G4LFWF-H Horn, 520 Hz, White Housing, FIRE Marking Data Sheet K85001-0639
G4LFRN-H Horn, 520 Hz, Red Housing, No Marking Data Sheet K85001-0639
G4LFRF-H Horn, 520 Hz, Red Housing, FIRE Marking Data Sheet K85001-0639
Genesis GC Series Ceiling Models
Strobes and
Horn-Strobes
Genesis ceiling strobes are available in low- or high-candela output models featuring
15 to 95, or 95 to 177 cd output. The setting is selectable with a conveniently-located
switch that remains clearly visible even after final installation, yet it is locked in place
to prevent unauthorized movement after installation.
Genesis horn output reaches as high as 99 dB (peak) and features a unique multiple
frequency tone that results in excellent wall penetration. Horns may be set for low
dB output with a jumper cut that reduces horn output by about 5 dB.
All models are rated for both wall and ceiling installation.
Fire Alarm Appliances
All fire alarm appliances come White housing White housing Red housing
with the “Running Man” Icon no marking with “FIRE” with “FIRE”
Strobe, 15/30/75/110 (standard output) cd, selectable GC-VM GCF-VM GCFR-VM
Strobe, 95/115/150/177 (high output) cd, selectable GC-VMH GCF-VMH
Horn-strobe, 15/30/75/110 (standard output) cd, selectable GC-HDVM GCF-HDVM GCFR-HDVM
Horn-strobe, 95/115/150/177 (high output) cd, selectable GC-HDVMH GCF-HDVMH
Mass Notification Appliances
White housings Clear lens Clear lens Amber lens Amber lens
No “Running Man” Icon no marking with “ALERT” no marking with “ALERT”
Strobe, four standard cd settings GCWN-VMC GCWA-VMC GCWN-VMA GCWA-VMA
Strobe, four high output cd settings GCWN-VMHC GCWA-VMHC GCWN-VMHA GCWA-VMHA
Ceiling Strobes
Data Sheet K85001-0557
Ceiling Horn-strobes
Data Sheet K85001-0559
UL
compliant
signals for
sleeping
areas!
UL
compliant
signals for
sleeping
areas!
