V-Series
Analog Addressable
Initiating Devices
Kidde brand analog addressable detectors are meticulously engineered
to deliver high-perfor mance features, superb reliability, and unbeatable
quality. With their highly stable design, these detectors resist air movement
caused by heating and air conditioning, making them reliable performers
ideally suited to modern building interiors.
The installation and maintenance advantages of Kidde brand analog ad-
dressable detectors add value throughout their service life. The twist-and-
lock design makes short work of installation and maintenance opera tions.
A plastic breakout on the detector housing optionally pre vents removal
from the base except with a special tool.
A bright, easy-to-see LED flashes red when the detector is in alarm, thus
eliminating much of the guesswork when responding to front-panel indica-
tions.
VM Series Device loop
VM Series control panels provide one device loop circuit that supports
125 detectors and 125 module addresses. The VM panel may support a
second, third or fourth loop by means of the appropriate number of VM-
SLC loop expansion modules and VM-SLCXB expander modules. All
loop circuits are supervised for opens, shorts, and grounds.

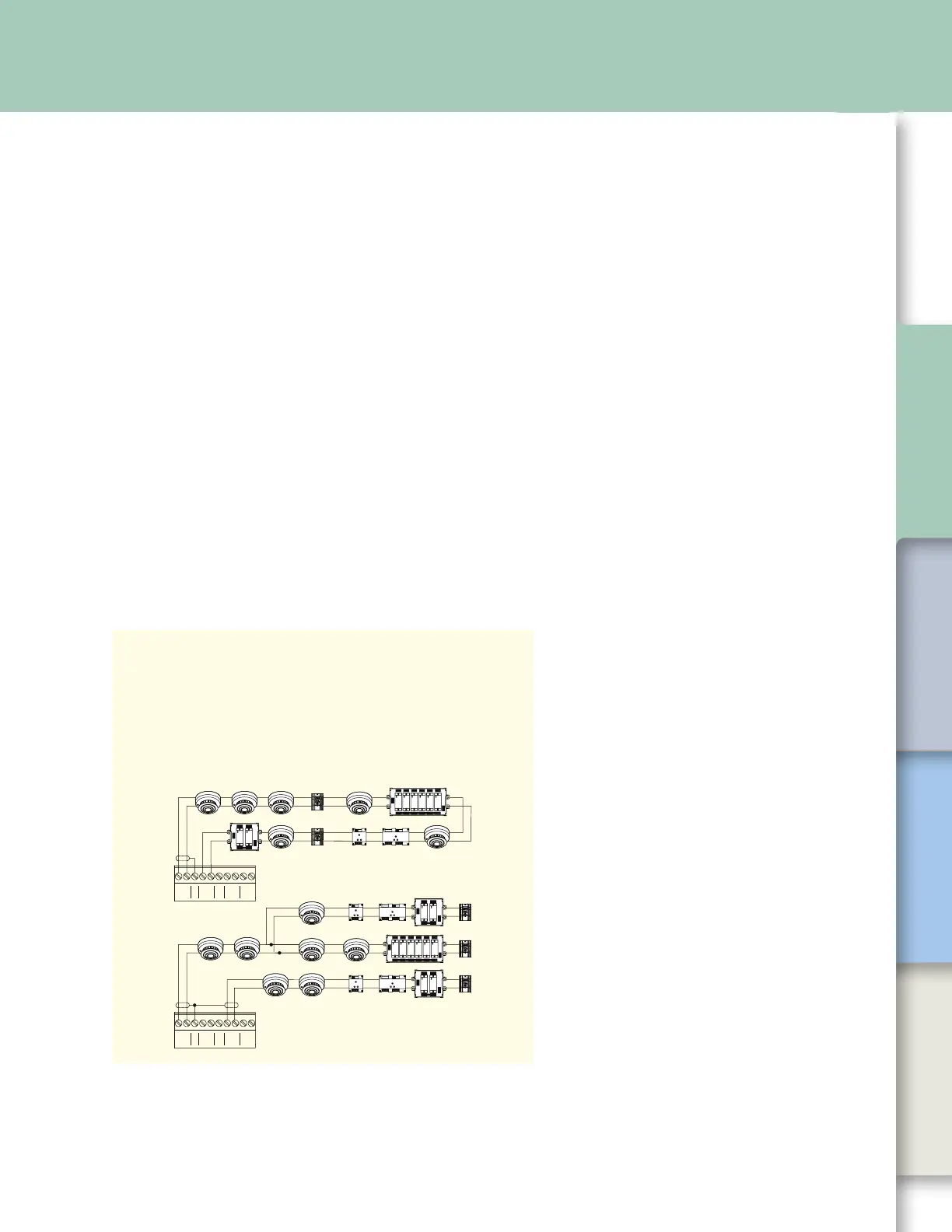

Typical Wiring
B
+-
LOOP1
M
K
S
W
R
P
1
B
H
S
A
+-
LOOP1
AB
+-
LOOP1
B 24+
AUX
C
VM-CPU
TB1/TB2
B
+-
LOOP1
M
K
S
W
R
P
1
B
H
S
A
+-
LOOP1
AB
+-
LOOP1
B 24+
AUX
C
VM-CPU
TB1/TB2
Panel 1 Panel 2Panel x
NETWORKAUDIOAUDIOAUDIOAUDIO
OUT
IN
+-
BB
A IN
A OUT
B IN
B OUT
+- +- +- +-
AA
+-
NETWORKAUDIO AUDIOAUDIOAUDIO
OUT
IN
+-
BB
A IN
A OUT
B IN
B OUT
+- +- +- +-
AA
+-
NETWORKAUDIOAUDIOAUDIOAUDIO
OUT
IN
+-
BB
A IN
A OUT
B IN
B OUT
+- +- +- +-
AA
+-
AUDIO
DATA
KEYAUDIO
REMOTE MIC
AUX OUTAUX IN
VM-PMI
EAEC
VM-CPU
TB5
AUDIOAUDIO
B IN
B OUT
+- +-
AB
RS-485
+-+-
RS-485
R
X
1
T
X
1
T
S
1
R
O
M
1
C
BUSBUS
Lamp Test
Power
Fire Alarm
Supervisory
Ground Fault
Trouble
CH1(+)_IN
CH1(+)_OUT CH1(+)_OUTCH1(+)_IN
CH1()_IN-
CH1( )_OUT-CH1()_OUT-CH1( )_IN-
Controls Enabled
Ack/Silence
Reset
Signal Silence
Drill
Lamp Test
Power
Fire Alarm
Supervisory
Ground Fault
Trouble
VM-CPU
TB5
AUDIOAUDIO AUDIOAUDIO
B INB IN
B OUTB OUT
++ -- ++ --
AA BB
RS-485RS-485
++ -- ++ --
RS-485RS-485RR
XX
11
TT
XX
11
TT
SS
11
RR
OO
MM
11
CC
BUSBUS BUSBUS
TX
RX
RX
Common
Common
DTR
Supervised Printer, RS-232 wiring Unsupervised Printer, RS-232 wiring
CC C
TROUBLE
ALARM
SUP
N
C
N
O
N
O
N
A
N
C
N
C
N
O
EOLR
EOLR EOLR
1
4
2
5
3
6
VM-CPU
TB5
VM-CPU
VM-CPU TB4
VM-CPU TB4
Active/
Supervised
Normal/
Supervised
PS10-4B Power Supply
TB2
Class A Wiring
Class B Wiring
Kidde heat and smoke detectors comprehensive self-diagnostic capabil-
ity. The KI-PD, KI-PCD, and KI-PHD optical detectors continuously adjust
their sensitivity to compensate for changes in the environment such as the
presence of dirt, smoke, temperature, and humidity. These detectors issue
a dirty sensor warning when they reach their preset limit.
The DI-PCD detector, with its on-board CO sensor,
pulls double-duty — continuously monitoring the
environment for signs of smoke, as well as its invis-
ible yet deadly companion, carbon monoxide.
Standard Features
• Optical, heat, and multisensor models available
• Compatible standard, relay, isolator, and audible
bases
• Electronic Addressing including mapping loca-
tion
• Bases mount to standard North American two-
gang or 4" square electrical boxes
• Tamper-resistant feature
• Self diagnostic capability with on-board storage
of results
• Optical detectors feature automatic rate com-
pensated sensitivity adjustment, as well as dirty
sensor warnings
• Manufactured to strict international ISO 9001
standards
• Assembled using surface mount technology for
RF resistance
• Conformally coated components resist dust and
humidity
• Automatic detector test
• Low Profile Design
