VM Series
Head End
22
Intelligent initiating devices
VM
Intelligent Initiating Devices
SERIES

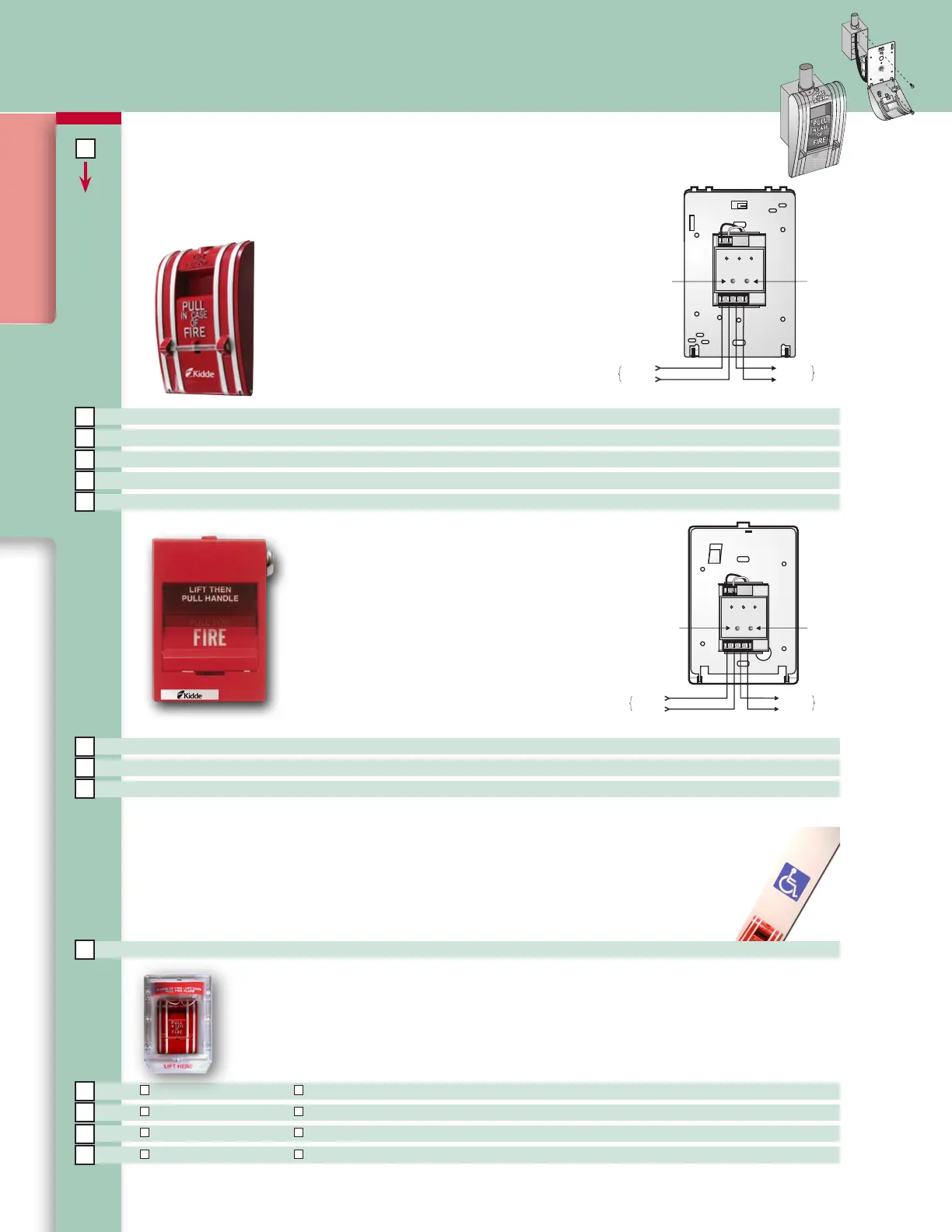

Addressable initiating
Manual Pull Stations
LIFT
NORMAL
8
4
7
32
1
DATA OUT (+)
DATA IN (+)
DATA OUT (-)
DATA IN (-)
To Next Device
From Signature Controller
or Previous Device
Green LED
(Normal)
Red LED
(Alarm/Active)
REAR VIEW
TB1
TB2
8
4
7
32
1
DATA OUT (+)
DATA IN (+)
DATA OUT (-)
DATA IN (-)
To Next Device
From Signature Controller
or Previous Device
Green LED
(Normal)
Red LED
(Alarm/Active)
REAR VIEW
TB1
TB2
Single Action Pull Stations
GSA-M270 series manual pull stations are made from
die-cast zinc and finished with red epoxy powder-
coat paint. With positive pull-lever operation, one
pull on the station handle breaks the rod and turns
in a positive alarm. Where two-stage operation is re-
quired, GSA-M270P pre-signal models are equipped
with a general alarm (GA) keyswitch.
GSA-M270 One Stage Fire Alarm Station, English Markings Data Sheet K85001-0279
GSA-M270P Two Stage (Pre-signal) Fire Alarm Station, English Markings Data Sheet K85001-0279
276-K2 GA Key — for pre-signal station Data Sheet K85001-0279
270-GLR 20 Break-rods — for GSA-M270 series Data Sheet K85001-0279
276B-RSB Surface Mount Box, Red — for GSA-M270 series Data Sheet K85001-0279
Double Action Pull Stations
The double action, single stage GSA-M278 station is a
contemporary style manual station made from durable
red LEXAN. To initiate an alarm, first lift the upper door,
then pull the alarm handle.
GSA-M278 Double Action (One Stage) Fire Alarm Station, English Markings Data Sheet K85001-0279
276B-RSB Surface Mount Box, Red — for GSA-M278 series Data Sheet K85001-0279
276-GLR 20 Break-rods — for GSA-M278 series Data Sheet K85001-0279
Manual Station Relocator
The Manual Station Relocator is designed to lower the height of a fire alarm pull station to meet ADA
requirements. Most existing pull stations are mounted 60 inches (1524mm) or higher above the floor.
The Relocator lowers the height to 48 inches (1220mm) without the need for pulling new wires or
moving the existing electrical box.
RR-32RL Pull Station Relocator Data Sheet K85001-0351
Stopper II
This unique device helps prevent false alarms without restricting legitimate ones. It consists of a tamper-
proof clear LEXAN polycarbonate shield and frame that fits easily over manual pull stations. When lifted,
it sounds a piercing warning horn.
STI-1100 (Flush) STI-1130 (Surface) Stopper II with Horn Data Sheet K85001-0491
STI-1200 (Flush) STI-1230 (Surface) Stopper II without Horn Data Sheet K85001-0491
STI-3100 (2" Spacer) STI-3004 (Conduit Insert) Spacers Data Sheet K85001-0491
STI-3002 (Gasket) STI-3003 (Conduit Gasket) Weatherproong Data Sheet K85001-0491
