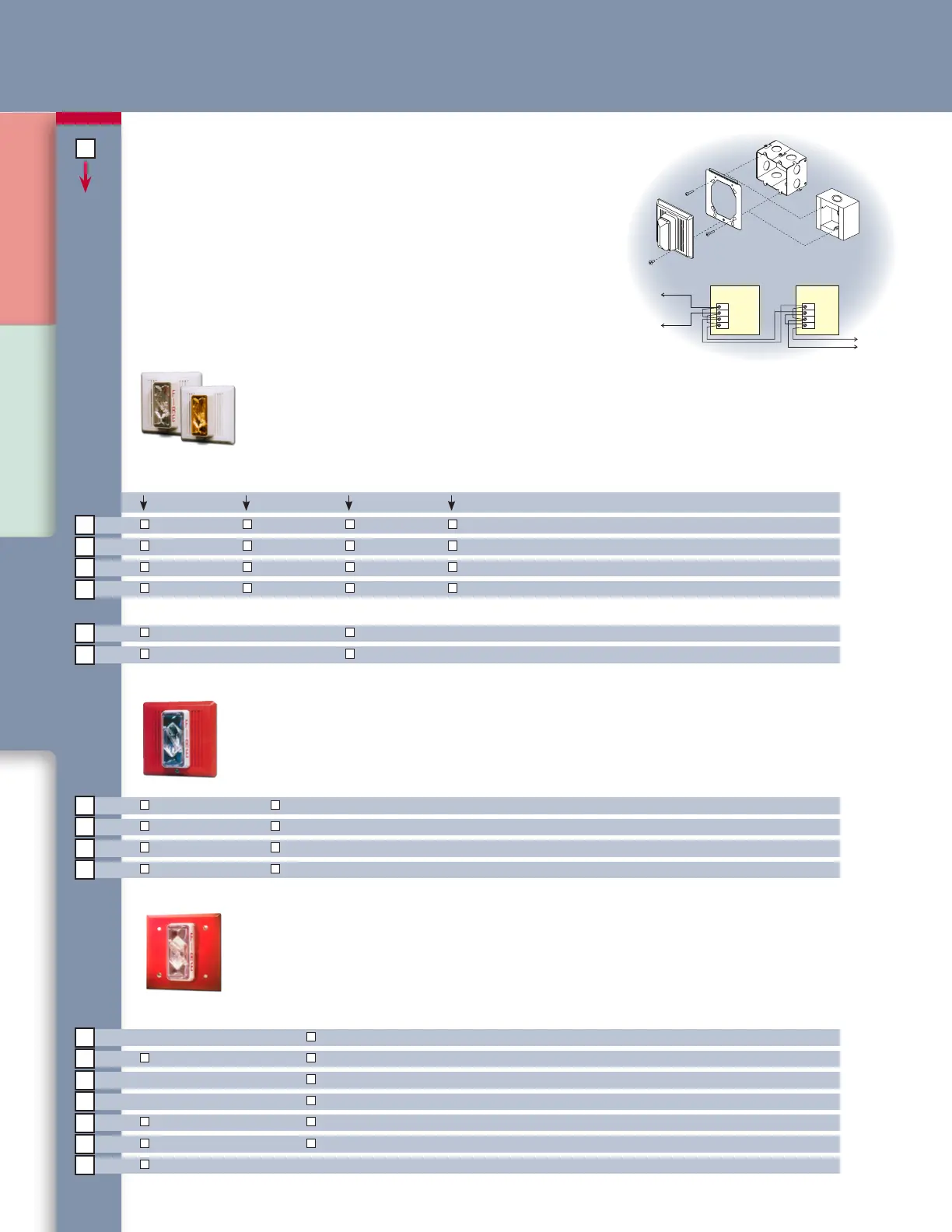

32
VM Series
Head End
Initiating
Devices
Notification
Appliances
SUBMIT
Intelligent initiating devices
VM
Notification Appliances
SERIES
Housing
Surface Box (optional)
North American
2-gang electrical box
Mounting Plate
Single Captive Mounting Screw
H+
H-
S+
S-
Horn/Strobe
H+
H-
S+
S-
To Next Device
or EOL Resistor
To Fire Alarm
Control Panel
Signal Circuit
+
+
First Device
-
-
Horn/Strobe
Re-Entrant Speakers and Speaker-Strobes
Re-entrant speakers feature a sealed, high efficiency compression driver that’s both weatherproof and
vermin proof. This makes them ideal for public places and outdoor areas such as parking garages
and transport terminals. All Integrity speakers include a DC Blocking Capacitor that permits electrical
supervision of the audio distribution circuit. Models for 25Vrms and 70Vrms circuits are available.
Fire Alarm Appliances, clear lenses, Data Sheet K85001-0317
15/75 cd 30 cd 110 cd Speaker only
INT-7AR2 757-3A-RS25 INT-8AR2 757-1A-RS25 Speaker-strobe, 25 V, red housing
INT-7AR2W 757-3A-RS25W 757-8A-RS25W 757-1A-RS25W Speaker-strobe, 25 V, white housing
INT-7AR 757-7A-RS70 INT-8AR INT-R Speaker-strobe, 70 V, red housing
INT-7ARW INT-3ARW INT-8ARW 757-1A-RS70W Speaker-strobe, 70 V, white housing
Mass Notification Appliances, amber lenses, Data Sheet K85001-0317
757-7A-RS25WA (12/75 cd) 757-8A-RS25WA (88 cd) Speaker-strobe, 25 V, white housing
757-7A-RS70WA (12/75 cd) 757-8A-RS70WA (88 cd) Speaker-strobe, 70 V, white housing
Temporal Horns and Horn-Strobes
During installation, the Horn is configured for steady or temporal tone signal. When temporal output
is selected, all Horns on a common two-wire circuit are self-synchronized. Integrity Series Horns
emit a low frequency “growling” tone that demands attention. Horns can be configured for either
high output (98 dBA) or low output (94 dBA); and are listed for outdoor use.
INT-T (Red) INT-TW (White) Temporal Horn Data Sheet K85001-0341
INT-7AT (Red) INT-7ATW (White) Temporal Horn-Strobe, 15/75cd Data Sheet K85001-0341
INT-8AT (Red) INT-8ATW (White) Temporal Horn-Strobe, 110cd Data Sheet K85001-0341
INT-WBW (Red) INT-WB (White) Outdoor Box Data Sheet K85001-0341
4” Square Box Mount Strobes
405 Series strobes are self-synchronized to flash at one fps across their full operating voltage range.
UL 1971 synchronization requirements are achieved when used with the MG1M Signal Master.
Strobes must be connected to signal circuits that output a constant (not pulsed) voltage. A diode
is used to allow full signal circuit supervision. 405 Series strobes are suitable for outdoor use and
installed to a standard four-inch square electrical box.
4MS-5AW (White) Strobe - 15 cd Data Sheet K85001-0305
4MS-7AR (Red) 4MS-7AW (White) Strobe - 15/75 Data Sheet K85001-0305
4MS-3AW (White) Strobe - 30 cd Data Sheet K85001-0305
4MS-6AW (White) Strobe - 60 cd Data Sheet K85001-0305
4MS-8AR (Red) 4MS-8AW (White) Strobe - 110 cd Data Sheet K85001-0305
CS405-7A-T (15/75 cd) CS405-8A-T (110 cd) Strobe - Weatherproof (red) Data Sheet K85001-0305
74347U Outdoor Box for CS model (red) Data Sheet K85001-0305
Enhanced Integrity Series
Harsh Environment
Signals
All Enhanced Integrity devices are UL 1971 listed for both wall and ceiling orien-
tation. Enhanced Integrity strobes meet the latest UL1971 synchronization re-
quirements when used with Genesis sync sources. Integrity devices are shipped
with wall mount style “FIRE” lens markings. Other lens markings are available.
