Detector mounting bases have wiring terminals that are accessible from the
room-side after mounting the base to the electrical box. The bases mount to
North American one-gang boxes and to 3½ inch or 4 inch octagon boxes, 1½
inches (38 mm) deep. They also mount to European BESA and one-gang boxes
with 60.3 mm fixing centers. The KI-SB4, KI-RB4, and KI-IB4 also mount to
North American 4 inch sq. electrical boxes. They include the GSA-TS4 Trim Skirt,
which is used to cover the “mounting ears” on the base. The KI-ABST mounts to
a 4 inch square box only.

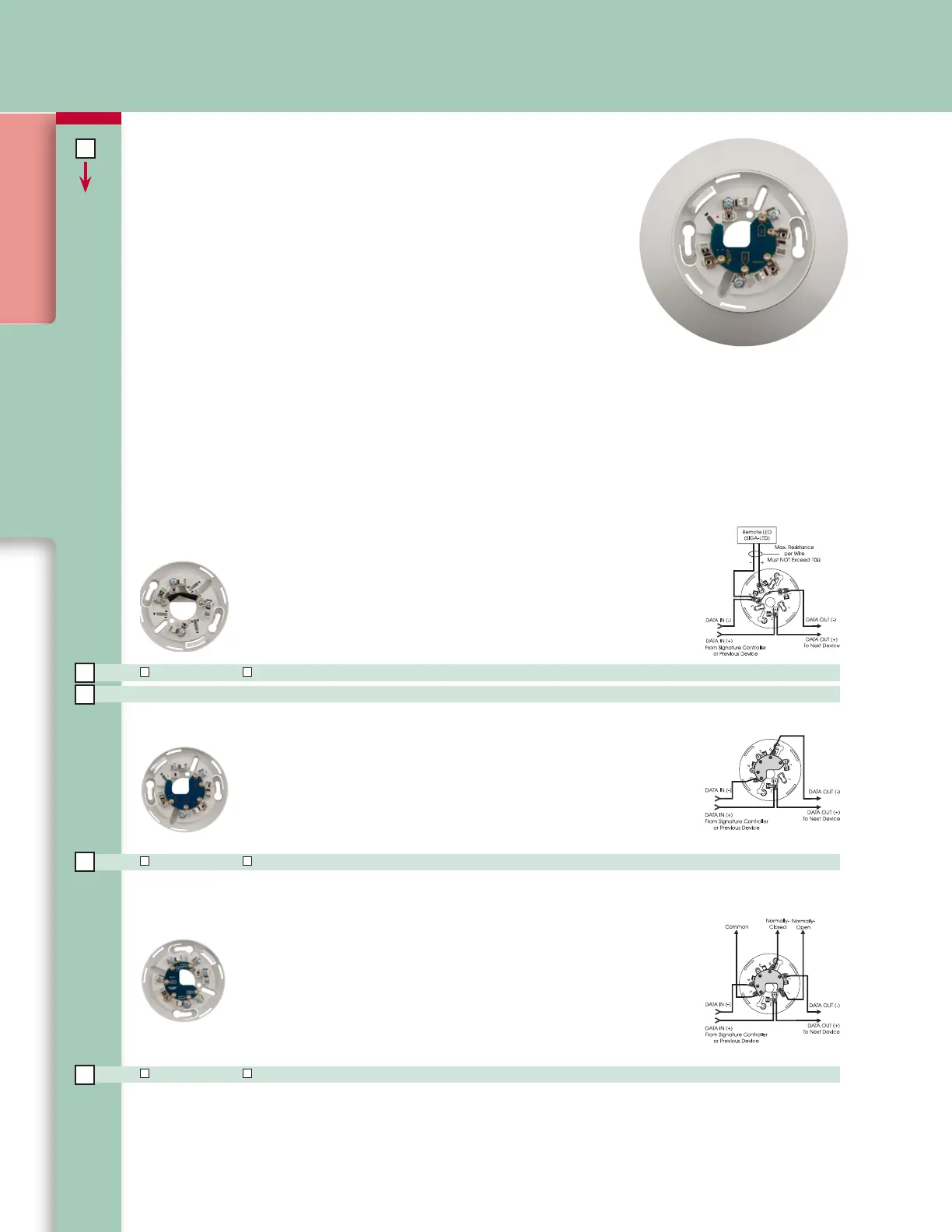

KI-Series Detector Bases
Standard Detector Base
Standard detector bases provide roomside wiring terminals. They mount to
North American one-gang box, 3½ or 4-inch octagon boxes, or 4-inch square
electric box. Bases for 4-inch square boxes include a trim skirt to conceal the
electric box and provide a finished appearance.
KI-SB KI-SB4 (c/w 4-inch trim skirt) Standard Detector Base Data Sheet K85001-0646
GSA-LED Remote alarm LED (use with standard base only) Data Sheet K85001-0592
Isolator Detector Base
Isolator detector bases provide room-side wiring terminals and includes a
built-in line fault isolator. Models with integral switches allow the detector to
be removed from its base without causing the isolator to operate. Mounts to
North American one-gang box, 3½ or 4-inch octagon boxes, or 4-inch square
electrical boxes.
KI-IB KI-IB4 (c/w 4-inch trim skirt) Isolator Detector Base Data Sheet K85001-0646
Relay Detector Base
This base includes a relay. Normally-open or closed operation is selected
during installation. The dry contact is rated for 1 amp (pilot duty) @ 30 Vdc.
The relay’s position is supervised to avoid accidentally jarring it out of position.
The relay base does not support the SIGA-LED remote LED. It mounts to
North American one-gang boxes, 3½ or 4-inch octagon boxes, or 4-inch
square electrical boxes. Bases for 4-inch square boxes include a trim skirt.
KI-RB KI-RB4 (c/w 4-inch trim skirt) Relay Detector Base Data Sheet K85001-0646
KI-Series
Bases
Base with 4-inch
trim skirt
