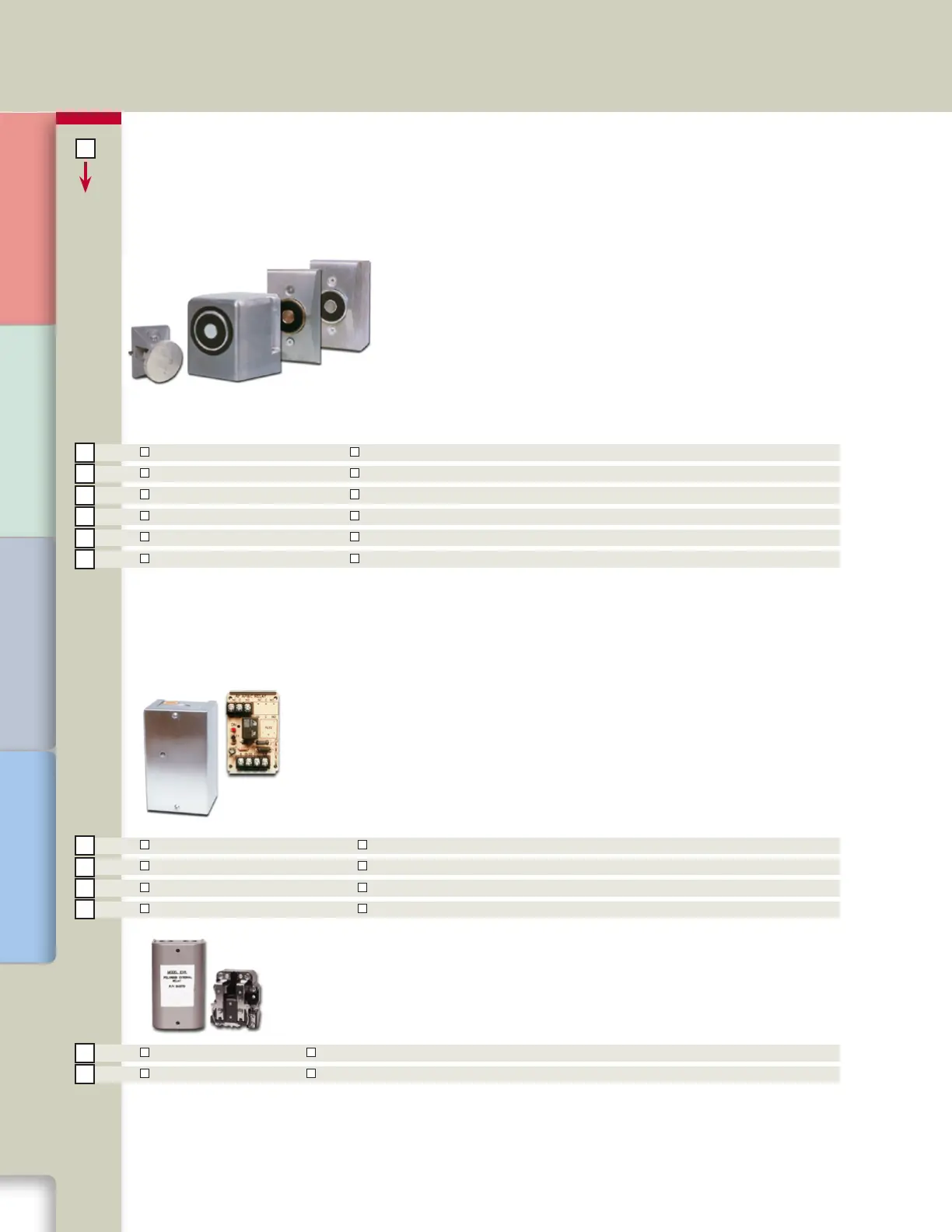

Door Holders & Relays
SERIES
Door Holders
Electromagnetic Door Holders
Electromagnetic door holders keep doors open until signaled by the fire alarm
system, a heat detector, a smoke detector, or an electrical switch. Door holders
should be installed wherever doors may be effectively used to confine smoke
and fire, or where the release of a self-closing door from a remote location
is required. Fail-safe operation is an inherent feature of these door holders. If
power fails, doors are released automatically, but may be opened or closed
manually at any time. All units are free of moving parts, are self-contained, and
require no maintenance. Door holders have a holding force of approximately
15-25 Lbf (66-111N).
1501-AQN5 (Single Door) 1502-AQN5 (Double Door) Floor Mounted Data Sheet E85001-0421
1504-AQN5 (Long Catch Plate) 1505-AQN5 (Short Catch Plate) Flush Wall Mounted Data Sheet E85001-0421
1508-AQN5 (Surface) 1505-AQN9 (Completely ush) Wall Mounted Data Sheet E85001-0421
1500-1 (1.5” Extension) 1500-2 (2.5” Extension) Catch Plate Data Sheet E85001-0421
1500-7 (5.25 to 7.5” Extension) 1500-12 (7.5 to 12” Extension) Catch Plate Data Sheet E85001-0421
CS2595-5 (short) CS2598-5 (long) Replacement Armature Data Sheet E85001-0421
Relays
Four-Voltage SPDT/DPDT Control Relays
MR Series multi-voltage control relays are ideal for applications where local contacts are
required for system status, remote contacts, or for control of electrical loads and general pur-
pose switching. They are suitable for use with HVAC temperature control, fire alarm, security,
energy management, and lighting control systems. Relays provide 10-Amp contacts, which
may be operated by one of four input control voltages. Each relay position contains a red
LED that indicates the relay coil is energized. Relays may be snapped apart from a standard
four-module assembly and used independently.
MR-101/T (with mounting hardware) MR-101/C (in metal enclosure) Single SPDT relay Data Sheet E85300-02762
MR-104/T (with mounting hardware) MR-104/C (in metal enclosure) 4-position SPDT relay Data Sheet E85300-02762
MR-201/T (with mounting hardware) MR-201/C (in metal enclosure) Single DPDT relay Data Sheet E85300-02762
MR-204/T (with mounting hardware) MR-204/C (in metal enclosure) 4-position DPDT relay Data Sheet E85300-02762
Heavy Duty DPDT Power Relays
MR-199 heavy duty power relays are designed for control applications where 30-Amp DPDT
contacts are required. Two models are available: a 115Vac coil and a 24Vdc coil, each of
which may be mounted in a rugged steel enclosure.
MR-199X-13 (relay only) MR-199X-13/C (in metal enclosure) Power Relay — 24 VDC Data Sheet E85300-02765
MR-199AX-14 (relay only) MR-199AX-14/C (in metal enclosure) Power Relay — 120 VDC Data Sheet E85300-02765
24 Vac 60 Hz
24 Vdc
120 Vac 60 Hz
