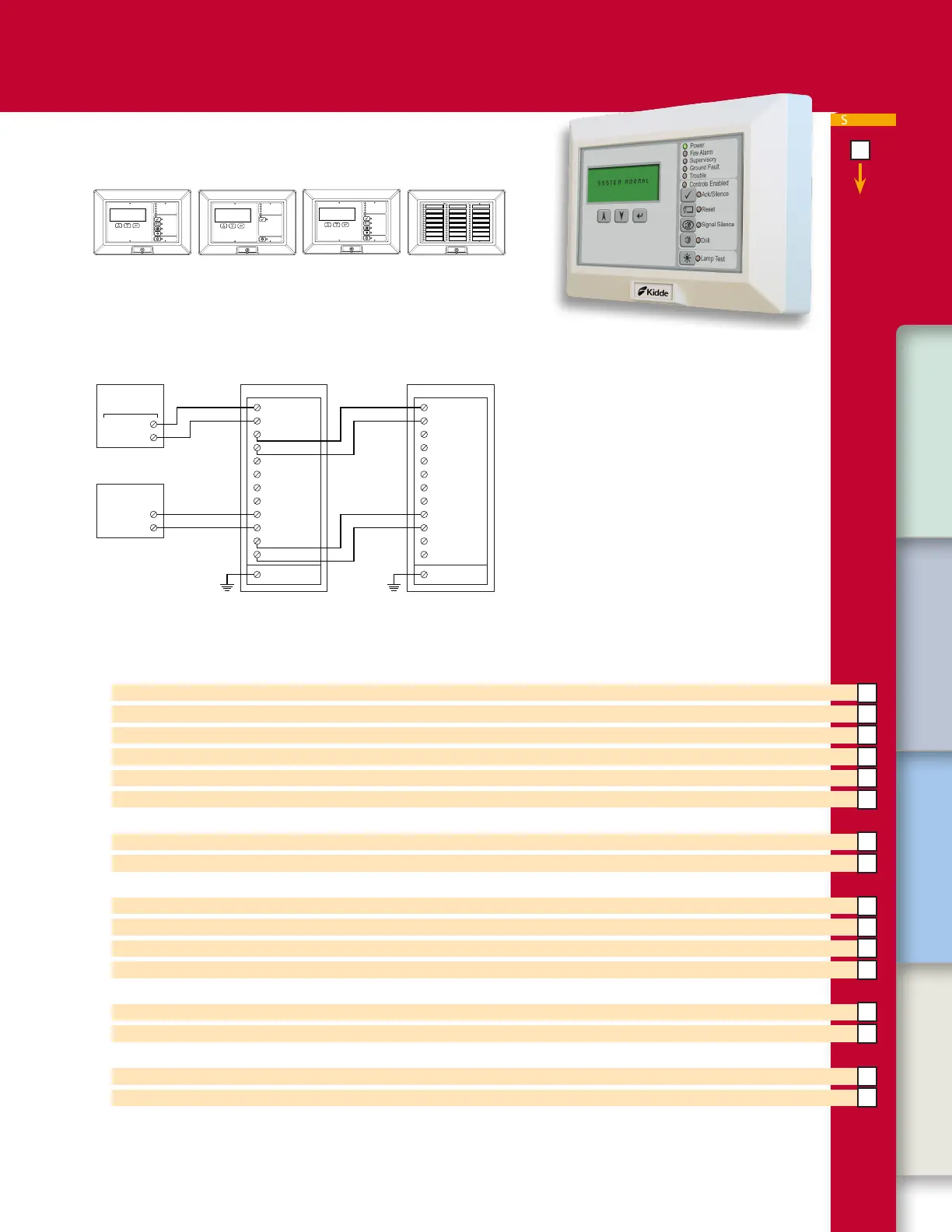

Each VM Series node can accommodate up to
30 R-Series and graphic annunciators. R-Series
Annunciators are high-performance devices that
offers LCD or LED annunciation. Models are
available with and without common controls.
R-Series annunciators and expanders are
mounted on a standard 4-inch square electrical
box, using the included mounting ring. They can
also be surface mounted in locking steel enclo-
sures. Three dierent enclosures are available.
A keyswitch and graphic annunciator interface is
available for R-Series annunciator applications.
The keyswitch enables or disables common
controls. The graphic annunicator interface
card supports 32 LEDs and 16 switches on the
graphic panel display, with expander additional
48 LEDs and 12 switches.
Remote Annunciators
K-RLCD LCD text annunciator without common controls. English. Data Sheet K85005-0128
K-RLCD-R LCD text annunciator without common controls. English. Red. Data Sheet K85005-0128
K-RLCD-C LCD text annunciator with common controls. English. Data Sheet K85005-0128
K-RLCD-CR LCD text annunciator with common controls. English. Red. Data Sheet K85005-0128
K-RLED-C 16-pair LED zone annunciator with common controls. English. Data Sheet K85005-0128
K-RLED-CR 16-pair LED zone annunciator with common controls. English. Red. Data Sheet K85005-0128
Remote Expanders
K-RLED24 24-pair LED zone expander with expander cable and zone card insert. Data Sheet K85005-0128
K-RLED24R 24-pair LED zone expander with expander cable and zone card insert. Red. Data Sheet K85005-0128
Enclosures
RA-ENC1 One-position enclosure for Remote Annunciator. Data Sheet K85005-0128
RA-ENC2 Two-position enclosure for Remote Annunciator and one Remote Expander. Data Sheet K85005-0128
RA-ENC3 Three-position enclosure for Remote Annunciator and two Remote Expanders. Data Sheet K85005-0128
LSRA-SB Surface Mount Box - for single R Series annunciator. Data Sheet K85005-0128
Graphic Annunciator Driver
GCI Graphic Annunciator Driver Data Sheet K85005-0128
GCIX Graphic Annunciator Expander - supports 48 LEDs and 12 switches. Data Sheet K85005-0128
Accessories
RKEY Remote key switch on plate for enabling or disabling common controls. Data Sheet K85005-0128
27193-16 Electrical box, surface mount, white, single-gang, for RKEY. Data Sheet K85005-0128
R-Series Annunciators
Class B Wiring
Annunciator
CH2 (–) OUT
CH2 (+) OUT
CH2 ()IN–
CH2 (+) IN
CH1 ()OUT–
CH1 (+) OUT
CH1 ()IN–
CH1 (+) IN
24V (+) IN
24V ()IN–
GROUND
24V (+) OUT
24V ()OUT–
24 VDC +
LISTED 24 VDC
SUPPLY
24 VDC –
Annunciator
CH2 (–) OUT
CH2 (+) OUT
CH2 ()IN–
CH2 (+) IN
CH1 ()OUT–
CH1 (+) OUT
CH1 ()IN–
CH1 (+) IN
24V (+) IN
24V ()IN–
GROUND
24V (+) OUT
24V ()OUT–
CH2 –
CH2 +
CH1 –
CH1 +
FACP
RS-485
Annunciator
CH2 (–) OUT
CH2 (+) OUT
CH2 ()IN–
CH2 (+) IN
CH1 ()OUT–
CH1 (+) OUT
CH1 ()IN–
CH1 (+) IN
24V (+) IN
24V ()IN–
GROUND
24V (+) OUT
24V ()OUT–
24 VDC +
LISTED 24 VDC
SUPPLY
24 VDC –
FACP
Annunciator
CH2 (–) OUT
CH2 (+) OUT
CH2 ()IN–
CH2 (+) IN
CH1 ()OUT–
CH1 (+) OUT
CH1 ()IN–
CH1 (+) IN
24V (+) IN
24V ()IN–
GROUND
24V (+) OUT
24V ()OUT–
RS-485
CH1 +
CH1 –
Annunciator
A
B
C
D
E
F
V( )–
V (+)
OUT
First Expander
A
B
C
D
E
F
V( )–
V (+)
IN
A
B
C
D
E
F
V( )–
V (+)
OUT
Second Expander
A
B
C
D
E
F
V( )–
V (+)
IN
A
B
C
D
E
F
V( )–
V (+)
OUT
