PMC-A 65
5
External Control

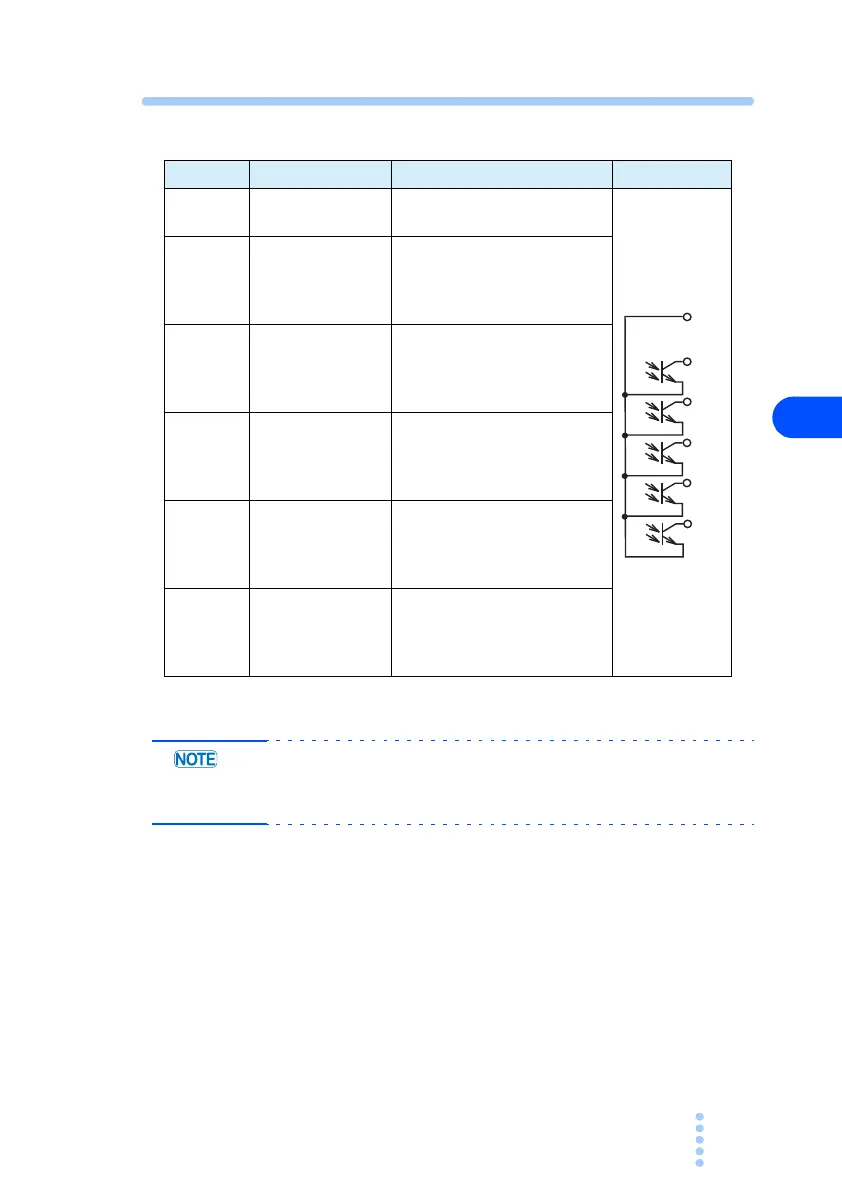

Ta bl e 5-5 St at us output
・ Maximum rating of each signal terminal
Maximum applied voltage (for each 1 pin) : 30 V,
Maximum current (sink) approx. 5 mA.
Pin No. Signal name Description Circuit
26 STATUS COM
Common for status output.
Photocoupler emitter output.
1 CV STATUS
Set to ON status when in
constant voltage mode.
Photocoupler collector out-
put.
2 CC STATUS
Set to ON status when in
constant current mode.
Photocoupler collector out-
put.
23 ALM STATUS
Set to ON status when in pro-
tection function is activated.
Photocoupler collector out-
put.
24 OUTON STATUS
Set to ON status when the
OUTPUT is turned on.
Photocoupler collector out-
put.
25 PWRON STATUS
Set to ON status when the
POWER is turned on.
Photocoupler collector out-
put.
26
1
2
25
23
24
