Kinetico Essential Series - Valve Maintenance; Venturi Servicing

Technical Manual
13
V. Valve Maintenance

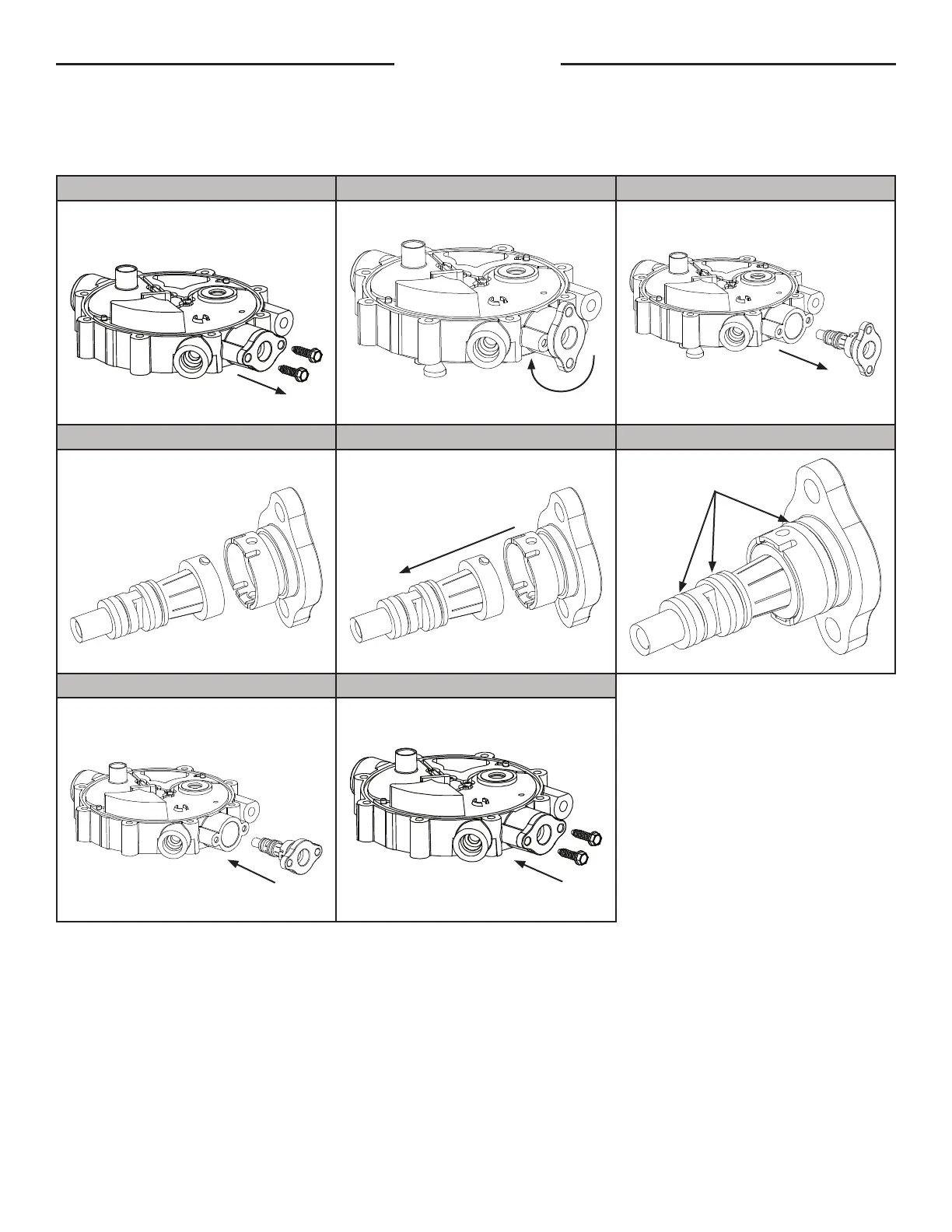

Servicing the Venturi
1. Remove screws 2. Twist plug 90˚ 3. Pull out venturi / plug assembly
Remove screws using a 1/4" nut drive
4. Remove venturi 5. Snap fit new venturi 6. Lubricate O-rings with silicone (3 places)
Use small screwdriver to pry venturi out of
plug (insert screwdriver near tab).
Snap fit in after lining up tabs on venturi
with matching holes in plug.
7. Push venturi / plug back into valve 8. Insert screws
Make sure screw holes on plug align with
screw holes on valve.
Insert screws using a 1/4" nut driver
