IX. Parts

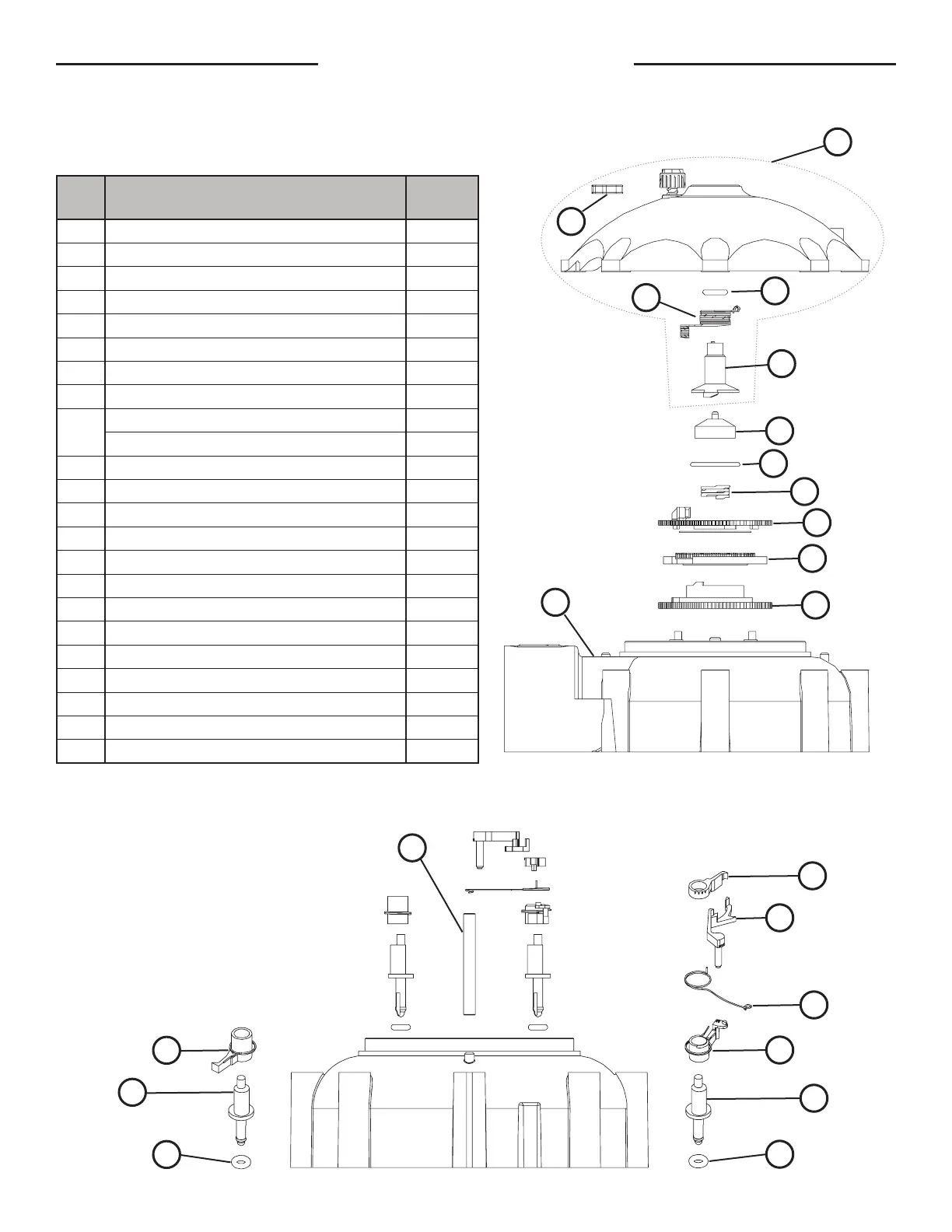

Level One Assembly
Dwg.
No.
Description Part No.
1 Solitaire Cap Assembly 15030
2 Actuator O-ring - 010 1460
3 AccuDial Return Spring 14706A
4 Solitaire Demand Override Actuator 14707A
5 Balance Piston w/Guide 14927
6 Balance-Piston O-ring 1070A
7 Balance-Piston-Spring 5448
8 Upper Meter Disc 14708
9
Lower Meter Disc A - J - Gold 16023A
Lower Meter Disc 10 – Platinum 14818B
10 Solitaire Control Disc 14712C
11 Solitaire Level One w/Cer & Stem Gear Asy. 14755A
12 AccuDial Lockout Clip (ALC) 16213
13 Regeneration Drive Pawl Assembly 5511
14 Solitaire Eccentric Pin 14716
15 Stem Gear O-ring 2657
16 Solitaire Support Pin 14717
17 Meter Drive Pawl - AccuDial 14719A
18 No-Back Pawl - AccuDial 14715A
19 Meter Drive Pawl Spring 7010A
20 Pawl Asy, Regen Start - AccuDial 15031
-- Module MN BS Gold 15860
-- Module MN BS Platinum 15910
