Kinetico Essential Series User Manual

Technical Manual
35

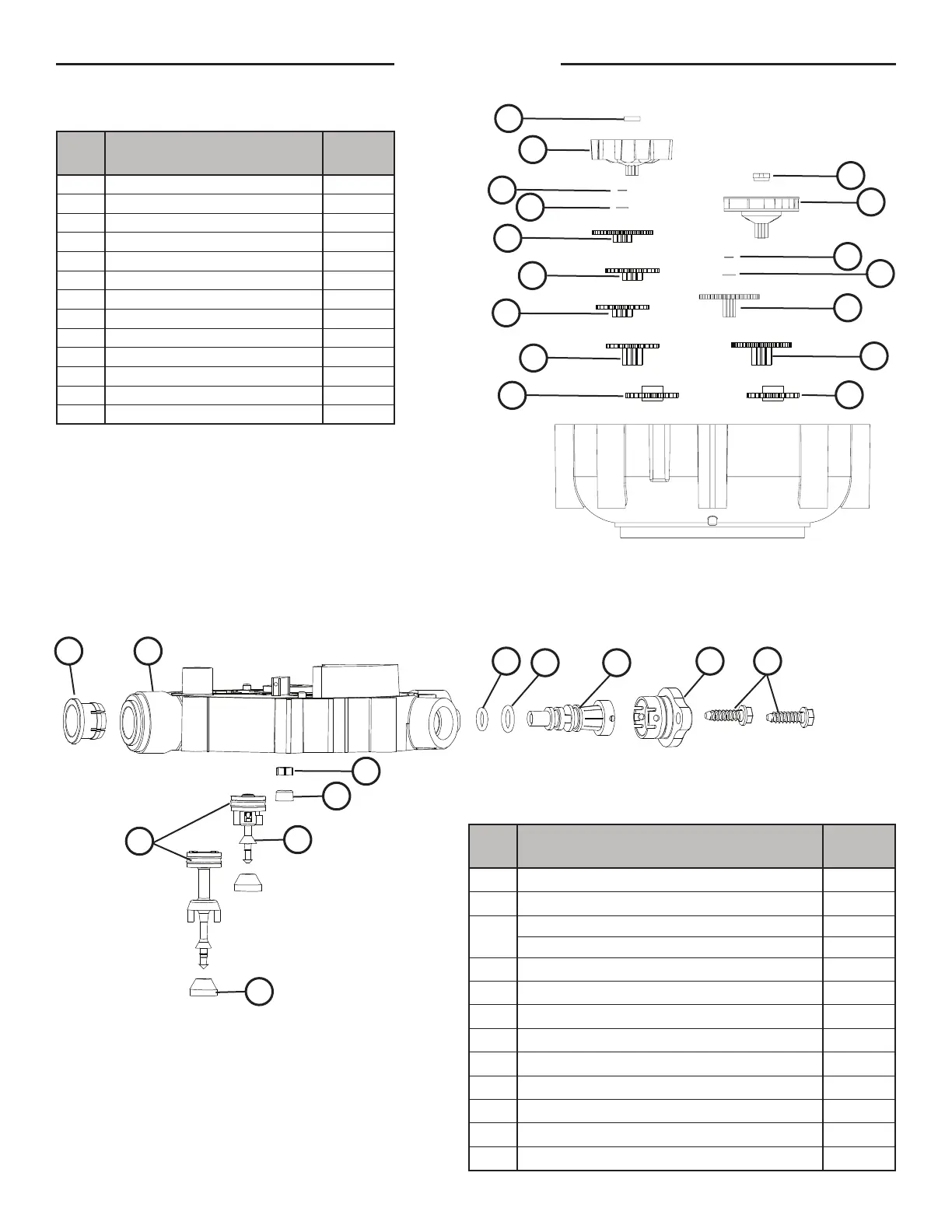

Level One Gearing Parts
Dwg.
No.
Description Part No.
1 Two-Stack Turbine Retainer 14812A
2 Turbine, Regen 8 Gear 11015A
3 E-ring 1022
4 Level One Gear Washer 1773
5 Gear #4 1525
6 Gear #3 1524
7 Level One Stem Gear 1521
8 Meter Turbine Retainer 7859
9 Meter Turbine 14724
10 Gear #11 2431
11 Gear #12 2432
12 Gear #13 2433
13 Gear #20 2440B
Level Three Assembly Parts
Dwg.
No.
Description Part No.
1 SS Cap Screw 1010
2 Venturi Access Plug w/O-rIng 14807
3
Solitaire Venturi - Tan-Essential Gold 14809
Solitaire Venturi - Orange-Essential Platinum 14803
4 O-ring -011 10634
5 Actuator O-ring -010 1460
6 Solitaire Level Three - Welded PBP 14791D
7 Insert Collet – 0.50 14728
8 Flow Control – 0.20 - Blue 9183B
9 Spring-Loaded Control Valve, w/Quad 13720A
10 Control/Drain Valve Seal 7869
11 Quad Ring Drain Control 1590
12 Solitaire L3, Filter Disc 15821A
1
5
7
3
2
6
4
8
10
12
3
9
11
13
7
4
12
34
5
7 6
8
12
9
10
11
