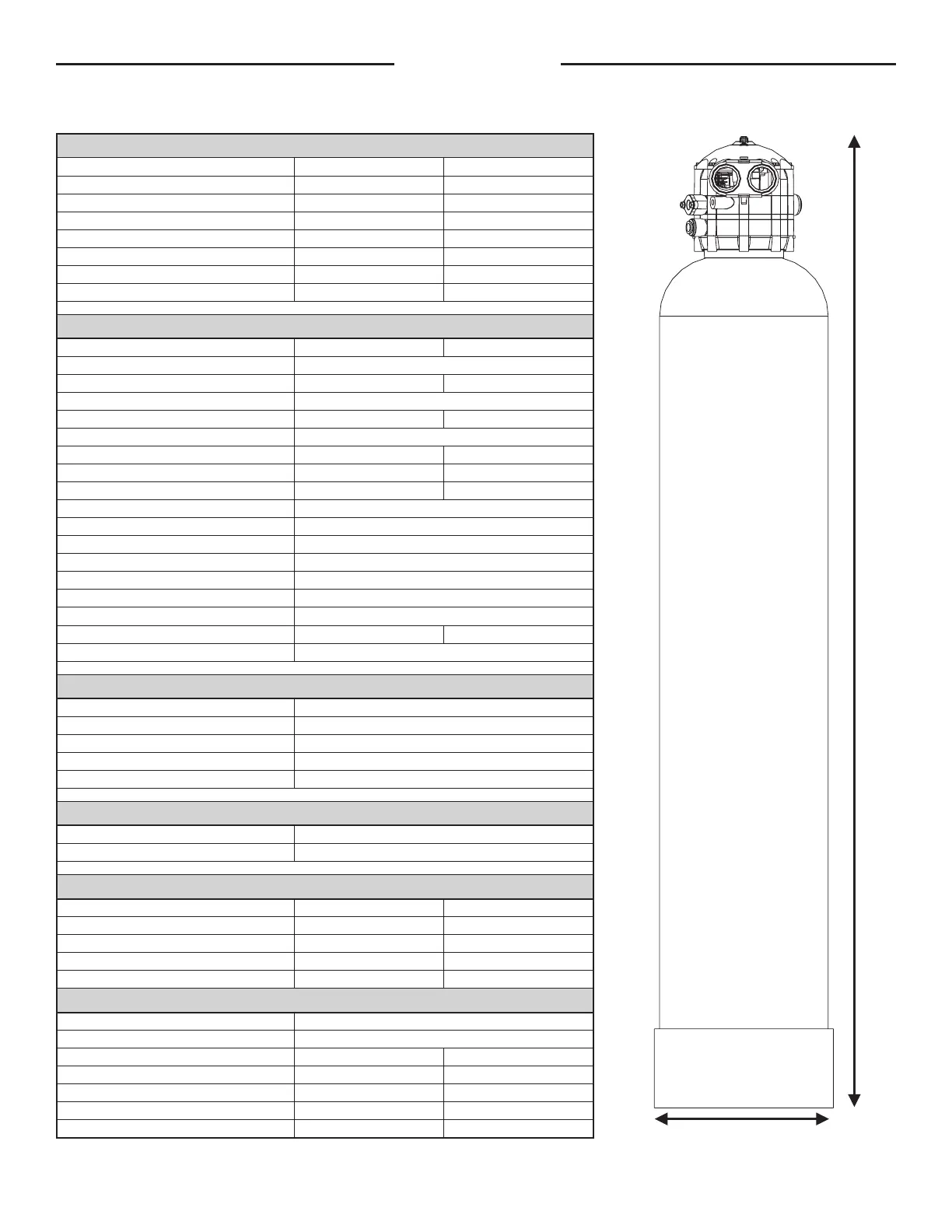

Technical Manual
7
Essential Platinum
Design Specifications
Flow Rate @ 15 psid 10.0 gpm 38 Lpm
Flow Rate @ 30 psid 15.0 gpm 57 Lpm
Pressure Range 25 - 125 psi 1.7 - 8.6 bar
Temperature Range 35˚- 120˚F 2˚- 50˚C
Free Chlorine ≤2.0 mg/L ≤2.0 mg/L
Compensated Hardness ≤50 gpg ≤855 mg/L
Iron (ferrous) <0.5 mg/L <0.5 mg/L
Iron (ferric) <0.01 mg/L <0.01 mg/L
System Components
Media Vessel (Qty. 1) 9" x 35" 229 mm x 889 mm
Media Vessel Construction Fiberglass Wrapped Polyethylene
Empty Bed Volume 1.0 cubic feet 28.3 liters
Media Type Non-Solvent, High Capacity Cation Resin
Media Volume (per tank) 0.6 cubic feet 17 liters
Free Board None
Riser Tube 1.05" ABS 27 mm ABS
Distributor Upper 0.012" Slots, Cone Type 0.30 mm Slots, Cone Type
Distributor Lower 0.012" Slots, Cone Type 0.30 mm Slots, Cone Type
Regeneration Control Volumetric
Service Flow Upflow
Regeneration Flow Downflow
Regeneration Type Countercurrent
Hard Water By-pass During Regeneration Automatic
Water Used for Regeneration Inlet Water, Unprocessed
Water Used for Brine Tank Fill Softened
Salt Capacity (Pellet) 18" x 35" Brine Drum 200 lb 90.7 kg
System By-pass Optional
Connections
Inlet / Outlet Connections Custom Adapter and Bracket
Drain Connection 0.5" Quick Connect Tubing
Brine Line Connection 0.375" Quick Connect Tubing
Brine Tank Overflow 0.5" Tubing Barb
Power None
System Part Number
Essential Platinum 15210
Essential Platinum, No Brine Drum 15195
Dimensions and Weight
Height 41.25" 1,048 mm
Width 9" 229 mm
Depth 9" 229 mm
Shipping Weight 60 lb 27.2 kg
Operating Weight 300 lb 136.1 kg
Regeneration Specifications at 35 psi
Oine Time During Regeneration Cycle 13.5 minutes
Total Regeneration Cycle Time 15 minutes
Total Regeneration Volume 9.5 gallons 36 liters
Salt Used per Regeneration 1.25 lb 0.57 kg
Salt Dose 2.1 lb / cu ft3 33.7 grams NaCl/liter resin
System Capacity 5,000 grains 324 grams
Backwash Flow Rate 2.5 gpm 9.5 Lpm
9” / 229 mm
41.25” / 1,048 mm
