Valve Assembly

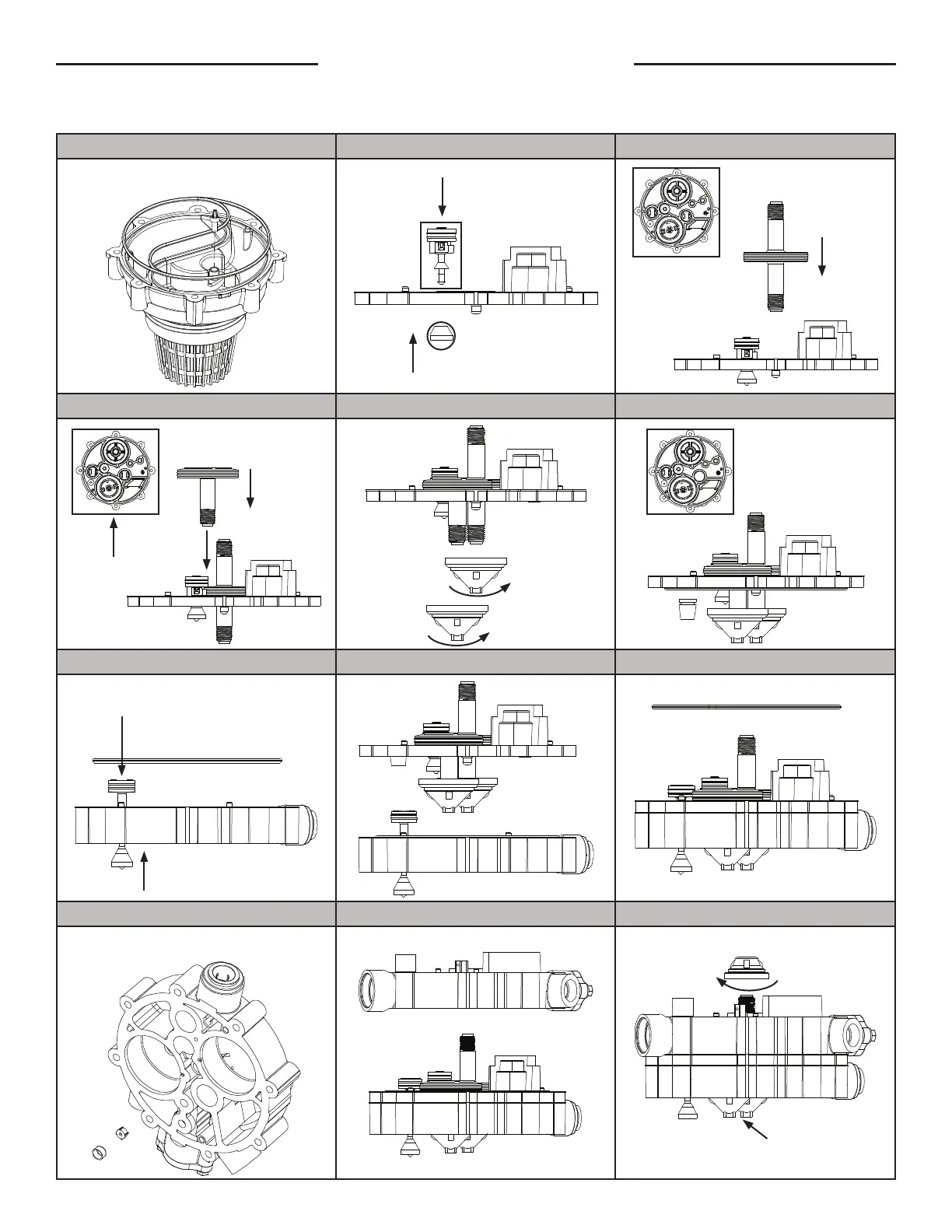

1. Place level 6 seal on level 6 2. Connect control valve to level 4 3. Insert unitary piston into level 4
Place in check stem
Push
Push
4. Insert outlet piston into level 4 5. Add seats to inlet and outlet valves 6. Insert BWFC into level 4
Outlet Position
Push
Screw
7. Place level 5 seal on level 5 8. Place level 4 subassembly on level 5 9. Place level 4 seal on level
Drain valve
10. Insert regen flow control into level 11. Place level 3 on level 4/5 12. Add by-pass seat
Concave side is installed down. Then install
filter disc.
Hold
Screw
